GE Profile PT7050SFSS Dimensions And Installation Information page 2

PT7050SF
GE Profile Series 30 in. Built-In Single Convection Wall Oven
™

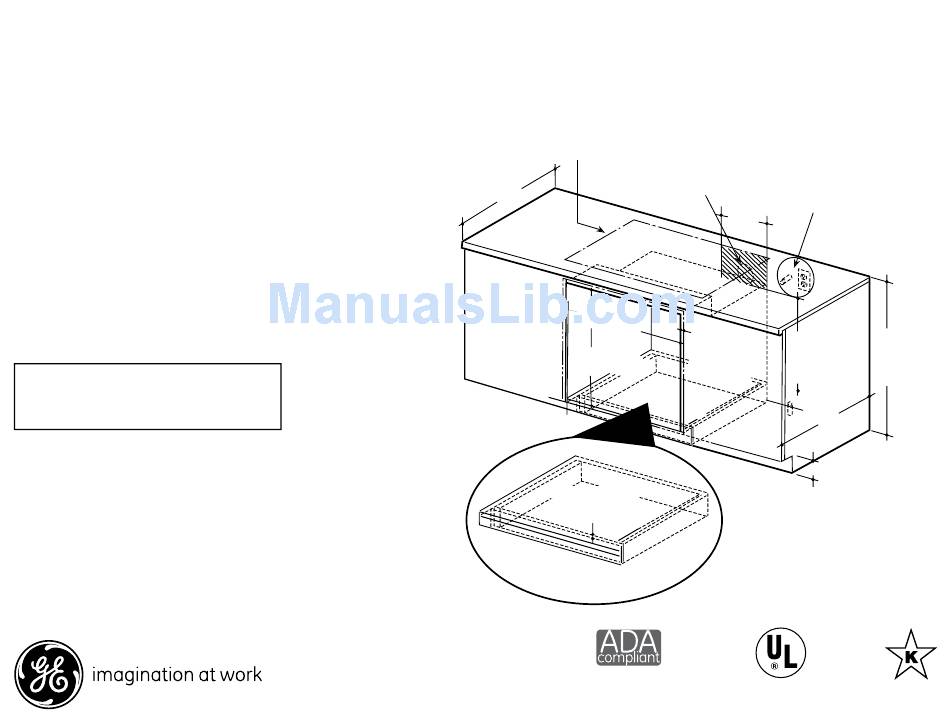

Optional Undercounter Dimensions and Installation Information
Note: 36" ribbon cooktop are approved for use
over GE 30" single wall ovens and warming
drawers. 30" ribbon cooktops are approved
for use over 30" and GE 27" single wall ovens
and warming drawers. Refer to cooktop and
wall oven installation information packed with
products for current dimensional data.
Note: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference
with the handle.
Installation information: Before installing,
consult installation instructions packed with
products for current dimensional data and for
alternate installation options.
Electric wall ovens are not approved for
installation with a plug and receptacle. They
must be hard wired in accordance with
installation instructions.
Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout size.
See label on top of oven for approved cooktop models.
For answers to your Monogram
®
questions, visit our website at geappliances.com
or call GE Answer Center service, 800.626.2000.
®
Dimension and installation information are shown in inches.
25
28 1/2" MIN.
28 5/8" MAX.
27 1/4" MIN.
27 5/16" MAX.
3/4" Support
platform required
Must Support 200 Lbs.
*
or GE appliance
Gas or electric connections
240V / 208V
for gas cooktop must be
Junction box
located in an adjacent
location
accessible location to the right
9-1/2"
Allow 1-1/4"
22" MIN.
top/bottom and
Above
1" on sides for
support
overlap
platform
24
4 "
* ADA qualified based
Listed by
on Uniform Federal
Underwriters
Accessibility Standards
Laboratories
Specification Revised 4/13
36"
Typical
countertop
height
220252
