1.2.8

Onboard LEDs

1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any

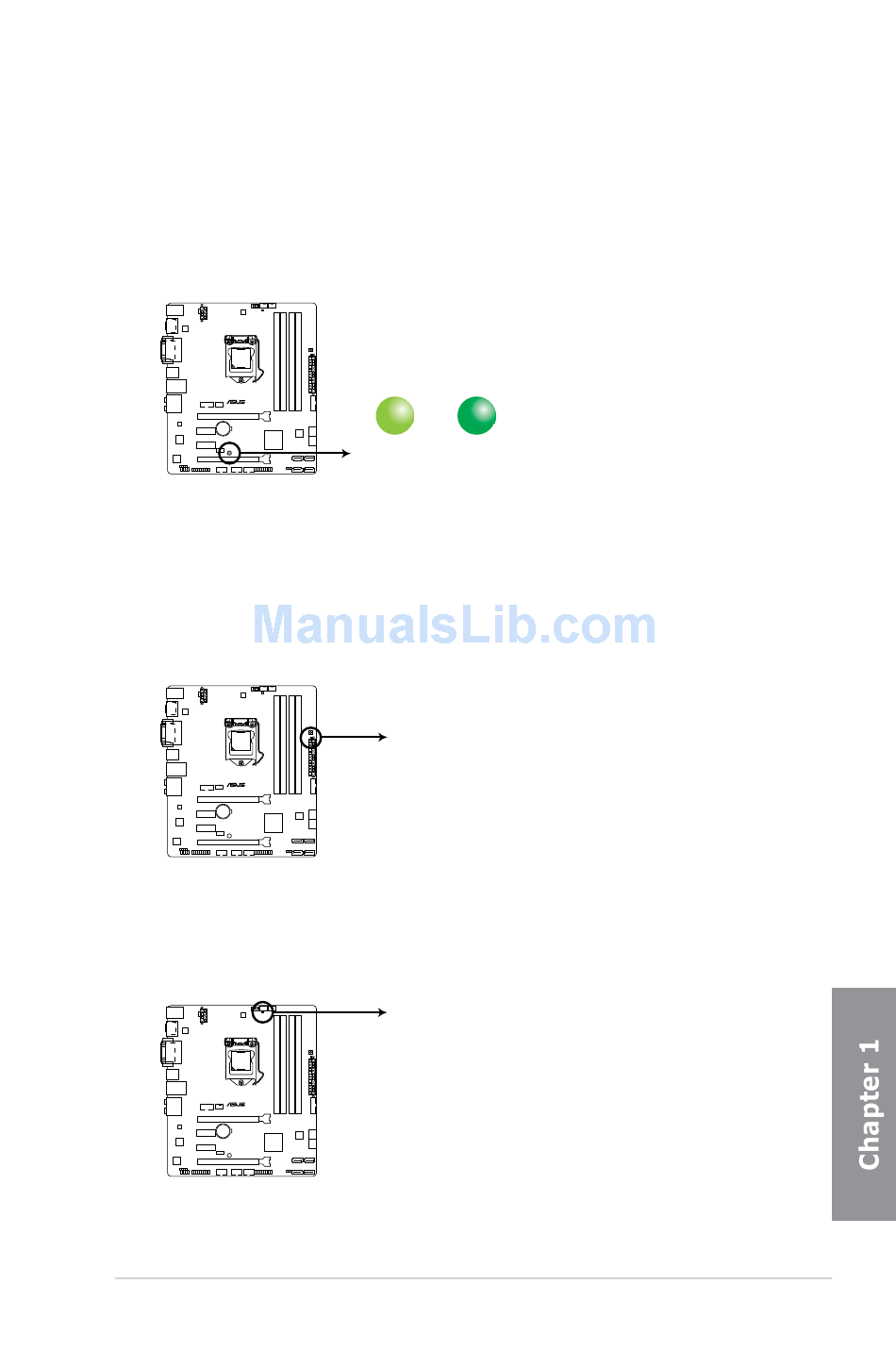

motherboard component. The illustration below shows the location of the onboard LED.
Z87M-PLUS
Z87M-PLUS Onboard LED
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.
Z87M-PLUS
Z87M-PLUS DRAM LED
3. GPU Boost LED
The GPU Boost LED lights up when the GPU Boost switch is enabled.
Z87M-PLUS
Z87M-PLUS GPU Boost LED
ASUS Z87M-PLUS
SB_PWR
ON OFF
Standby Power Powered Off
DRAM LED
GPU_LED
1-21
