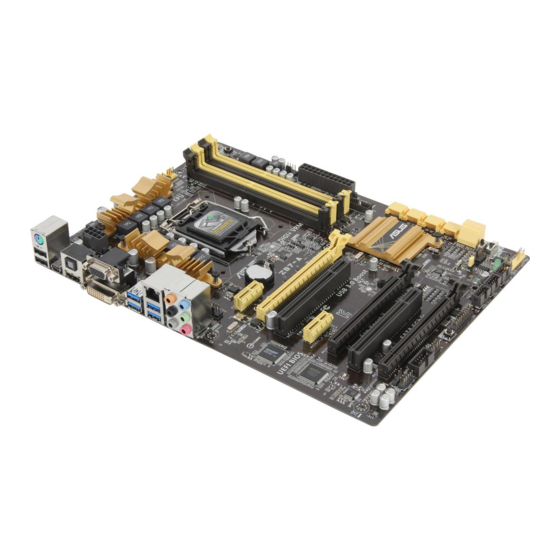

Asus Z87-A Manual

Hide thumbs Also See for Z87-A:

Advertisement

Quick Links

Download this manual
Z87-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z87-A and is the answer not in the manual?

Questions and answers

Related Manuals for Asus Z87-A

Summary of Contents for Asus Z87-A

  • Page 1 Z87-A...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Safety information ...................... iv About this guide ......................iv Z87-A specifications summary ................. vi Chapter 1: Product introduction Before you proceed ................... 1-1 Motherboard overview ................1-2 Central Processing Unit (CPU) ..............1-4 System memory ..................1-8 Expansion slots..................1-22 Onboard buttons ..................

  • Page 4: Safety Information

    Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
  • Page 5 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer.

  • Page 6: Z87-A Specifications Summary

    Z87-A specifications summary LGA1150 socket for the 4th Generation Intel Core™ i7/Intel Core™i5/ ® ® Intel Core™ i3, Pentium and Celeron processors ® ® ® Supports 22nm CPU Supports Intel Turbo Boost Technology 2.0* ® * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
  • Page 7 - ASUS EZ Flash 2 ASUS Q-Design - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector* * The 1 x 2-in-1 ASUS Q-Connector kit is for retailer version only. (continues on the next page)
  • Page 8 SFS (Stepless Frequency Selection) � BCLK/PCI� frequency tuning from 8���z up to �����z at �.1��z increment Overclocking Protection - ASUS C.P.R. (CPU Parameter Recall) Rear Panel I/O Ports 1 x PS/2 Keyboard/mouse combo port 1 x Mini DisplayPort 1 x HDMI port...
  • Page 9 1 x ASUS SLI bridge connector* ASUS I/O shield 2 in 1 Q-connector** User’s manual * (Optional) SLI bridge connector is only available for the standard Z87-A edition. ** The 1 x 2-in-1 ASUS Q-Connector kit is for retailer version only. Support DVD Drivers...

  • Page 11: Chapter 1: Product Introduction

    Chapter 1 Product introduction Chapter 1: Product introduction Thank you for buying an ASUS Z87-A motherboard! ® Before you start installing the motherboard, and hardware devices on it, check the items in your motherboard package. Refer to the specification list on page ix for the list of accessories.

  • Page 12: Motherboard Overview

    Screw holes Place eight screws into the holes indicated by circles to secure the motherboard to the chassis. Do not overtighten the screws! Doing so can damage the motherboard. Place this side towards the rear of the chassis ASUS Z87-A...
  • Page 13 1.2.3 Motherboard layout Chapter 1: Product introduction...

  • Page 14: Central Processing Unit (Cpu)

    The motherboard comes with a surface mount LGA1150 socket designed for the 4th generation Intel Core™ i7 / Intel Core™ i5 / Intel Core™ i3, Pentium and Celeron ® ® ® ® ® processors. . Ensure that all power cables are unplugged before installing the CPU. ASUS Z87-A...
  • Page 15 Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/ transit-related.
  • Page 16 Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan, if necessary. ASUS Z87-A...
  • Page 17 1.3.2 Installing the CPU heatsink and fan To install the CPU heatsink and fan assembly To uninstall the CPU heatsink and fan assembly Chapter 1: Product introduction...

  • Page 18: System Memory

    A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR or DDR2 memory module to the DDR3 slot. Recommended memory configurations Install one memory module in slot A2 first as a single�channel operation. ASUS Z87-A...
  • Page 19 1.4.2 Memory configurations You may install 2GB, 4GB and 8GB unbuffered and non-ECC DDR3 DIMMs into the DIMM sockets. • You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower�sized channel for the dual�channel configuration. Any excess memory from the higher�sized channel is then mapped for single�channel operation.
  • Page 20 Z87-A Motherboard Qualified Vendors Lists (QVL) DDR3 2800(O.C.) MHz capability Vendors Part No. Size Chip Chip Timing Voltage DIMM socket Brand support (Optional) G.SKILL F3-2800C11Q-16GTXD(XMP) 16GB (4x4GB) 11-13-13-35 1.65 • • • G.SKILL F3-2800C12Q-32GTXD(XMP) 32GB (4x8GB) 12-13-13-35 1.65 • •...
