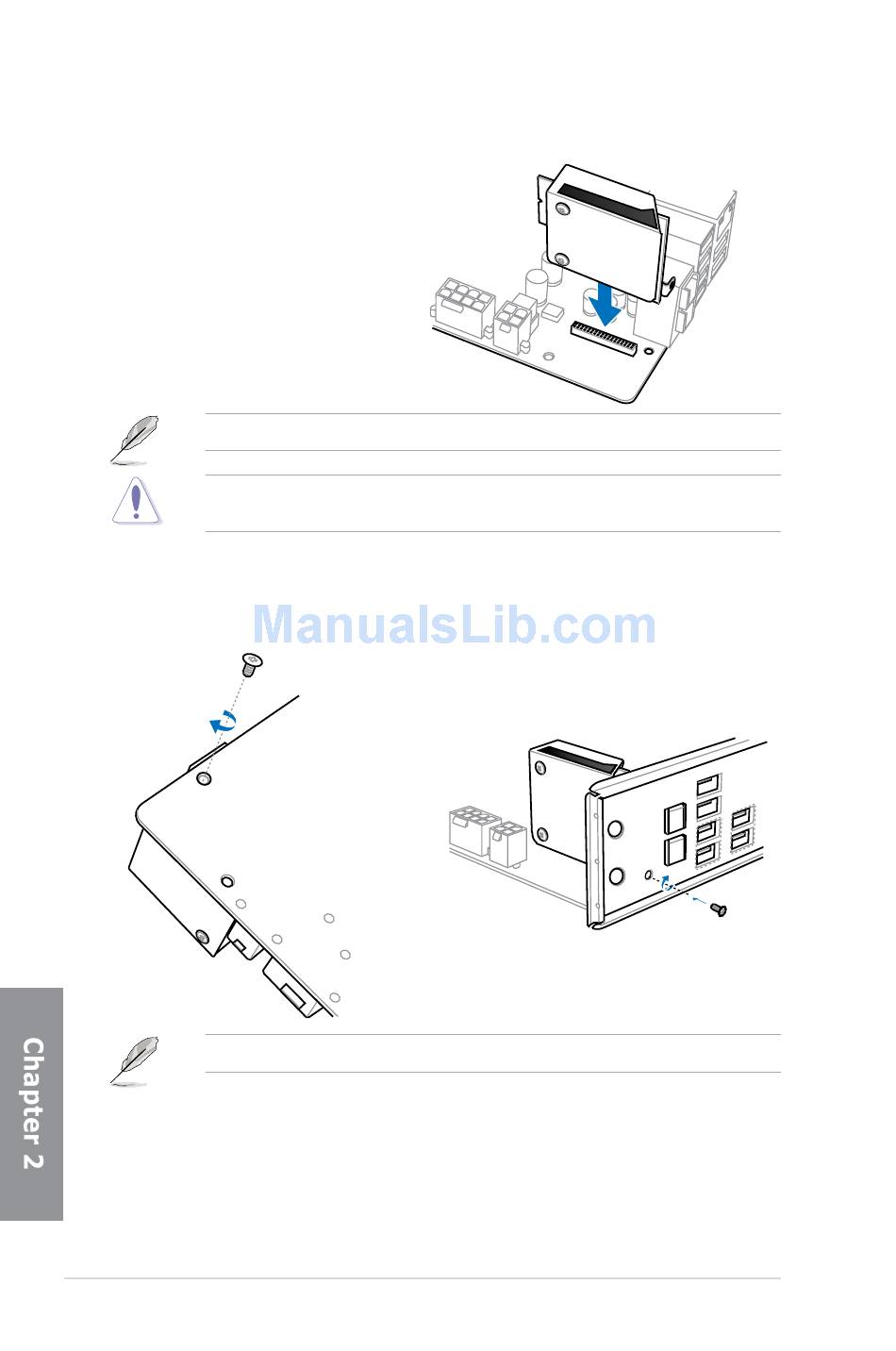

2.
Locate the MPCIE_COMBO_II
connector on the motherboard then
align and insert the mPCIe Combo
II card to the MPCIE_COMBO_II
connector.
The mPCIe Combo II fits in one orientation only.
Insert the mPCIe Combo II carefully to prevent damage to the card, connector pins, or to
the motherboard.
3.
Secure the mPCIe Combo II card either to the motherboard or the rear I/O shield using
the black screw that you removed in step 1.
The motherboard layout varies with models.
2-16
OR
Chapter 2: Basic Installation
