INSTALLING YOUR VCR

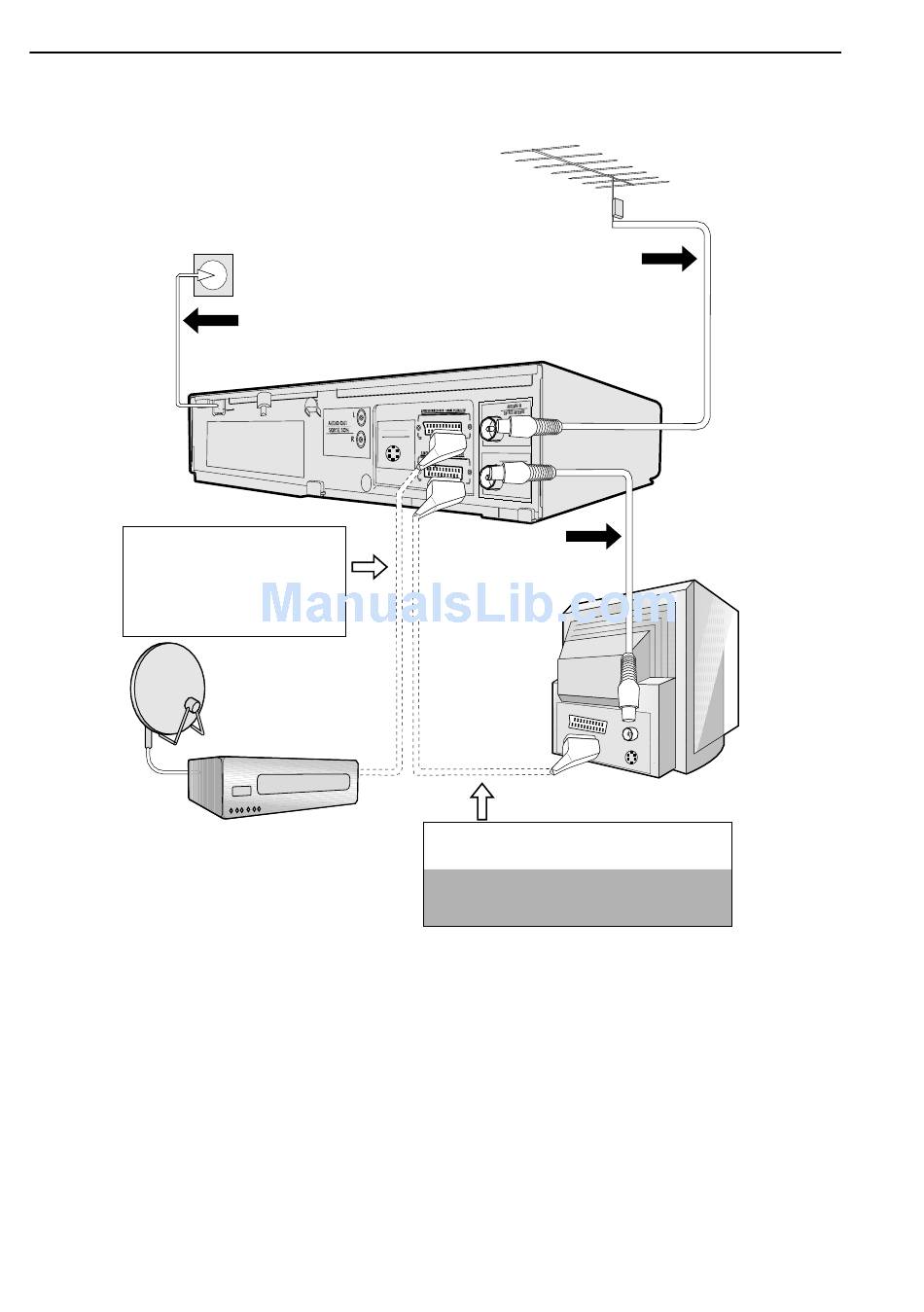

CONNECTING THE VCR TO THE TV, AERIAL AND
SATELLITE RECEIVER
Optional:
Satellite receiver or decoder to
the VCR using a scart lead to
LINE 2 IN/DECODER
socket on the VCR.
DECODER UNIT
OR SATELLITE SYSTEM
• Do not connect a SCART lead if you wish to tune the VCR RF channel, depending on your
TV (refer to your TV operation manual).
• To obtain stereo sound output, connect your stereo TV to the AUDIO OUT terminals using
audio phono leads or to the LINE 1 IN/OUT terminal using SCART leads as shown.
• Sound from RF OUT terminal is MONO only.
• If your TV has more than 1 SCART socket, refer to your TV operation manual for correct
SCART connection to the VCR.
• For NEXTVIEW LINK operation, a fully wired scart cable must be used.
If problems persist contact the SHARP Helpline on tel: 08705-274277 (office hours)
3
Connect the VCR to the
mains
G
S-VIDEO OUT
SORTIE SON S-VIDEO
D
Connect your
✔
The VCR is correctly connected
or www.sharp.co.uk/support
Connect your existing aerial
cable to the ANTENNA IN socket
on your VCR.
RF OUT
SORTIE ANTENNE
2
Connect your TV
to the VCR using
the supplied RF
connection cable,
i.e. connect the
VCR RF OUT
socket to the TV
AERIAL IN
socket.
Optional
SCART (not supplied). If you
have a scart lead connect it to your TV and
LINE 1 IN/OUT socket on the VCR.
- The advantage of a Scart connection is
improved picture and sound quality during
playback.
4
AERIAL OR
CATV CABLE
1
BACK OF
TELEVISION
