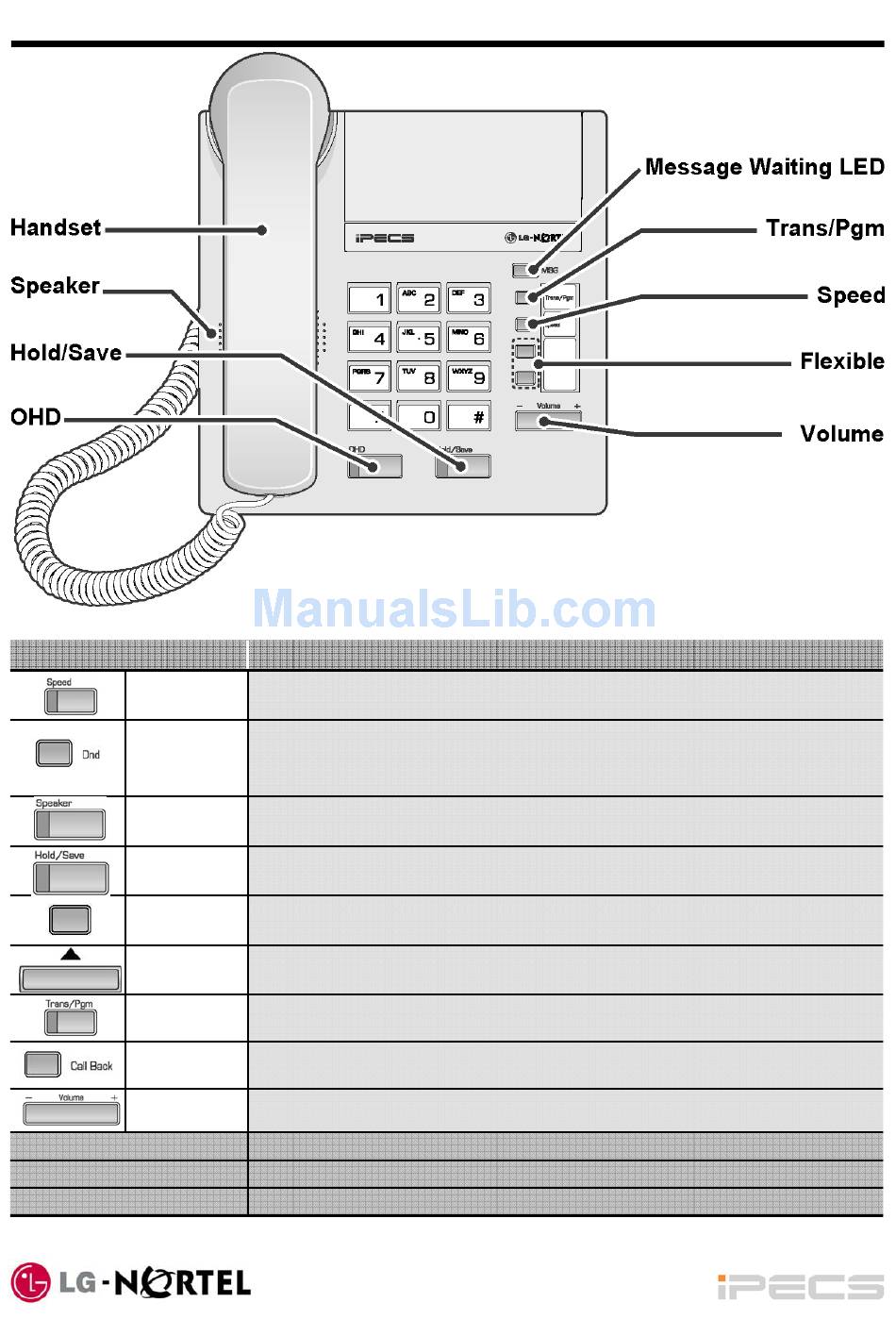

LIP-7004N IP Telephone Description
Fixed Feature button definition
Button
Speed
DND
Speaker
Hold/Save
Flexible
3 Soft
Buttons
Trans/PGM
Call back
Volume
Earphone-Jack Socket
Visual Ringing LED
Hands-free Microphone
Used to access speed dialing, speed programming, save number redial, and last
number redial.
The DND (Do Not Disturb) feature blocks all incoming calls. When DND is active,
the red LED in this button is illuminated.
It is also used to activate call forward, e.g. to another station or voicemail. When
call forward is activated, the red LED flashes.
Speaker toggles the speakerphone state, and the red LED is illuminated when
the speakerphone is active.
This button is used to put a call on hold or save information when programming.
Some flexible buttons are pre-programmed in the system for line appearances,
loop functions etc. The remaining flexible buttons can be user-programmed.
Used in conjunction with fixed and flexible features, and the function changes in
relation to call progress, as indicated on the LCD display.
This button is used to initiate a call transfer (TRS) or to enter programming mode
(PGM)
A station can initiate a call back request to a busy station. Once that station
becomes idle, the initiating station is signaled.
The volume button adjusts the audio levels for ringing, handset and
speakerphone functions.
Used to connect optional headset to the phone.
Illuminates when the phone is ringing.
Microphone is used for hands-free speakerphone function.
