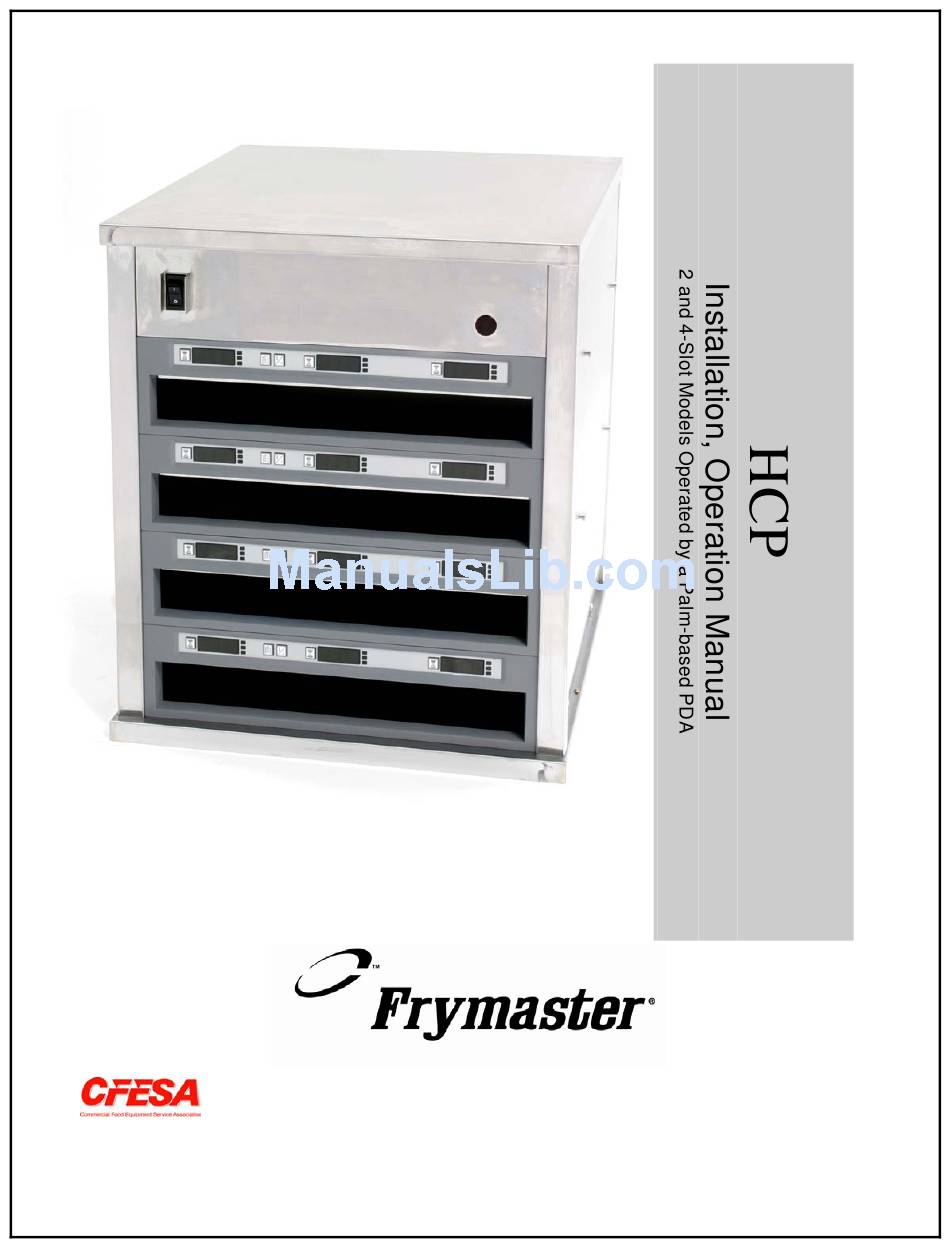

Frymaster HCP Installation & Operation Manual

Frymaster HCP Installation & Operation Manual

2 and 4-slot models operated by a palm-based pda
Hide thumbs Also See for HCP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
Price: $6.00
*8196213*
24-Hour Service Hotline 1-800-551-8633
819-6213
DEC 06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCP and is the answer not in the manual?

Questions and answers

Related Manuals for Frymaster HCP

Summary of Contents for Frymaster HCP

  • Page 1 Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. Price: $6.00 *8196213* 24-Hour Service Hotline 1-800-551-8633 819-6213 DEC 06...
  • Page 2 THE HCP IS NOT SUITABLE FOR OUTDOOR USE. WHEN OPERATING THIS UNIT, IT MUST BE PLACED ON A HORIZONTAL SURFACE. THE HCP IS NOT SUITABLE FOR INSTALLATION IN AN AREA WHERE A WATER JET CAN BE USED. THIS APPLIANCE MUST NOT BE CLEANED WITH A WATER JET.

  • Page 3: Table Of Contents

    Table of Contents Installation, Warranty, Parts HCP Software Quick Start Power Up Operational Overview Programming Overview Entering Passwords Adding Menu Items Programming Changing from 4 to 2-Slot Operation Moving Products from Food Library to Menus Setting up Cabinet on Palm...

  • Page 4: Warranty Statement

    1 HCP The Frymaster HCP is a short-term holding device to extend the freshness of a wide variety of cooked products. 1.1 Warranty Statement A. Frymaster L.L.C. makes the following limited warranties to the original purchaser only for this equipment and replacement parts: 1.1.1 Warranty Provisions –...
  • Page 5 Parts orders may be placed directly with your local Frymaster Factory Authorized Service Center (FASC)/Distributor. A list of Frymaster FASC/Distributors was included with the cabinet when shipped from the factory. If you do not have access to this list, please contact the Frymaster Service Department at 1-800-551-8633 or 1-318-865-1711.

  • Page 6: Hcp Software Quick Start

    Follow these steps to begin working with the HCP software: Turn the Palm Pilot On and tap the HCP icon on the Palm display. See Section 5. Tap the Key icon in the top menu bar of the software.

  • Page 7: Power Up

    PROPERLY GROUNDED THREE-PRONG RECEPTACLE. DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THIS PLUG. B. Plug the HCP into the power source. C. Place the power switch in the ON position. approximately 2 seconds after the power switch is activated.

  • Page 8: Operational Overview

    4 Operational Overview The HCP is available in two and four-slot models. Each slot has a controller, which indicates product and holding time for each of three tray positions within a slot. The controller has a timer button for each tray position, a menu button and a temperature display button. Individual buttons are annotated below.

  • Page 9: Cabinet Operation

    4.1 Cabinet Operation 1. Turn the power switch ON. 2. The displays will light and show LOW TEMP. 3. Press the Menu key to scroll to the desired menu, release the key and immediately press the Temperature key. The chosen menu is locked in. Menu or other setting changes require a Palm Pilot PDA and related software.

  • Page 10: Temperature Display

    4.4 Turning Slots OFF Press the Menu key on a slot until Slot Off is displayed. Release the key and immediately press the Temperature key; the choice is locked in. 4.5 Temperature Display Press the Temperature key four times and the temperatures and setpoints will be displayed in this sequence: •...
  • Page 11 4.6.4 Rise-Time Alarm A rise-time alarm indicates the slot temperature failed to reach operating temperature within a preset time after start up. The displayed message is Slot Rise Rate. An audible alarm sounds. Press a timer key to turn off the audible alarm. Service is required to correct a rise-time alarm.

  • Page 12: Programming Overview

    Palm Pilot then beamed into the HCP. Below is an annotated look at the main HCP screens on a Palm Pilot. Programming and use are covered in Chapters 5 and 6. See the Palm Pilot manual for a description of its operation.
  • Page 13 Menu bar Tapping View produces a pull-down menu of selections. In many cases these items access features also accessible with buttons on the software interface. Cabinet, which is not accessible otherwise, opens a menu for changing the setup of the cabinet from two to four slots.
  • Page 14 Indicates menu on the Palm from which food items are being selected. It will also be the name of the cabinet configuration beamed to the HCP. This is the preset icon and is tapped to gain access to stored cabinet configurations.
  • Page 15 Food Library and changing the temperature display require a password. Tap the Key icon in the top center of the HCP software. Upper arrow in Figure 1. The Security Manager screen appears. Tap the abc icon in the bottom left of the screen. Lower arrow in Figure 1.
  • Page 16 5.2 Entering Menu Items Step 1: Enter a password as described in section 5.1. Menu items are added by clicking the add button in the Food Library window. See arrow. Step 4: Tap on the line next to the abbreviated name. Then tap on the abc icon in the corner of the Palm window (see arrow).
  • Page 17 Tap OK and the new item is stored in the Food Library and can be moved to a menu for transfer to the HCP. 5.3 Changing Menu Name/Deleting Menus Step 1: Go to the menu window by clicking the Menu…...

  • Page 18: Programming

    The new items, along with existing products, are stored in the Food Library, where they can be moved to the Menu and beamed into the HCP cabinet. The configurations established in the Palm Pilot are beamed into the HCP cabinet’s lens. See figure 2.
  • Page 19 HCP cabinet. The item also remains in the Food Library. Step 2: A graphic of the HCP cabinet is displayed Note: Graphics used in these instructions reflect the full-size 4-slot cabinet. Programming a...
  • Page 20 Step 5: The cabinet should now be configured for all five menus. Step 6: Ensure the receiving lens on the front of the HCP cabinet is clean. Hold the Palm Pilot parallel with the floor and aim it at the lens from no more than one foot away.

  • Page 21: Saving Cabinets

    Palm Pilot. These configurations, reflecting daily, weekend and special menu setups for all five of the menus retained in the HCP cabinet, can be recalled and beamed into multiple HCP cabinets. This feature is useful to retain cabinet configurations for different stores and specials.

  • Page 22: Loading Saved Cabinets

    Step 4: Click in the desired field on the dialog box and click on the abc icon at the bottom left (see arrow) to display a keyboard for name and description entry. 7.2 Loading Saved Cabinets Step 1: From the menu screen, click the i icon.
  • Page 23 7.3 Deleting Saved Cabinets Step 1: From the menu screen, click the i icon. Step 4: The highlighted cabinet is removed from the saved cabinet list. Click cancel to leave the Saved Cabinet dialog box. Highlight and load a saved cabinet, if desired, by highlighting the name and clicking Open.

  • Page 24: Fahrenheit To Celsius

    8 Fahrenheit to Celsius A password must be entered to change the temperature display. See Password Access in Chapter 5. The temperature display is accessed from the Language button on the Setup Screen. See figure 1. The temperature change takes place immediately after selection.

  • Page 25: Uploading Cabinet Configurations And Daily Activity To Palm

    Palm each day prior to turning the cabinet off. This can be done at anytime. Also, the cabinet prompts for the data to be uploaded when the HCP is put in the clean mode. See Page 4-2. A cabinet’s configuration can also be downloaded to the Palm.

  • Page 26: Loading Software For The Palm

    A Palm Pilot loaded with the HCP software is available from Frymaster as an accessory (Part # 106- 6658). HCP software, which can be loaded on a Palm PDA is a on a CD. A Palm operating system of 4.0 or higher is required to operate the software. See the Palm manual for instructions on installing, operating and deleting software from the Palm.

  • Page 27: Loading Software On Palm

    4.0 or higher is attached to the computer. Some familiarity with the Palm desktop software is also necessary. See the Palm manual for instructions on installing, operating and deleting software from the Palm. Failed or outmoded HCP software must be removed from the Palm Pilot before new HCP software can be installed.
  • Page 28 Hold down the control key and single-click all files in the folder with a HCP prefix. Click Open. Step 9: A new Install Tool dialog box will be displayed, saying the files will be installed when a HotSync is performed.
  • Page 29 NOTE: On some Palms with older operating systems, it may be necessary to beam the software with the HCP program open. With the Palm Pilots arranged as described in Step 1 above and the HCP software displayed, follow these steps: •...
  • Page 30 Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 FAX (Tech Support) 1-318-219-7135 Price: $6.00 SERVICE HOTLINE 819-6213 PRINTED IN THE UNITED STATES 1-800-551-8633 DEC 06...
