FRYERS
Frymaster
Fryer
Electric and Gas models using an M2000 Computer
Weekly maintenance task
FR 2 W1
Clean area behind
fryers
Bi-weekly maintenance task
FR 2 B1
Calibrate fryer
Monthly maintenance task
FR 2 M1
Calibrate fryer
recovery time
Quarterly maintenance tasks
FR 2 Q1
Boil out fry vats
(electric fryers
only)
FR 2 Q2
Verify high-limit
controls
FR 2 Q3
Replace filter o-
rings
Semi-annual maintenance task
FR 2 S1
Boil out fry vats
(gas fryers only)
Annual maintenance task
FR 2 A1-T
Service inspection
(Gas fryers only)
FR 2 A2-T
Service inspection
(Electric fryers only)
FEB 2010
*8196566*

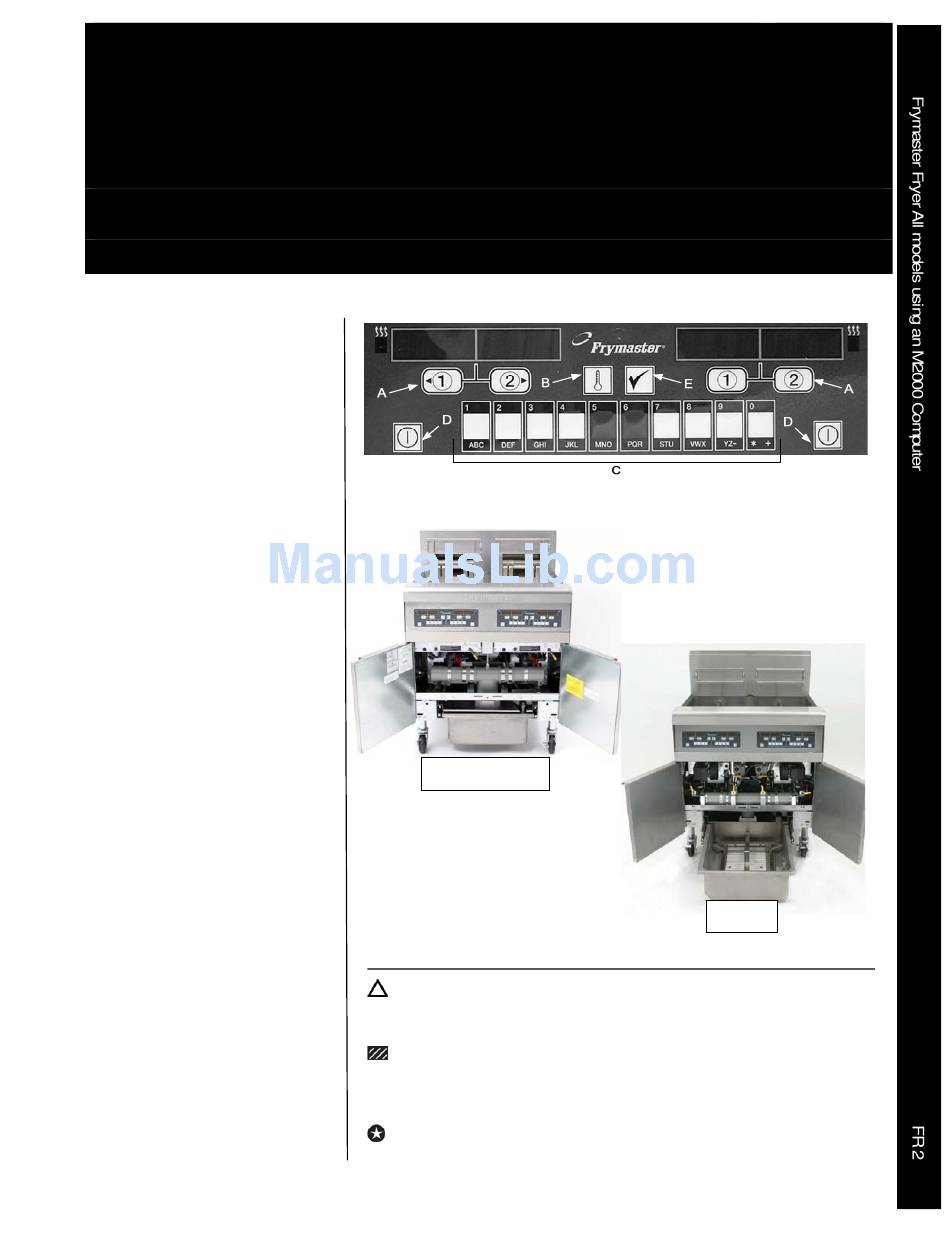

Computer model M2000
A. Cook cycle buttons, B. Temp button, C. Product Buttons, D. ON/OFF, E. Programming button
ELECTRIC
Hazards
These icons alert you to a possible risk of personal injury.
Equipment alerts
Look for this icon to find information about how to avoid damaging the
equipment while doing a procedure.
Tips
Look for this icon to find helpful tips about how to do a procedure.
©McDonald's Corporation · Planned Maintenance Manual · Revised June 2008
FR 2
GAS
