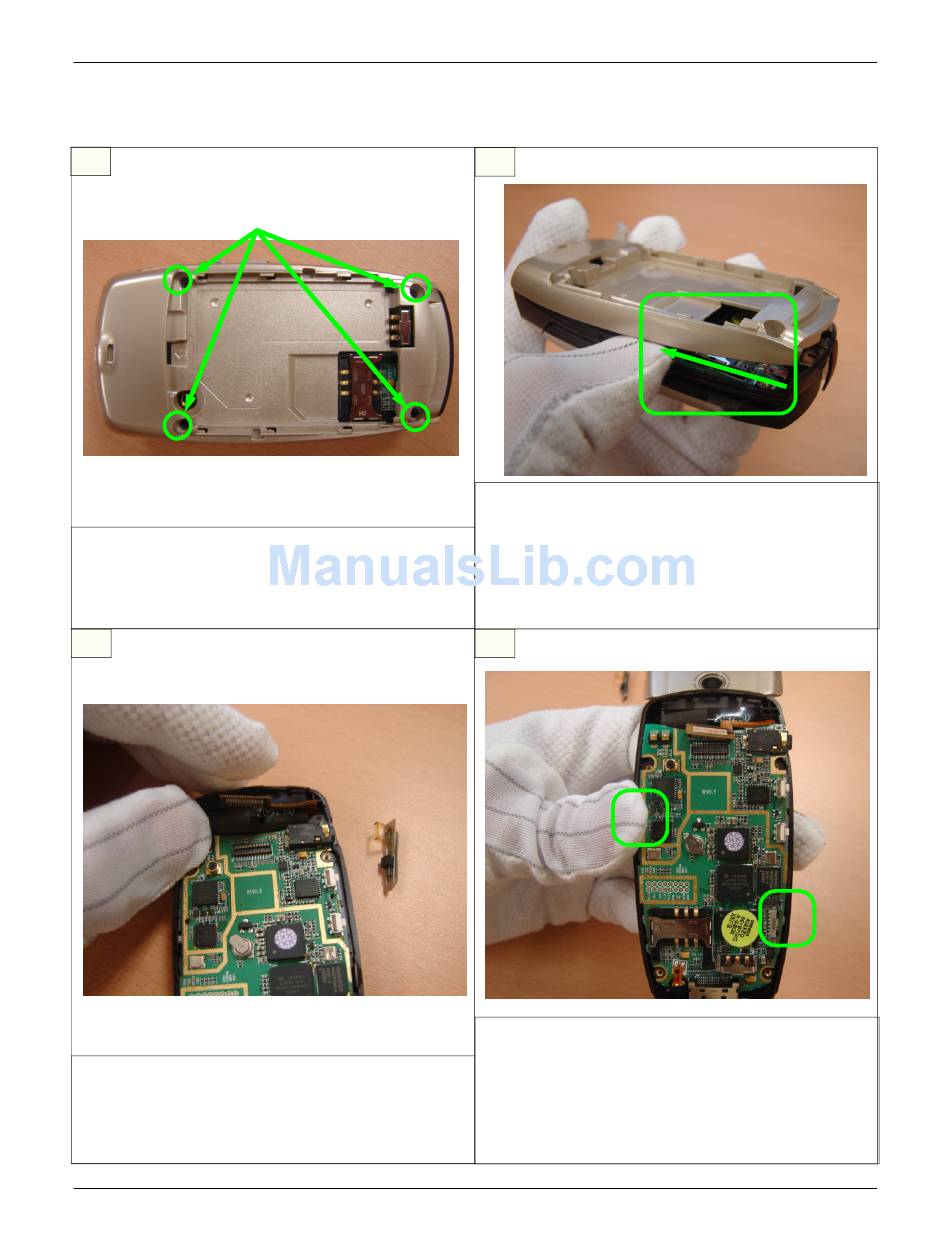

5-3. Disassembly
1
1) Unscrew 4point in the rear case
※ caution
1) Be care of Shooting out damage and scratch
not to occur.
3
1) Remove the Volume key.
2) Disconnect the LCD connector.
※ caution
1) During disconnecting the LCD connector, pay
attention not to tear the FPCB.
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
2
1) Disjoint from left lower part to upper part for
rear case
※ caution
1) When you disjoint a rear case, be care of
Shooting out damage and scratch not to occur.
2) It should be disjointed for rear case after Ear-
jack cover be opened
4
1) Open the folder.
2) While pressing the Locker of left and right side
of Front case with your finger, disjoint the PBA.
※ caution
1) Pay attention not to damage PAB & Front
locker.
5-4
Exploded View and Parts List
