Installation Of The Seat For The 0 And 0+ Groups; Installation Of The Seat For Weight Group 1 - Alfa Romeo 156 Owner's Manual

Installation of the seat for
the 0 and 0+ groups

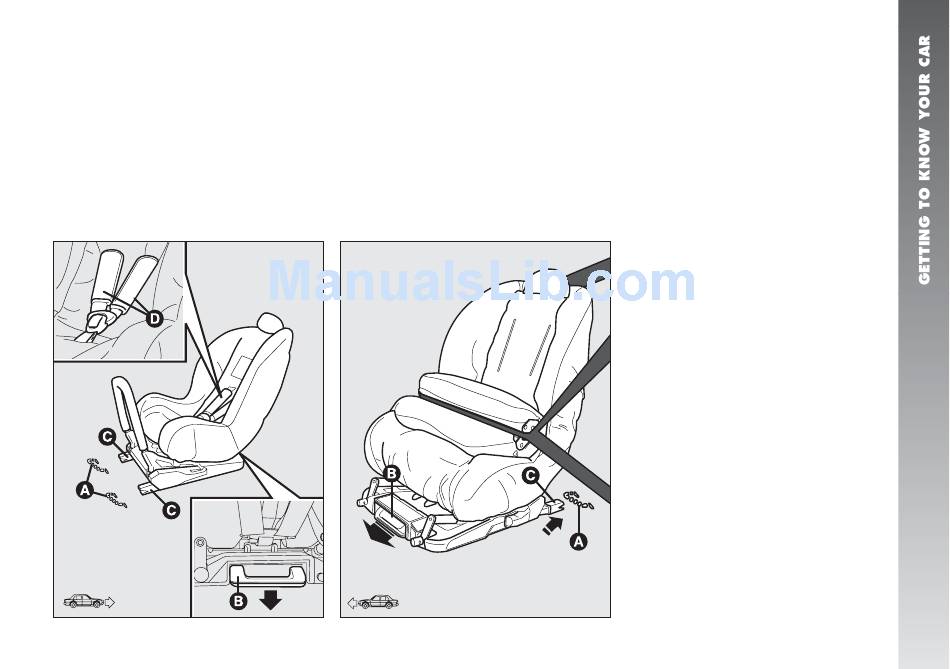

For children of the 0, 0+ weight group,
the child's seat is facing backwards (babies
up to 13 kg) and the child is restrained by
the child's seat belts (D-fig. 61).
fig. 61
For proper installation proceed as follows:
– check whether the release lever (B-
fig. 61) is at rest position (inward)
– find the presetting brackets (A), then
position the child's seat with the fastening
devices (C) aligned with the brackets
– push the child restraint system until hear-
ing the locking clicks.
A0B0400m
fig. 62
As the child grows up, passing to weight
group 1 the child's seat should be mounted
facing forwards (running direction).
Installation of the seat for
weight group 1
For proper installation proceed as follows:
– check whether the release lever (B-
fig. 62) is at rest position (inward);
– find the presetting brackets (A), then
A0B0401m
position the child's seat with the fastening
devices (C) aligned with the brackets;
– push the child restraint system until hear-
ing the locking clicks.
If the Isofix type seat is positioned facing
backwards, the passenger's seat must be
positioned completely back until touching
the child's seat back.
41
