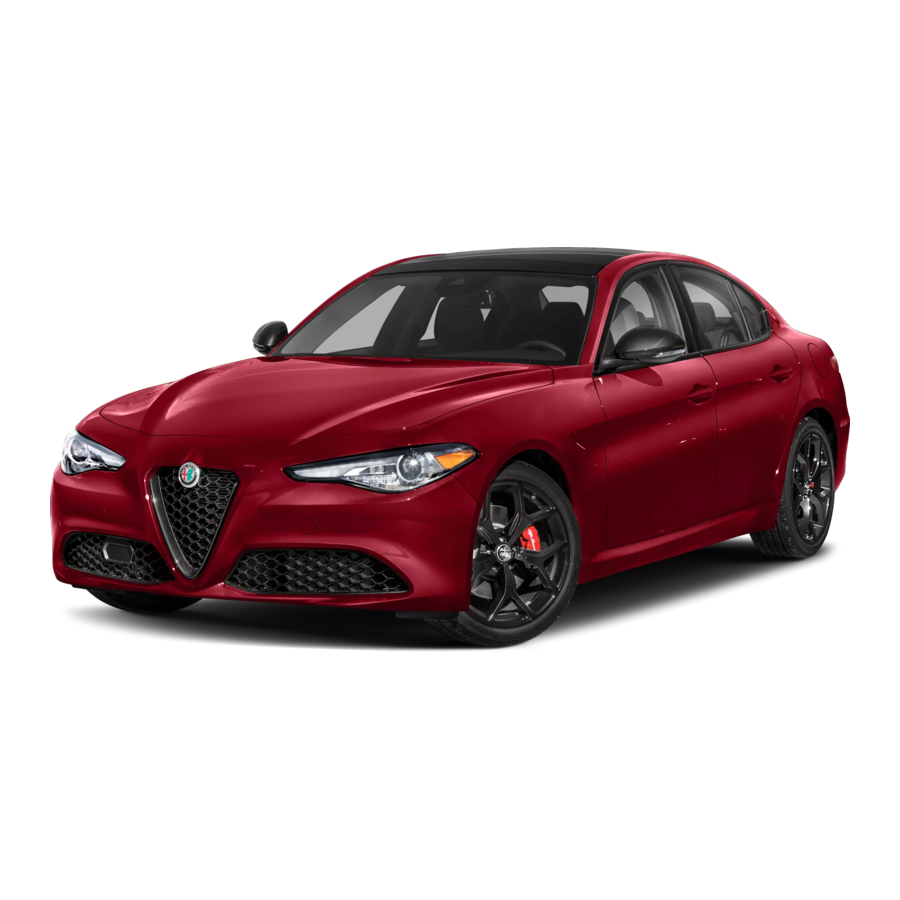

Alfa Romeo GIULIA 2020 Manual

CHILD RESTRAINTS

The recommendation of the ISO child (restraints) seats to be used with the vehicle in the main Owner Handbook complies with AS/NZS 1754-2013.

CHILD RESTRAINT INSTALLATION

Your vehicle has been designed to accommodate child restraints on the rearmost seats.
When using a child restraint, read the Installation Instructions supplied with the child restraint and follow the directions for fitment carefully.
Fasten the upper belt (that is supplied together with the child seat) to the special mountings 1 fig. 1 or fig. 2 located behind the seat headrest.

Quadrifoglio Version

INSTALLATION OF THE ATTACHING CLIP

Correct engagement of the child restraint attaching clip 1 fig. 3 is achieved by depressing the retainer spring 2 and then passing through the opening of the anchor fitting 3 as shown in the illustration.

When installing a child restraint ensure that the head restraint is raised and the tether strap (where relevant) is placed directly underneath the head restraint and on the upper back portion of the seat.
Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle.

SUPPLEMENTARY RESTRAINT SYSTEM (SRS) – AIRBAG

FRONT AIRBAGS

Passenger side front airbag
On this vehicle model it is not possible to disable the passenger Front Airbag.

Passenger side front airbag and child restraint systems

NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.

HAS (Highway Assist) SYSTEM

(where provided)

The system may not be available on all road types.
The capability of the HAS system, according to the type of route, may be reduced because of the shape of some roads, even if they are classified as motorways.

TJA (Traffic Jam Assist) SYSTEM

(where provided)

The system may not be available on all road types.
The capability of the TJA system may not be very effective due to slow speed on some extra-urban roads.

TYRES

In the label fig. 5 shows the type of tyre adopted and the required inflation pressure.
Refer to the Technical Specifications chapter for further information.

FUEL TYPE

PETROL ENGINES
Only use unleaded petrol with a number of octanes (R.O.N.) not lower than 95 (EN228 specification).

FOR 2.9 V6 QUADRIFOGLIO
To comply with all emission limits while simultaneously guaranteeing minimal consumption and maximum performance, use premium-quality unleaded petrol with an octane rating (R.O.N.) of 98 or higher.

DIESEL ENGINES
Only use Diesel for motor vehicles (EN590 specification).

TECHNICAL DATA

WEIGHTS

(°) Automatic transmission
(*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

PERFORMANCE

FUEL CONSUMPTION¹ (litres/100 km)

CO₂ EMISSIONS¹

(1) Fuel consumption figures are according to Australian Design Rule (ADR) 81/02. Driving style, road and traffic conditions, fitment of accessories, environmental influences and vehicle condition can lead to consumption figures which may differ from those calculated with these standards.

WHAT TO DO WHEN YOU NEED ASSISTANCE

Should you require assistance simply call the Roadside Assistance toll free number and follow the prompts:
Phone: 1300 133 079
This number is also printed on your membership card.
Be sure to have the following information available for the customer service assistant when you call:

• Your name and breakdown location (also nearest cross street if possible).
• Your Roadside Assistance Membership Number and expiry date.
• Your vehicle registration number.
• You must provide a telephone number on which you can be contacted.

ALFA ROMEO GENUINE SPARE PARTS AND ACCESSORIES

PERFECT FOR YOUR VEHICLE, RIGHT DOWN TO THE SMALLEST DETAIL
The Alfa Romeo Genuine Spare Parts and Accessories follow the rigid component engineering and manufacturing specifications used in the assembly line to meet the technical specifications of your new Alfa Romeo and to enhance its style and performance. They undergo strict approval tests and quality controls to ensure they comply with safety and environmental standards.
All of the components on your new Alfa Romeo, from the smallest bulb to the most complex mechanical, electrical and electronic systems, are designed to work in harmony and guarantee you a comfortable and safe drive, in full respect for the environment. The Genuine Accessories fully enhance the style of your new vehicle.
Entrust the experience and quality of Alfa Romeo Dealerships to find the full range of Alfa Romeo Genuine Spare Parts and Accessories.
Find your nearest Dealership on www.alfaromeo.com
