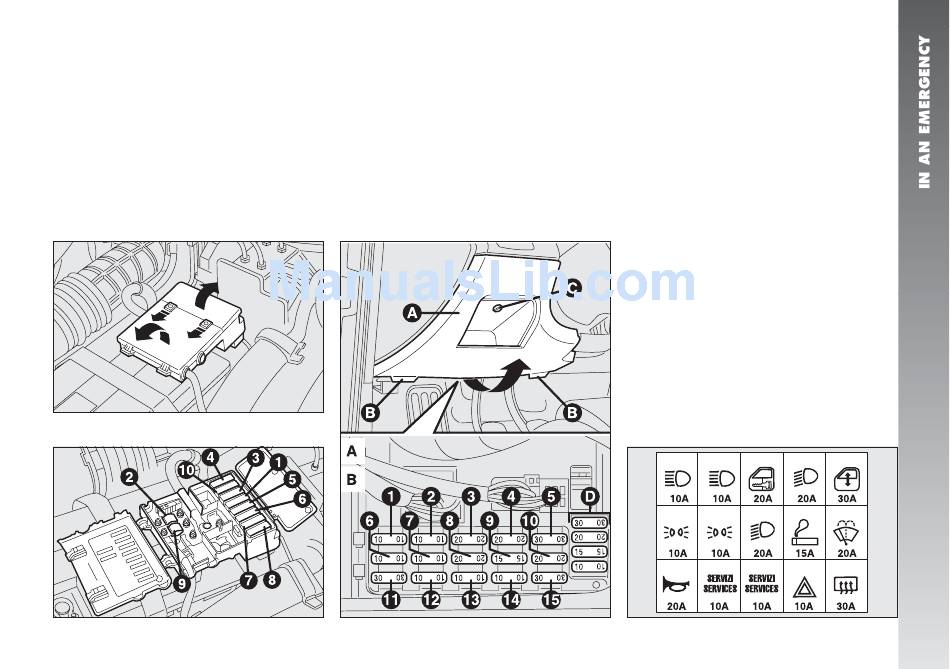

The general protection fuses of Alfa
156 are in the engine compartment, in-
side a container near the battery positive ter-
minal; to gain access to the fuses lift the two
lids (fig. 67 and fig. 68).
fig. 67
fig. 68
FUSE AND RELAYS IN THE
MAIN FUSEBOX (fig. 69)
The fuses for the main devices are housed
in a control unit under the dashboard, to the
left of the steering column.
To gain access to them, remove the pan-
el (A) releasing the tabs (B) in the direc-
tion of the arrow below and remove the
screw (C).
A0B0188m
A0B0579m
fig. 69
A. Dipped beam light relay.
B. Relay for sunroof , seat heater, rear
window power control, seat electric adjust-
ment.
The symbols that identify the main electric
component protected by each fuse, are
shown on the label (fig. 70) on the in-
ner side of the panel (A-fig. 69).
Some spare fuses are housed at the right
of the control unit (D-fig. 69); you are ad-
A0B0172m
vised to replenish the stock of spare fuses
when they are used.
fig. 70
A0B0185m
