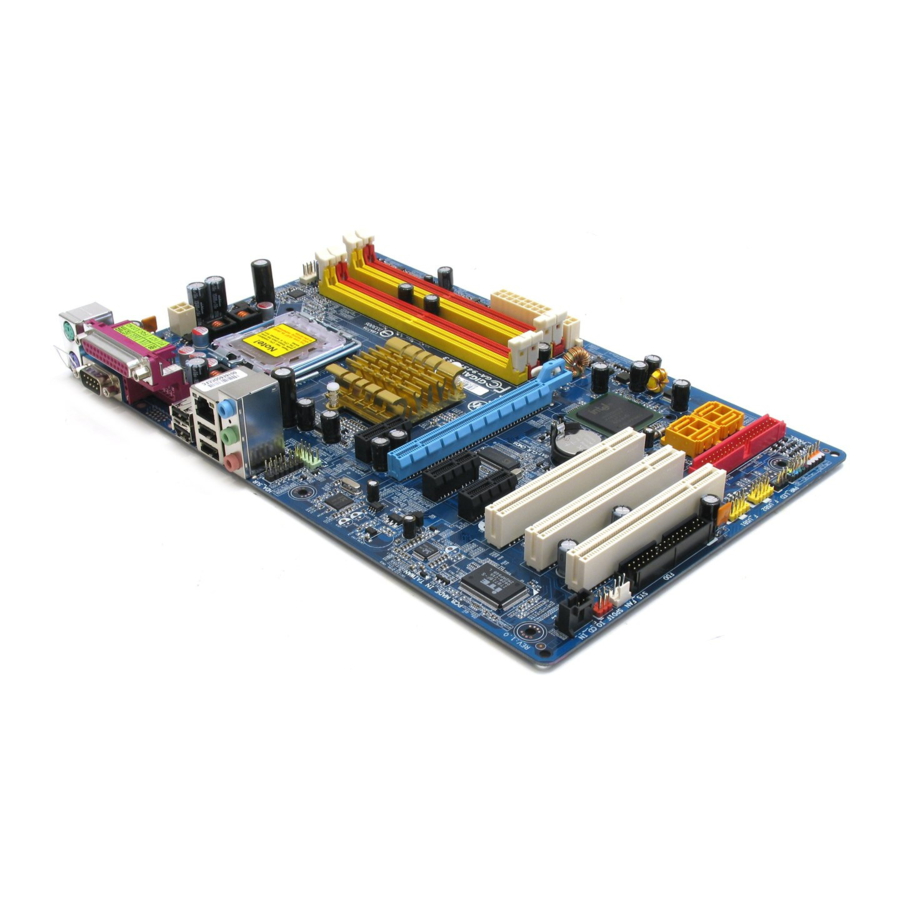

Gigabyte GA-945P-S3 User Manual

Intel core 2 extreme / core 2 duo intel pentium d / pentium 4 lga775 processor motherboard
Hide thumbs Also See for GA-945P-S3:
Table of Contents

Advertisement

Quick Links

GA-945P-S3
Intel
Core
2 Extreme / Core
®
TM
Intel
Pentium
®
®
User's Manual
Rev. 1001
12ME-945PS3-1001R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
TM
D / Pentium
4 LGA775 Processor Motherboard
®
2 Duo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-945P-S3 and is the answer not in the manual?

Questions and answers

Related Manuals for Gigabyte GA-945P-S3

Summary of Contents for Gigabyte GA-945P-S3

  • Page 1 GA-945P-S3 Intel Core 2 Extreme / Core 2 Duo ® Intel Pentium D / Pentium 4 LGA775 Processor Motherboard ® ® ® User's Manual Rev. 1001 12ME-945PS3-1001R * The WEEE marking on the product indicates this product must not be disposed of with user's other household waste and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!! * The WEEE marking applies only in European Union's member states.
  • Page 3 Copyright © 2006 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in the manual are legally registered to their respective companies. Notice The written content provided with this product is the property of Gigabyte. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without Gigabyte's prior written permission.

  • Page 4: Table Of Contents

    Table of Contents Item Checklist ......................... 6 Optional Accessories ...................... 6 GA-945P-S3 Motherboard Layout ................. 7 Block Diagram ........................ 8 Chapter 1 Hardware Installation ..................9 Considerations Prior to Installation ..............9 Feature Summary ..................10 Installation of the CPU and CPU Cooler ............12 1-3-1 Installation of the CPU ..................
  • Page 5 Chapter 3 Install Drivers ..................... 49 Install Chipset Drivers ..................49 Software Applications ..................50 Driver CD Information ..................50 Hardware Information ..................51 Contact Us ..................... 51 Chapter 4 Appendix ....................53 Unique Software Utilities ................53 4-1-1 EasyTune 5 Introduction ..................53 4-1-2 Xpress Recovery2 Introduction .................

  • Page 6: Item Checklist

    Item Checklist IDE Cable x 1 and FDD Cable x 1 SATA 3Gb/s Cable x 2 I/O Shield * The items listed above are for reference only, and are subject to change without notice. Optional Accessories 2 Ports USB2.0 Cable (Part Number: 12CR1-1UB030-51/R) 4 Ports USB2.0 Cable (Part Number: 12CR1-1UB030-21/R) SPDIF In and Out Cable (Part Number: 12CR1-1SPINO-11/R) 5.1/7.1 Surround Cable (Part Number: 12CF1-1AU004-01R )

  • Page 7: Ga-945P-S3 Motherboard Layout

    GA-945P-S3 Motherboard Layout CPU_FAN ATX_12V KB_MS LGA775 AUDIO Intel 945P ® HDA_SUR PCIE_3 RTL8111B PCIE_16 PCIE_1 CLR_CMOS PCIE_2 Intel ICH7 ® BATTERY PCI1 CODEC SATAII0 SATAII2 BIOS PCI2 SATAII1 SATAII3 IDE1 PCI3 PWR_LED F_PANEL CD_IN SPDIF_IO SYS_FAN F_USB1 F_USB2 - 7 -...

  • Page 8: Block Diagram

    Block Diagram PCIe CLK (100 MHz) CPUCLK+/-(266/200/133 MHz) LGA775 Processor Host Interface DDRII 667 /533/400 MHz DIMM (Note) PCI Express x16 Dual Channel Memory Intel ® 945P MCHCLK (266/200/133 MHz) RJ45 RTL8111B BIOS PCI Express Bus ATA33/66/100 IDE Channel 4 SATA 3Gb/s Intel ®...

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Considerations Prior to Installation Preparing Your Computer The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please follow the instructions below: 1.

  • Page 10: Feature Summary

    1 system fan connector 1 front panel connector 1 front audio connector 1 HDA_SUR connector 1 CD In connector 2 USB 2.0/1.1 connectors for additional 4 ports by cables 1 SPDIF In/Out connector 1 power LED connector GA-945P-S3 Motherboard - 10 -...
  • Page 11 Rear Panel I/O 1 PS/2 keyboard port 1 PS/2 mouse port 1 serial port (COMA) 1 parallel port 4 USB 2.0/1.1 ports 1 RJ-45 port 3 audio jacks (Line In / Line Out / MIC In) I/O Control IT8718 chip Hardware Monitor System voltage detection CPU temperature detection...

  • Page 12: Installation Of The Cpu And Cpu Cooler

    (Grasping the CPU firmly between your thumb and forefinger, carefully place it into the socket in a straight and downwards motion. Avoid twisting or bending motions that might cause damage to the CPU during installation.) GA-945P-S3 Motherboard - 12 -...

  • Page 13: Installation Of The Cpu Cooler

    1-3-2 Installation of the CPU Cooler Male Push Pin The top of Female Push Pin Female Push Pin Fig.1 Fig. 2 Please apply an even layer of heat paste on the (Turning the push pin along the direction of arrow is to surface of the installed CPU.

  • Page 14: Installation Of Memory

    DIMM socket. Then push it down. Fig.2 Close the plastic clip at both edges of the DIMM sockets to lock the DIMM module. Reverse the installation steps when you wish to remove the DIMM module. GA-945P-S3 Motherboard - 14 -...
  • Page 15 The GA-945P-S3 supports the Dual Channel Technology. After operating the Dual Channel Technology, the bandwidth of memory bus will double. The GA-945P-S3 includes 4 DIMM sockets, and each Channel has two DIMM sockets as following: Channel 0 : DDRII1, DDRII2...

  • Page 16: Installation Of Expansion Cards

    PCI Express x16 slot. When you try uninstall the VGA card, please gently press the latch as the picture to the left shows to release the card. GA-945P-S3 Motherboard - 16 -...

  • Page 17: I/O Back Panel Introduction

    I/O Back Panel Introduction PS/2 Keyboard and PS/2 Mouse Connector To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the lower port (purple). LPT (Parallel Port) The parallel port allows connection of a printer, scanner and other peripheral devices. Serial Port (COMA) Connects to serial-based mouse or data processing devices.

  • Page 18: Connectors Introduction

    Connectors Introduction 13 4 ATX_12V HDA_SUR ATX (Power Connector) PWR_LED CPU_FAN CD_IN SYS_FAN SPDIF_IO F_USB1/F_USB2 IDE1 SATAII0/1/2/3 CLR_CMOS F_PANEL BATTERY F_AUDIO GA-945P-S3 Motherboard - 18 -...
  • Page 19 1/2) ATX_12V/ATX (Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, please make sure that all components and devices are properly installed. Align the power connector with its proper location on the motherboard and connect tightly.
  • Page 20 The FDD connector is used to connect the FDD cable while the other end of the cable connects to the FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB. Before attaching the FDD cable, please take note of the foolproof groove in the FDD connector. GA-945P-S3 Motherboard - 20 -...
  • Page 21 6) IDE1 (IDE Connector) An IDE device connects to the computer via an IDE connector. One IDE connector can connect to one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical drive).
  • Page 22 RES (Reset Switch) Open: Normal (Green) Close: Reset Hardware System PW (Power Switch) Open: Normal (Red) Close: Power On/Off MSG (Message LED/Power/Sleep LED) Pin 1: LED anode(+) (Yellow) Pin 2: LED cathode(-) NC ( Purple) GA-945P-S3 Motherboard - 22 -...

  • Page 23: Front Audio Connector

    9) F_AUDIO (Front Audio Connector) This connector supports either HD (High Definition) or AC97 front panel audio module. If you wish to use the front audio function, connect the front panel audio module to this connector. Check the pin assignments carefully while you connect the front panel audio module. Incorrect connection between the module and connector will make the audio device unable to work or even damage it.
  • Page 24 S_SURR_RR 11) PWR_LED The PWR_LED connector is connected with the system power indicator to indicate whether the system is on/off. It will blink when the system enters suspend mode. Pin No. Definition MPD+ MPD- MPD- GA-945P-S3 Motherboard - 24 -...
  • Page 25 12) CD_IN (CD IN) Connect CD-ROM or DVD-ROM audio out to the connector. Pin No. Definition CD-L CD-R 13) SPDIF_IO (SPDIF In/Out) The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby Digital Decoder. Use this feature only when your stereo system has digital input function.
  • Page 26 No Pin 15) CI (Chassis Intrusion, Case Open) This 2-pin connector allows your system to detect if the chassis cover is removed. You can check the "Case Opened" status in BIOS Setup. Pin No. Definition Signal GA-945P-S3 Motherboard - 26 -...
  • Page 27 16) CLR_CMOS (Clear CMOS) You may clear the CMOS data to its default values by this header. To clear CMOS, temporarily short the two pins. Default doesn't include the jumper to avoid improper use of this header. Open: Normal Short: Clear CMOS 17) BATTERY Danger of explosion if battery is incorrectly replaced.
  • Page 28 GA-945P-S3 Motherboard - 28 -...

  • Page 29: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) includes a CMOS SETUP utility which allows user to configure required settings or to activate certain system features. The CMOS SETUP saves the configuration in the CMOS SRAM of the motherboard. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS SRAM.

  • Page 30: The Main Menu (For Example: Bios Ver. : E5)

    If you can't find the setting you want, please press "Ctrl+F1" to search the advanced option hidden. Please Load Optimized Defaults in the BIOS when somehow the system works not stable as usual. This action makes the system reset to the default for stability. GA-945P-S3 Motherboard - 30 -...
  • Page 31 Standard CMOS Features This setup page includes all the items in standard compatible BIOS. Advanced BIOS Features This setup page includes all the items of Award special enhanced features. Integrated Peripherals This setup page includes all onboard peripherals. Power Management Setup This setup page includes all the items of Green function features.

  • Page 32: Standard Cmos Features

    Auto Allows BIOS to automatically detect IDE/SATA devices during POST(default) None Select this if no IDE/SATA devices are used and the system will skip the automatic detection step and allow for faster system start up. GA-945P-S3 Motherboard - 32 -...
  • Page 33 Capacity Capacity of currently installed hard disk. Cylinder Number of cylinders Head Number of heads Precomp Write precomp Landing Zone Landing zone Sector Number of sectors Drive A The category identifies the types of floppy disk drive A that has been installed in the computer. None No floppy drive installed 360K, 5.25"...

  • Page 34: Advanced Bios Features

    If you want to cancel the setting of password, please just press ENTER to make [SETUP] empty. (Note) This item will show up when you install a processor which supports this function. GA-945P-S3 Motherboard - 34 -...
  • Page 35 CPU Hyper-Threading (Note) Enabled Enable CPU Hyper Threading Feature. Please note that this feature is only working for operating system with multi processors mode supported. (Default value) Disabled Disables CPU Hyper Threading. Limit CPUID Max. to 3 (Note) Enabled Limit CPUID Maximum value to 3 when use older OS like NT4. Disabled Disable CPUID Limit for windows XP.

  • Page 36: Integrated Peripherals

    This value will auto make by the setting "On-Chip SATA Mode" and "PATA IDE Set to". If PATA IDE were set to Ch. 0 Master/Slave,this function will auto set to Ch. 1 Master/Slave. USB Controller Enabled Enable USB Controller. (Default value) Disabled Disable USB Controller. GA-945P-S3 Motherboard - 36 -...
  • Page 37 USB 2.0 Controller Disable this function if you are not using onboard USB 2.0 feature. Enabled Enable USB 2.0 Controller. (Default value) Disabled Disable USB 2.0 Controller. USB Keyboard Support Enabled Enable USB Keyboard Support. Disabled Disable USB Keyboard Support. (Default value) USB Mouse Support Enabled Enable USB Mouse Support.

  • Page 38: Power Management Setup

    Time (hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59) Power On By Mouse Disabled Disable this function. (Default value) Double Click Double click on PS/2 mouse left button to power on the system. GA-945P-S3 Motherboard - 38 -...
  • Page 39 Power On By Keyboard Password Enter from 1 to 5 characters to set the Keyboard Power On Password. Disabled Disable this function. (Default value) Keyboard 98 If your keyboard have "POWER Key" button, you can press the key to power on the system. KB Power ON Password When "Power On by Keyboard"...

  • Page 40: Pnp/Pci Configurations

    Auto Auto assign IRQ to PCI 2. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2. PCI3 IRQ Assignment Auto Auto assign IRQ to PCI 3. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3. GA-945P-S3 Motherboard - 40 -...

  • Page 41: Pc Health Status

    PC Health Status CMOS Setup Utility-Copyright (C) 1984-2006 Award Software PC Health Status Reset Case Open Status [Disabled] Item Help Case Opened Menu Level Vcore DDR18V +3.3V +12V Current CPU Temperature Current CPU FAN Speed 3375 RPM Current SYSTEM FAN Speed CPU Warning Temperature [Disabled] CPU FAN Fail Warning...
  • Page 42 Note: In fact, the Voltage option can be used for CPU fans with 3-pin or 4-pin power cables. However, some 4-pin CPU fan power cables are not designed following Intel 4-Wire fans PWM control specifications. With such CPU fans, selecting PWM will not effectively reduce the fan speed. GA-945P-S3 Motherboard - 42 -...

  • Page 43: Mb Intelligent Tweaker(M.i.t.)

    MB Intelligent Tweaker(M.I.T.) CMOS Setup Utility-Copyright (C) 1984-2006 Award Software MB Intelligent Tweaker(M.I.T.) CPU Clock Ratio (Note) [16X] Item Help C.A.M (Note) [High] Menu Level Robust Graphics Booster [Auto] C.I.A. 2 [Disabled] CPU Host Clock Control [Disabled] x CPU Host Frequency (Mhz) x PCI Express Frequency (Mhz) Auto System Memory Multiplier...
  • Page 44 Please note that by overclocking your system through the increase of the CPU voltage, damage to the CPU or decrease in the CPU life expectancy may occur. Normal CPU Vcore Display your CPU's normal voltage. GA-945P-S3 Motherboard - 44 -...

  • Page 45: Load Fail-Safe Defaults

    Load Fail-Safe Defaults CMOS Setup Utility-Copyright (C) 1984-2006 Award Software Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password Load Fail-Safe Defaults (Y/N)? N PnP/PCI Configurations Save &...

  • Page 46: Set Supervisor/User Password

    Setup Menu. If you select "Setup" at "Password Check" in Advance BIOS Features Menu, you will be prompted only when you try to enter Setup. GA-945P-S3 Motherboard - 46 -...

  • Page 47: Save & Exit Setup

    2-11 Save & Exit Setup CMOS Setup Utility-Copyright (C) 1984-2006 Award Software Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Save to CMOS and EXIT (Y/N)? Y Power Management Setup Set User Password PnP/PCI Configurations Save &...
  • Page 48 GA-945P-S3 Motherboard - 48 -...

  • Page 49: Chapter 3 Install Drivers

    Chapter 3 Install Drivers Pictures below are shown in Windows XP. Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the Run.exe.

  • Page 50: Software Applications

    This page displays all the tools that Gigabyte developed and some free software, you can choose anyone you want and press "install" to install them. Driver CD Information This page lists the contents of software and drivers in this CD-title. GA-945P-S3 Motherboard - 50 -...

  • Page 51: Hardware Information

    Hardware Information This page lists all device you have for this motherboard. Contact Us Please see the last page for details. - 51 - Install Drivers...
  • Page 52 GA-945P-S3 Motherboard - 52 -...

  • Page 53: Chapter 4 Appendix

    Chapter 4 Appendix Unique Software Utilities (Not all model support these Unique Software Utilities, please check your MB features.) 4-1-1 EasyTune 5 Introduction EasyTune 5 presents the most convenient Windows based system performance enhancement and manageability utility. Featuring several powerful yet easy to use tools such as 1) Overclocking for enhancing system performance, 2) C.I.A.

  • Page 54: Xpress Recovery2 Introduction

    2. System storage capacity and the reading/writing speed of the hard disk will affect the data backup speed. 3. It is recommended that Xpress Recovery2 be immediately installed once you com- plete installations of OS and all required drivers as well as software. GA-945P-S3 Motherboard - 54 -...
  • Page 55 The Main Screen of Xpress Recovery2 1. RESTORE: Restore the backed-up data to your hard disk. (This button will not appear if there is no backup file.) 2. BACKUP: Back up data from hard disk. 3. REMOVE: Remove previously-created backup files to release disk space.

  • Page 56: Flash Bios Method Introduction

    Please note that because updating BIOS has potential risk, please do it with caution!! We are sorry that Gigabyte Technology Co., Ltd is not responsible for damages of system because of incorrect manipulation of updating BIOS to avoid any claims from end-users.
  • Page 57 Entering the Q-Flash utility: Step1: To use Q-Flash utility, you must press Del in the boot screen to enter BIOS menu. CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Select Language Advanced BIOS Features Load Fail-Safe Defaults Integrated Peripherals Load Optimized Defaults Power Management Setup Set Supervisor Password...
  • Page 58 Save Main BIOS to Floppy Save Backup BIOS to Floppy Enter : Run :Move ESC:Reset F10:Power Off After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?" GA-945P-S3 Motherboard - 58 -...
  • Page 59 3. Press Y button on your keyboard after you are sure to update BIOS. Then it will begin to update BIOS. The progress of updating BIOS will be displayed. Please do not take out the floppy disk when it begins flashing BIOS. 4.

  • Page 60: Updating Bios With Q-Flash Utility On Single-Bios Motherboards

    PnP/PCI Configurations Set User Password PC Health Status Save & Exit Setup MB Intelligent Tweaker(M.I.T.) Exit Without Saving ESC: Quit F3: Change Language F8: Q-Flash F10: Save & Exit Setup Time, Date, Hard Disk Type... GA-945P-S3 Motherboard - 60 -...
  • Page 61 Exploring the Q-Flash utility screen The Q-FlashBIOS utility screen consists of the following key components. Q-Flash utility bar Q-Flash Utility V1.30 Flash Type/Size.........SST 49LF003A 256K Keep DMI Data Enable Task menu for Update BIOS from Floppy Q-Flash utility Save BIOS to Floppy Action bar Enter : Run :Move...
  • Page 62 Press Del to enter BIOS menu after system reboots and "Load BIOS Fail-Safe Defaults". See how to Load BIOS Fail-Safe Defaults, please kindly refer to Step 6 to 7 in Part One. Congratulation!! You have updated BIOS successfully!! GA-945P-S3 Motherboard - 62 -...
  • Page 63 Method 2 : @BIOS Utility If you do not have a DOS startup disk, we recommend that you use the new @BIOS utility. @BIOS allows users to update their BIOS under Windows. Just select the desired @BIOS server to download the latest version of BIOS.
  • Page 64 Gigabyte's web site for downloading and updating it according to method II. IV. Please note that any interruption during updating will cause system unbooted. V. Do not use @BIOS and C.O.M. (Corporate Online Management) at the same time. GA-945P-S3 Motherboard - 64 -...

  • Page 65: 4- / 6- / 8- Channel Audio Introduction

    4-1-4 2- / 4- / 6- / 8- Channel Audio Introduction This motherboard comes with three audio jacks. To set up multi- channel surround sound, install an additional 5.1/7.1 surround cable (optional) and enable the feature through the audio driver. Installing the 5.1/7.1 Surround Cable (Optional) The 5.1/7.1 Surround Cable provides center/ subwoofer speaker out, rear speaker out, and side...
  • Page 66 Out jack, a small window will pop up and ask you what type of equipment is connected. Choose Headphone or Line Out depending on the device connected and click OK. The 2-channel audio setup is completed. GA-945P-S3 Motherboard - 66 -...
  • Page 67 Setting Up 4-Channel Audio STEP 1 : After installation of the audio driver, you should find an Audio Manager icon in your system tray (you can also find the icon in Control Panel). Double- click the icon to open the Audio Control Panel. STEP 2: In the Audio Control Panel, click the Audio I/O tab.
  • Page 68 Choose a device depend- ing on the type of speaker connected (6-channel audio consists of Front Speaker Out (Line Out), Rear Speaker Out, and Center/Subwoofer Speaker Out) then click OK. The 6-channel audio setup is completed. GA-945P-S3 Motherboard - 68 -...
  • Page 69 Setting Up 8-Channel Audio STEP 1 : After installation of the audio driver, you should find an Audio Manager icon in your system tray (you can also find the icon in Control Panel). Double- click the icon to open the Audio Control Panel. STEP 2: In the Audio Control Panel, click the Audio I/O tab.
  • Page 70 AC97 Audio mode, go to the Audio Control Panel and click the Audio I/O tab. In the ANA- LOG area, click the Tool icon and then select the Disable front panel jack detection check box. This action completes the AC'97 Audio configuration. GA-945P-S3 Motherboard - 70 -...

  • Page 71: Troubleshooting

    Troubleshooting Below is a collection of general asked questions. To check general asked questions based on a specific motherboard model, please log on to http://www.gigabyte.com.tw Question 1: I cannot see some options that were included in previous BIOS after updating BIOS. Why? Answer: Some advanced options are hidden in new BIOS version.
  • Page 72 GA-945P-S3 Motherboard - 72 -...
  • Page 73 - 73 - Appendix...
  • Page 74 GA-945P-S3 Motherboard - 74 -...
  • Page 75 - 75 - Appendix...
  • Page 76 GA-945P-S3 Motherboard - 76 -...
  • Page 77 - 77 - Appendix...
  • Page 78 GA-945P-S3 Motherboard - 78 -...
  • Page 79 Shenyang Tech. Support: TEL: +86-24-83992901 http://rma.gigabyte-usa.com FAX: +86-24-83992909 Web address: http://www.gigabyte-latam.com India Japan GIGABYTE TECHNOLOGY (INDIA) LIMITED NIPPON GIGA-BYTE CORPORATION WEB address : http://www.gigabyte.in WEB address : http://www.gigabyte.co.jp Australia Singapore GIGABYTE TECHNOLOGY PTY. LTD. GIGA-BYTE SINGAPORE PTE. LTD. WEB address : http://www.gigabyte.com.au WEB address : http://www.gigabyte.com.sg...
  • Page 80 WEB address : http://www.gigabyte.com.lv GIGA-BYTE TECHNOLOGY B.V. Poland WEB address : http://www.giga-byte.nl Office of GIGA-BYTE TECHNOLOGY Co., Ltd. in POLAND France WEB address : http://www.gigabyte.pl GIGABYTE TECHNOLOGY FRANCE Ukraine WEB address : http://www.gigabyte.fr WEB address : http://www.gigabyte.kiev.ua Italy Romania WEB address : http://www.giga-byte.it Representative Office Of GIGA-BYTE Technology Co., Ltd.
