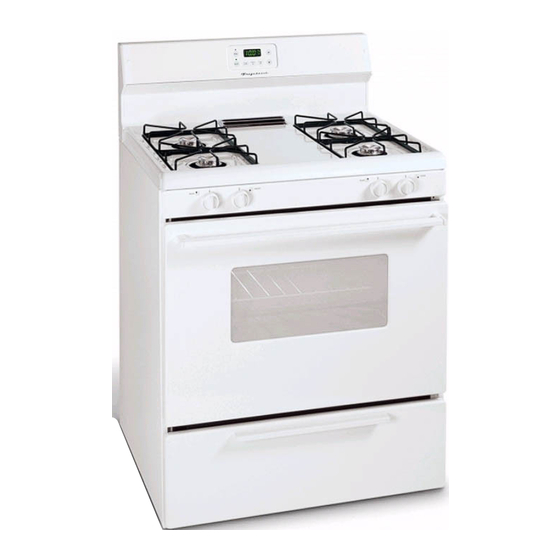

Es100 control with gas venturi burners & broiler drawer

Advertisement

Gas
Visit the Frigidaire Web Site at:
http://www.frigidaire.com
Range
Welcome.......................................... 2
ES100 Control with Gas Venturi Burners
& Broiler Drawer
Setting Surface Controls ............... 5
Oven Control Functions .............6-7
Setting Oven Controls .................8-9
Adjusting Your Oven
Before You Call
14
Solutions to Common Problems ........................
Warranty ......................... Back Page
Questions or for Service Call:
1-800-944-9044
(U.S.)
1-800-668-4606
(Canada)
READ AND SAVE THESE INSTRUCTIONS
p/n 316417134 (0705)

Advertisement

Table of Contents
loading

Summary of Contents for Frigidaire 316417134

  • Page 1: Table Of Contents

    Visit the Frigidaire Web Site at: http://www.frigidaire.com Range Welcome... 2 ES100 Control with Gas Venturi Burners & Broiler Drawer Important Safety Instructions ...2-4 Setting Surface Controls ... 5 Before Setting Oven Controls ... 6 Oven Control Functions ...6-7 Setting Oven Controls ...8-9 Adjusting Your Oven Temperature (some models) ...
  • Page 2: Welcome

    Your satisfaction is our number one priority. We know you’ll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases.
  • Page 3 Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency. • User servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals.
  • Page 4 IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN • Use Care When Opening Oven Door or Warmer Drawer— Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.
  • Page 5: Setting Surface Controls

    Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wood spoons could catch fire if placed too close to a flame.
  • Page 6: Before Setting Oven Controls

    Before Setting Oven Controls Removing & Replacing Oven Racks To remove, pull the rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides on the oven walls. Tilt the front of the rack upward and slide the rack back into place. Note: The time of day must first be set in order to operate the oven.
  • Page 7: Oven Control Functions

    Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00". 1. Press 2.
  • Page 8: Setting Oven Controls

    Note: The time of day must first be set in order to operate the oven. To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 500°F. To Set the Controls for Baking: 1.
  • Page 9: Setting Oven Controls

    6. Place broiler pan on rack; make sure the broiler pan with the insert is positioned as shown (See Fig.1). Be sure front of pan is positioned correctly in rack. 7. Slide the broiler drawer all the way into the range. Press on Oven Control. 8. Press and hold the broil or the for LO (low) broil.
  • Page 10: Temperature (Some Models)

    +35°F. You may also adjust the oven temperature downward in 5°F increments with each press of the 35 35 35 35 35 35 35 35 35 35 adjustment range of - to + F. Note: Your oven control was factory set in the (Fahrenheit) °F Temperature Display Mode.
  • Page 11: General Care & Cleaning

    Liner & Oven Bottom filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use spray oven cleaners on the range top. Oven Racks Remove racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls.
  • Page 12 Always be sure to rinse the cleaners from the surface as bluish stains may occur during heating that cannot be removed. Before cleaning any part of the range, be sure all controls are turned OFF and the range is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE EFFORT REQUIRED FOR MAJOR CLEANINGS LATER (See Cleaning Chart above).
  • Page 13 To Replace Burners 1. Slide the burner tube over the gas valve at the front of the range (front burners fit over the 2. Tilt burner so that the locating tab will slide into the slot on the support bar. Make sure 3.
  • Page 14 2. Replace bulb with a new 40 watt appliance bulb. 3. Turn power back on again at the main source (or plug the range back in). 4. The clock will then need to be reset. To reset, see “Setting the Clock” and “Setting the Minute Timer”...
  • Page 15: Solutions To Common Problems

    Range is not level - (1) Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. (2) Be sure floor is level, strong & stable enough to adequately support range.
  • Page 16: Warranty

    Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
