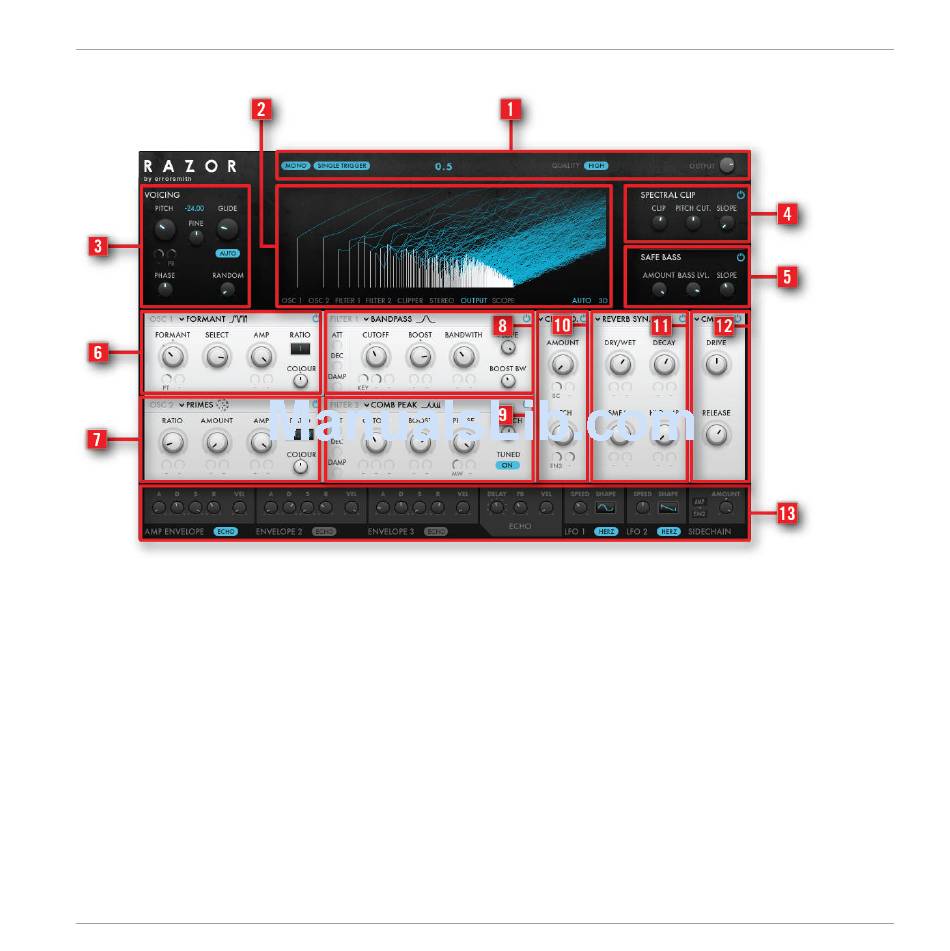

Fig. 5.1 Razors User Interface.
▪ [1] GLOBAL CONTROLS: Contains the Mono/Poly switch, the value display, the quality se
lector and the master volume knob.
▪ [2] GRAPHIC DISPLAY: Multifunctional graphical display showing the frequency spec
trum of oscillators and filters, the panning per partial of the stereo effects and more.
▪ [3] VOICING: Controls for the global pitch and the phase of the oscillators.
▪ [4] SPECTRAL CLIP: A tool to limit loud spectral peaks in the output of the filter stage.
▪ [5] SAFE BASS: A tool to assure that there is always some energy at the fundamental
frequency.
▪ [6] OSCILLATOR 1: Creates a repetitive signal with a settable wave shape. Both oscilla
tors are mixed and passed on to FILTER 1.
▪ [7] OSCILLATOR 2: Creates a repetitive signal with a settable wave shape. Both oscilla
tors are mixed and passed on to FILTER 1.
Overview of RAZOR Ensemble
Overview of RAZOR User Interface
RAZOR - Manual - 18
