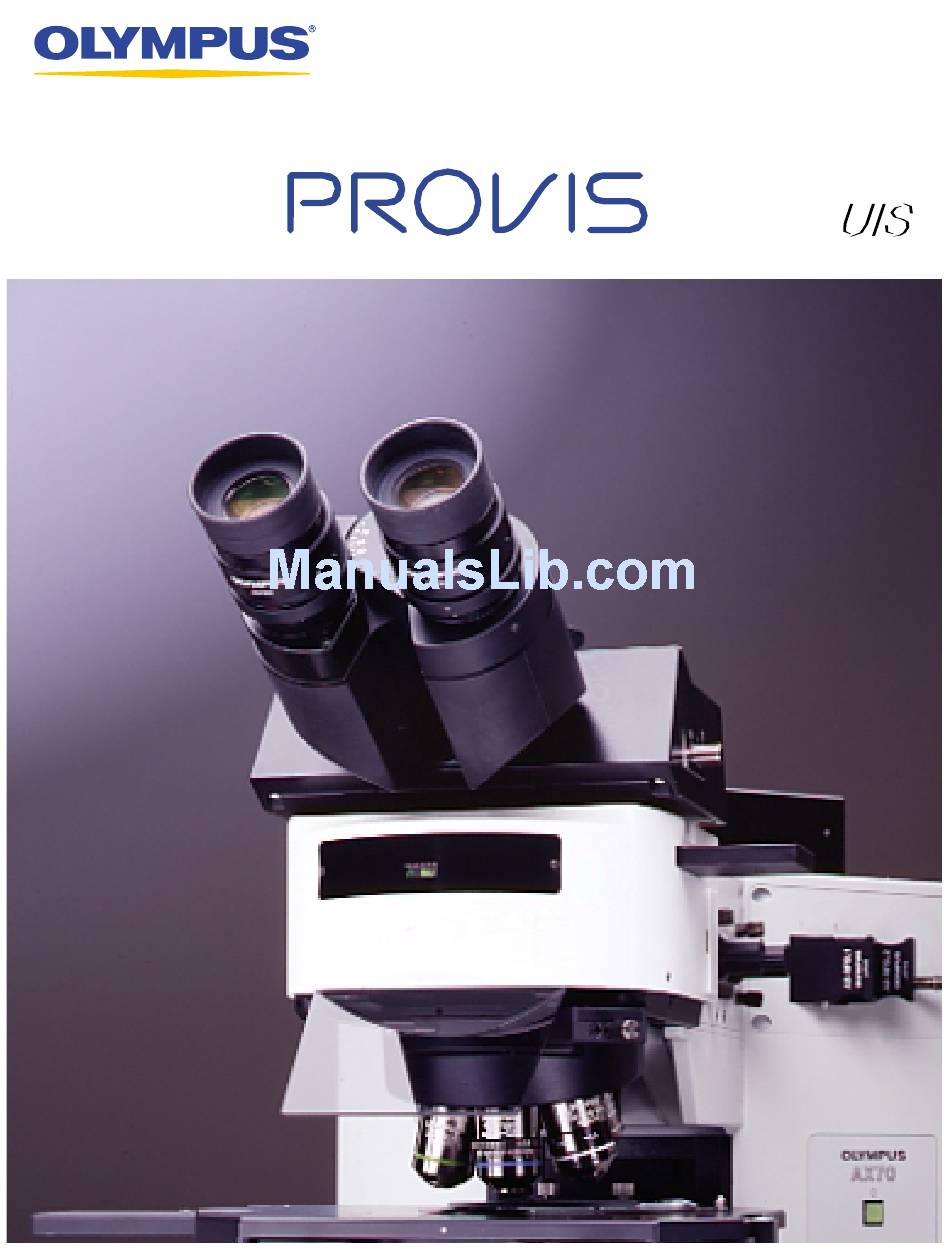

- Page 1 RESEARCH SYSTEM MICROSCOPE AX70 UNIVERSAL INFINITY SYSTEM...
- Page 2 The referenc for future mi...
- Page 3 To date, only one microscope fulfills all these demands – the AX70 Research Microscope from Olympus. Offering uncompromising performance and outstanding system integration potential, the AX70 is a reference standard for future microscopes.
- Page 4 The U-PHOTO 20/80 is also available from Olympus for simultaneous eyepiece and video camera observation. *The Auto focus can be activated by inserting an optional memory card in fluorescence and Nomarski DIC microscopy.
- Page 5 AX-REXBA to optimally balance fluorescence for double-stained fluorescing specimens. The broad range of accessories available ensures that Olympus answers every user need. Thanks to these and other significant advantages, the PROVIS AX70 system accommodates increasingly complex and multi- facetted research and experimental requirements.
- Page 6 The Olympus UIS optics – The new standard of excellence.
- Page 7 Olympus solved this problem by These rays are focused by the telan developing new eyepieces to make it Ideal resolution and contrast lens to form an aberration-free...
- Page 8 Maximum quality for various microscopy applications.
- Page 9 CONTRAST IMAGING Bright, high-quality fluorescence lens surfaces and frame. Together reflection phase membrane. images. with dedicated Olympus optical Appropriate phase-contrast and The AX optical system attains the very design algorithms, this ensures transmission are ensured for a wide best brightness and assures crystal-...
- Page 10 A range of illuminator systems for advanced research applications.
- Page 11 ILLUMINATION VERSATILITY Photoactivation of caged fluorescein. Caged fluorescein labeled tubulin had been introduced in the cell; after exposure to UV light through a slit a photoactivated zone was generated. conventional ultraviolet UV excitation are both required when fluorescence microscopy moves toward multi- staining.
- Page 12 Structural integrity for vibration resistance, weighty accessories and thermal stability.
- Page 13 To the lamp housing on the frame. achieve an exceptionally rigid frame These measures effectively minimize for the AX70, Olympus used heat-induced frame flexure on the advanced computer simulation AX70. techniques in the design process.
- Page 14 Maximum operator comfort at all times.
- Page 15 COMFORTABLE OPERATION The thrombus model in microcirculation of the rat mesentery/ LCPL 20 , Photo magnification 5 , brightfield An extra-wide stage -- ideal for not only allows the operator's forearms experiments and observation of to be supported by the worktable or small animals.
- Page 16 Automation facilitates research microscopy.
-
Page 17: Automatic Operation
Efficient heat and IR removal in the collector lens protects interference exciter filters from unnecessary energy. The automation capability (RS232C/GPIB) of the PROVIS AX70 makes it an ideal base for automated FISH imaging stations. - Page 18 Sophisticated photo and video documentation systems. U-PHOTO Universal Photo System The U-PHOTO Universal Photo System is an automatic photomicrography system that provides fully automatic functions for photomicrography. These include a flexible spot measurement function, a Super FL Auto mode specifically designed for fluorescence photomicrography, and a zoom magnification changeover.
- Page 19 *Use of auto focus with AX70 requires U-AFPHOTO, AX-FOM, U-MCB and AX-PCBT. Since modification of AX70 unit is also required, please consult your Olympus dealer. – especially for frequent users of photo- micrography or video documentation.
- Page 20 Fluorescence microscopy dedicated accessories support full research efficiency. AX-REXBA* The use of a dual-band filter allows simultaneous observation of double- stained specimens. With the conventional observation method, photomicrography or image documentation with optimally balanced light intensity is difficult since one of the two fluorochromes may emit fluorescence that is too weak or too strong.
- Page 21 ACCESSORIES Specimens viewed with AX-REXBA. Rat originated cell culture FITC/TRITC, UPLAPO40 , PE3.3 TRITC enhanced FITC enhanced Precise correction for image deviation in multiple exposure. Optical center adjuster AX-OCA The AX-OCA effectively eliminates the deviations during multiple exposure.
- Page 22 Powerful partners provide solutions to ACCESSORIES specific application requirements. U-MPH multi-port head The U-MPH enables erect image observation of a super widefield of view and makes simplified micromanipulation on the upright microscope possible. Centering, rotation, magnification and focus adjustments are also possible for the second image port.
- Page 23 AX70 specifications Item AX70 AX70+U-PHOTO/U-PHOTO20/80/U-AFPHOTO Type Y-shape frame with built-in transmitted/incident light vertical illuminator Optical system UIS optical system (infinity-corrected/compensation-free) 12V100W halogen (2,000 hours long-life type), pre centered Mechanical field diaphragm (motorized field diaphragm unit attachable) Transmitted illumination Six built-in manual filters (ND1.5, ND3, ND6, ND12, IF550, LBD; motorized filter changer attachable) One optional external filter can be user-installed (manual operation) Universal vertical illuminator, 12V100W halogen/Hg100W/Xe75W applicable, optical devices detachable, motorized mirror unit changer, excitation light Incident illumination...
- Page 24 AX70 dimensions (unit: mm) (unit: mm) ISO9001 ISO14001 Certification Certification U K A S Design and production at the Olympus Design and production ENVIRONMENTAL Optical Co. Ltd. Ina Plant conforms with ISO 14001 Accredited by the MANAGEMENT adheres to ISO9001...
