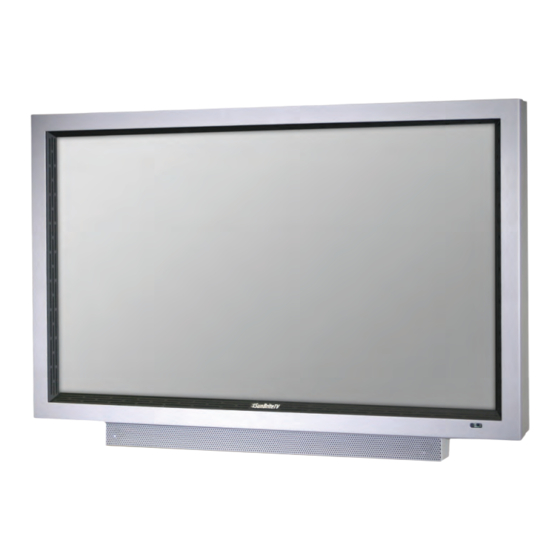

- Page 1 All-Weather Outdoor LCD Television Operator’s Manual Model SB-6560HD Rev. 6560HD-120514...
-
Page 2: Important Safety Instructions
Electronic Industries Alliance: www.eia.org. Disclaimer: While SunBriteTV LLC intends to make this manual accurate and complete, we do not make claims that the information contained within covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Fcc Statement
Power Source: SunBriteTV must operate on a power source indicated on the specifi cation label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. When using the TV outdoors, you must use a GFI- protected AC outlet with “in-use”... - Page 4 However, it is not designed to withstand pressure washers, high-pressure water jets, or hurricane-type weather. Do not service SunBriteTV yourself: Removal of the television screen cover may expose you to high voltage or other dangerous risks. Refer all servicing to a qualifi ed service professional. Warranty will not be honored if you service the unit yourself.
-
Page 5: Table Of Contents
Features Information and Instructions Extreme Climate Warning Programming Other Manufacturers’ Universal Remote Control Devices SunBriteTV Pixel Quality Policy Dust Cover Appendix A - RS232 Control Codes Appendix B - RS232 Control Cable Pinout SunBriteTV Model SB-6560HD Operator’s Manual Page 5 Page 5... -
Page 6: Supplied Accessories
Supplied Accessories Unpacking After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. SunBriteTV LCD Television Model 6560HD Remote Control with Batteries Operator’s Manual... -
Page 7: Detachable Speaker Module Installation
Speaker Cable Wire should not be placed across the bottom of the Rubber Sealing Gasket (Figure 6). Figure 6 Figure 4 Figure 5 Speaker Connector Thumb Screws Connect Source Cover Rubber Sealing Gasket Speaker Cable Speaker Cable Wire should not come out of this area SunBriteTV Model SB-6560HD Operator’s Manual Page 7... -
Page 8: Rear Panel Internal Connect Source
TV Installation – Rear Panel Internal Connect Source Rear Panel Connections WARNING: Do not connect the power source before making connections. Internal Connect Source The Internal Connect Source allows you to easily connect to the Audio, Video, S-Video, SVGA, HDMI, Audio Out, RF, RS232, and 12 VDC connectors, and the IR emitter window. -
Page 9: Rear Panel Connection Diagrams
12. ANALOG AUDIO OUT (Variable) - Used to connect headphones, stereo receivers and amplifi ed speakers via a 3.5mm headphone jack. 13. IR WINDOW - For remote control using IR commands. 14. SPEAKER MODULE CONNECTOR - This port is for the SunBriteTV Detachable Speaker Module only. 15. 12-VOLT OUT 16. - Page 10 TV Installation – Rear Panel Connections Cable Descriptions: Connection Descriptions: Green Blue Yellow Green White Page 10...
- Page 11 2. The TV’s tuner is designed for HDTV therefore requires a stronger signal than normal TVs. If you cannot achieve that signal level with your antenna or cable, the TV might lose picture or sound. SunBriteTV Model SB-6560HD Operator’s Manual Page 11...
- Page 12 TV Installation – Rear Panel Connection Diagrams CONNECTING TO AN ANTENNA--(Continued) Connecting to Cable or Antenna through VCR Please Note : Some VCRs must be turned On before its output will have a signal to the TV. Please consult your VCR manual for further reference.
- Page 13 Reference the DVD player’s manual to make sure the DVD player is configured to output correctly to the TV. 3. This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Model SB-6560HD Operator’s Manual Page 13...
- Page 14 HDMI 2. Connect the red color connector to both your set-top box and SunBriteTV’s MODEL 6560HD supports SONY’s universal Component 1’s red connector port off the back of your TV to remote code. Please look up SONY’s codes in your the right side of your green, blue, red component connection.
- Page 15 TV. port and switch source to AV 2 (S-Video). SunBriteTV’s MODEL 6560HD supports SONY’s universal Refer to the set-top box’s manual to make sure the set-top remote code. Please look up SONY’s codes in your universal box is configured to output correctly to the TV.
- Page 16 TV Installation – Rear Panel Connection Diagrams CONNECTING TO AN EXTERNAL AMPLIFIER OR AMPLIFIED SPEAKERS Connecting with Coaxial SPDIF Digital (Best) Connecting with RCA Audio Analog (Good) 1. Make sure the power of the TV and your receiver is 1. Make sure the power of the TV and your receiver is turned turned off.
- Page 17 Refer to your PC manual for video output requirements of the video card. The VGA port of the TV features a power saving mode which will automatically turn off the TV if there is no signal provided for more than 15 minutes. SunBriteTV Model SB-6560HD Operator’s Manual Page 17...
-
Page 18: Side Panel And Front Panel Controls
TV Installation--Rear Panel Connection Diagrams Connecting the Power Cord WARNING: TV AND GFCI RECEPTACLE MUST BE INSTALLED AT LEAST 5 FEET AWAY FROM STANDING WATER , SUCH AS (BUT NOT LIMITED TO) A POOL OR SPA. Connect the power cord after you have made connections to your video equipment. Connect the power cord to a GFCI-protected AC outlet with “in-use”... -
Page 19: Remote Control Guide
The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Care Center. SunBriteTV will repair or replace the remote control at SunBriteTV’s option. - Page 20 The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Support Team. SunBriteTV will repair or replace the remote control at SunBriteTV’s option.
-
Page 21: On-Screen Display Controls
Press qp buttons to Sharpness, then use t u to adjust the sharpness level of picture. Color mode Press qp buttons to Color Mode, then use t u to adjust the color mode of picture, such as Cool, Normal and Warm SunBriteTV Model SB-6560HD Operator’s Manual Page 21... -
Page 22: Audio Menu
Adjusting On-Screen Displays – Audio Menu Audio Menu 1. Press qp buttons to move the cursor to the item to be selected. Sound Mode Allows you to you choose your sound preferences. 2. Press t u buttons to make the desired adjustments. Press qp buttons to Sound Mode, then use t u to 3. -
Page 23: Time Menu
When Daylight Saving Time is ON, the clocks are set one hour ahead of local standard time. Clock The time is decoded from the digital signal and displayed (such as DTV,HDMI) This item is available only in English. SunBriteTV Model SB-6560HD Operator’s Manual Page 23... -
Page 24: Setup Menu
Adjusting On-Screen Displays – Setup Menu Setup Menu 1. Press qp buttons to move the cursor to the item to be selected. Menu language Press qp buttons to Menu Language, then use t 2. Press t u buttons to make the desired adjustments. u buttons to select menu language, the options are 3. - Page 25 From the Setup Menu, press qp buttons to XVS, to enter the XVS menu. Use the t u buttons to select ON or OFF. XVS menu. Use the t u buttons to select ON or OFF. SunBriteTV Model SB-6560HD Operator’s Manual Page 25...
-
Page 26: Lock Menu
Adjusting On-Screen Displays – Lock Menu Lock Menu Press qp buttons to move the cursor to the Enter Password selection. Press “Enter Password” to enter the password. (The default password is 0000.) To change the Password, press the u button to enter the Lock Menu submenu Lock Menu Sub-Menu Change password... - Page 27 D: Dialog (sexual) Us Menu MPAA From the Us Menu, press qpbuttons and use t u buttons to select one of N/A / G / PG / PG-13 / R / NC-17 / X. SunBriteTV Model SB-6560HD Operator’s Manual Page 27...
- Page 28 Adjusting On-Screen Displays – Lock Menu Lock Menu Sub-Menu Canada Press the u button to enter the submenu for the Canadian rating functions. Canada Menu Canada English Press the t u button to select one of E / C / C8+ / G / PG / 14+ / 18+.
-
Page 29: Channel Menu
Press the u button to enter the submenu list below Auto Scan Cable system Press the t u button to select the cable system. Start to Scan Press the u button to start auto scan. SunBriteTV Model SB-6560HD Operator’s Manual Page 29... - Page 30 Adjusting On-Screen Displays – Channel Menu Favorite Favorite From the Channel Menu, press the qp buttons to select Favorite. Press the u button to enter the submenu shown at left. Press qp keys to select channels, and press OK to add current channel to Favorite Channel Table.
-
Page 31: Trouble Shooting
This is common to all LCD screens used in display and television products, and is not specific to SunBriteTV. For more information, Picture is too dark Adjust your contrast, brightness and lamp settings from the OSD Menu see SunBriteTV’s Pixel Quality Policy in this manual. -
Page 32: Care Of Sunbritetv
A “special outdoor formula” LCD Cleaning Kit is now available and can be ordered from SunBriteTV. 2. When the TV is not in use, keep it covered with the SunBriteTV Outdoor Dust Cover The fi tted dust cover is constructed with weatherproof 4-ply polypropylene UV protection fabric that protects the window from direct and indirect sunlight, and keeps wind-blown objects from scratching the surface of the window. -
Page 33: Specifications
68.0” W x 48.0” H x 13.0” D Shipping Weight 185.0 lbs. Residential Warranty Two-year parts and labor Commercial Warranty One-year parts and labor Specifications are subject to change. *Temperature range is for operation in shaded location. SunBriteTV Model SB-6560HD Operator’s Manual Page 33... -
Page 34: Features Information And Instructions
Programming Other Manufacturers’ Universal Remote Control Devices When programming a DirectTV, local cable universal remote control or Control system, you may find that SunBriteTV is not on the list of TV manufacturers. If that is the case, this model supports SONY’s universal remote code. -
Page 35: Ir Emitter Installation
* Neither the emitter or control block are supplied by SunBriteTV. See instructions that come with your IR Emitter and control block to determine how to make the connections. -
Page 36: Appendix A - Rs232 Control Codes
Appendix A - RS232 Control Codes RS 232 Control codes SunbriteTV Com Spec: 9600,8,1,n Function ASCII Command Received Response Command Executed Response from TV to control system from TV to control system Model Class ID [ESC]? 1B 3F [B3220AHD-X.XX] or [B4610AHD-X.XX]... -
Page 37: Appendix B - Rs232 Control Cable Pinout
Com Specs: 9600 baud 8 data, 1 stop, no parity Rx Data Tx Data Ground From control to control system system SunbriteTV RS232 Control Cable SIZE FSCM NO DWG NO July 17 2007 Preliminary 1 OF 1 SCALE SHEET SunBriteTV Model SB-6560HD Operator’s Manual Page 37... - Page 38 This page is intentionally left blank.
