Veranda 4K Operator's Manual
Models: SB-4374UHD-BL
SB-5574UHD-BL
SB-6574UHD-BL
SB-7574UHD-BL
MVE-002-00
Revision 171129_1035

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Veranda SB-7574UHD-BL and is the answer not in the manual?

Questions and answers

Summary of Contents for SunBriteTV Veranda SB-7574UHD-BL

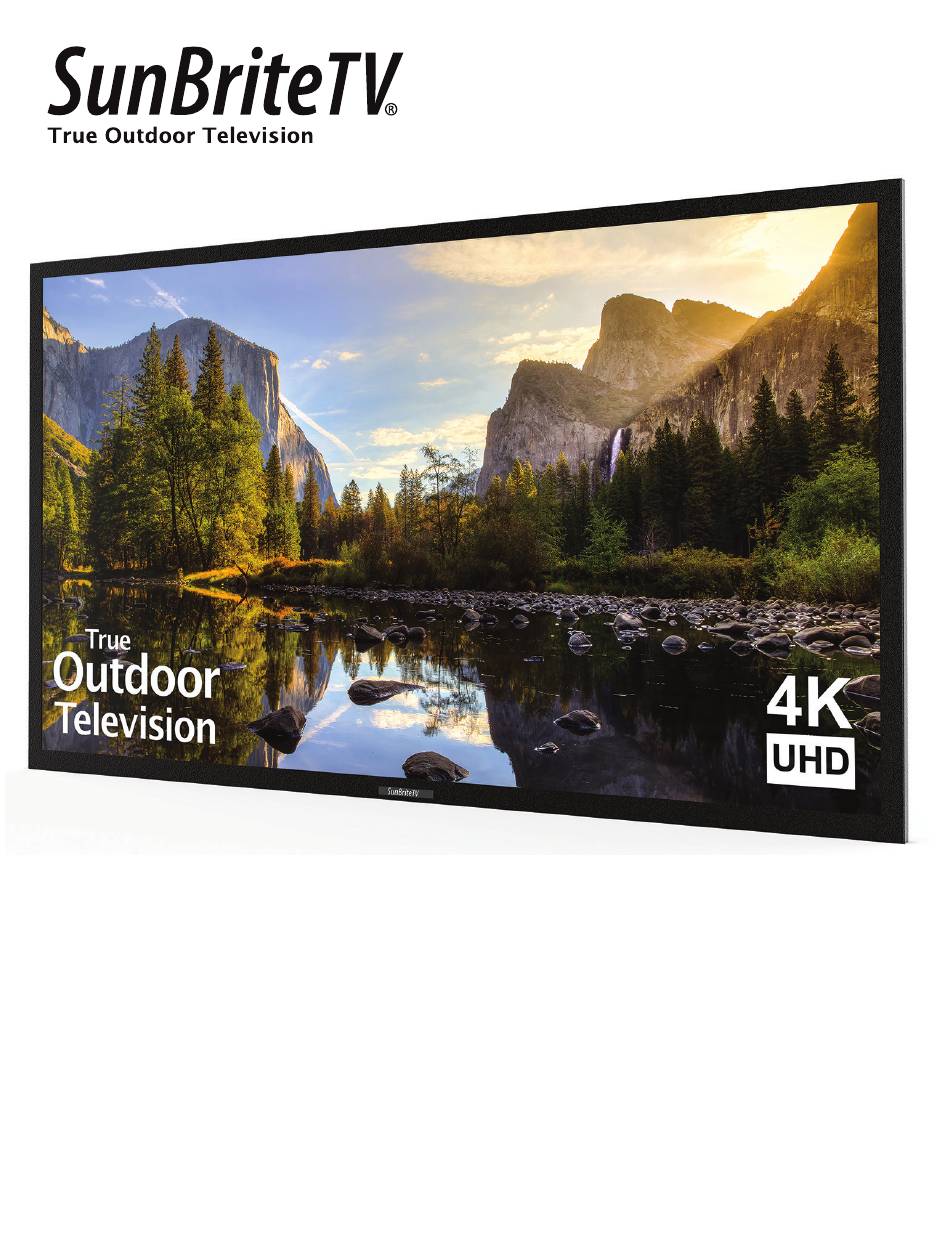

  • Page 1 Veranda 4K Operator’s Manual Models: SB-4374UHD-BL SB-5574UHD-BL SB-6574UHD-BL SB-7574UHD-BL MVE-002-00 Revision 171129_1035...
  • Page 2 Dear SunBriteTV Customer: Congratulations on the ownership of your SunBriteTV all-weather outdoor LCD TV, and welcome to the family of satisfied SunBrite customers. You are in great company, with thousands of homeowners and esteemed commercial facilities such as Yankee Stadium, Fenway Park, Disney World, and Sea World who have trusted us to deliver superior performance, lasting durability and the enjoyment of superb television viewing in the great outdoors.
  • Page 3: Important Safety Instructions

    Power Source: SunBriteTV must operate on a power source indicated on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. When using the TV outdoors, you must use a GFI- protected AC outlet with “in-use”...
  • Page 4 Do not service SunBriteTV yourself: Removal of the television screen cover may expose you to high voltage or other dangerous risks. Refer all servicing to a qualified service professional. Warranty will not be honored if you service the unit yourself.
  • Page 5: Table Of Contents

    Appendix ..........................................54 Specifications ................................................56 Features Information and Instructions ......................................59 Programming Other Manufacturers’ Universal Remote Control Devices ..........................59 SunBriteTV Pixel Quality Policy ..........................................59 Extreme Climate Warning ............................................59 Appendix B - RS232 Control Codes ........................................60 SunBriteTV Veranda 4k Operators Manual Page 5...
  • Page 6: Supplied Accessories

    Supplied Accessories UNPACKING After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. • SunBriteTV LCD Television •...
  • Page 7: Choose A Location For The Tv

    LCD panel, and will not cause damage to the screen. Either turn the screen away from the sun, or apply shade to the TV, and the dark areas will quickly disappear. SunBriteTV Veranda 4k Operators Manual Page 7...
  • Page 8: Tv Installation

    TV Installation REAR PANEL INTERNAL CONNECT SOURCE WARNING: Do not connect the power source before making connections. Internal Connect Source through the cable access door. The Internal Connect Source allows you to easily connect to the Audio, Optical, Video, HDMI, and Audio Out. The Internal Connect Source is inside the Cable Cover located on the back of the unit (Figure 1).
  • Page 9: Rear Panel Internal Connect Source

    From left to right, connect green, blue and red for video, and then connect white for left channel audio, red for right channel audio. Use the Source Button to select Component to view this connection. Cable/Antenna In: This connection is for digital or analog cable via cable box or over-the-airwave antennas. SunBriteTV Veranda 4k Operators Manual Page 9...
  • Page 10: Rear Panel Connections

    TV Installation REAR PANEL CONNECTIONS SB-7574UHD-BL HDMI A. HDMI 2: Connects to devices that use HDMI cables such as Blu-ray or HD DVD player or HD cable / satellite set-top box. This connection port receives pure digital audio and high definition signal through one single cable. This port also can accept a HDCP video device for video or PC for monitor display usage.
  • Page 11 Video Game Toslink* 1&2 (HD 720i, Console, Capable) 480p,480i High Definition Cable or Satellite set RCA Audio Plug top box 3.5 Audio jacks** Requires an adaptor cable on SB-7574UHD-BL. ** Available on SB-7574UHD-BL only. SunBriteTV Veranda 4k Operators Manual Page 11...
  • Page 12 TV Installation REAR PANEL CONNECTIONS (CONTINUED) SWITCHING SOURCES FOR PORTS: Port Picture Cable Used Source Name to Select Your SunBrite TV offers several options when connecting your devices to the TV. The chart below will help you HDMI or HDMI1- HDMI4 understand which source you switch to for each of the HDMI-DVI ports.
  • Page 13 • Refer to the DVD player’s manual to make sure the DVD player is configured to output correctly to the TV. • This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Veranda 4k Operators Manual Page 13...
  • Page 14 • This model supports SONY’s universal remote code. If 6. Connect the red color connector to both your set-top box SunBriteTV is not listed, please look up SONY’s codes in and Component 1’s red connector port off the back of your your universal remote’s hand book.
  • Page 15 3. Connect the transmitter to the RJ45 port in the TV with category cable. 4. Note: Power may need to be supplied to HDBaseT transmitters not equipped with a Power over Ethernet feature. SunBriteTV Veranda 4k Operators Manual Page 15...
  • Page 16 TV Installation CONNECTING THE POWER CORD WARNING: TV AND GFCI RECEPTACLE MUST BE INSTALLED AT LEAST 5 FEET AWAY FROM STANDING WATER, SUCH AS (BUT NOT LIMITED TO) A POOL OR SPA. Connect the power cord after you have made connections to your video equipment. Connect the power cord to a GFCI-protected AC outlet with “in-use”...
  • Page 17: Remote Control Guide

    The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Care Center. SunBriteTV will repair or replace the remote control at SunBriteTV’s option.
  • Page 18: On-Screen Display Functions

    On-Screen Display Functions VIA THE REMOTE CONTROL VIA THE TV SIDE PANEL BUTTONS Adjusting the On Screen Display (OSD) from the Remote Control Adjusting the On Screen Display from the TV Side Panel Buttons Menu: This button opens the OSD CH (+): This button changes the channel to a higher number and also functions the up direction of OSD buttons to move the cursor...
  • Page 19: Watching Tv

    2. Press / to select the input source. • An image from the selected source automatically displays. Note: You can also select the input source by pressing INPUT. The input source toggles each time INPUT is pressed. SunBriteTV Veranda 4k Operators Manual Page 19...
  • Page 20: Initial Installation

    Watching TV INITIAL INSTALLATION Perform the following steps before you press POWER on the remote. 1. Insert the batteries into the remote. 2. Connect the antenna cable to the TV. 3. Plug in the AC cord to the AC outlet. EASY SETUP - INPUT SELECTION Select the input sources Antenna/Cable/Set top box (Cable, Satellite, Disc Player)
  • Page 21 Air/Cable (Antenna setting) Make sure what kind of connection is made with your TV when selecting “Air” or “Cable”. 4. Press / to select “Air” or “Cable”. 5. Press ENTER to enter the setting. SunBriteTV Veranda 4k Operators Manual Page 21...
  • Page 22 Watching TV INITIAL INSTALLATION (CONTINUED) CH Search (Channel Search) Channel auto search makes the TV look for all channels viewable in the set area. When “Air” is selected in Antenna setting: 1. Press / to select “Start”, and then press ENTER. When “Cable”...
  • Page 23: Direct Button Operation

    CHANGING VOLUME You can change the volume by pressing VOL +/- on the TV or on the remote. • To increase the volume, press VOL +. • To decrease the volume, press VOL -. SunBriteTV Veranda 4k Operators Manual Page 23...
  • Page 24 Direct Button Operation MUTE Mutes the current sound output. Press MUTE. will be displayed on the screen, and the sound is silenced. FREEZE Allows you to capture and freeze a moving image that you are watching. Press FREEZE. • A moving image is captured. •...
  • Page 25: Audio

    Press ENTER to toggle between audio modes. Example: when receiving Digital broadcasting NOTE • MTS only operates while in TV mode. • You can have the same settings by choosing “Change Audio” on the menu items. SunBriteTV Veranda 4k Operators Manual Page 25...
  • Page 26: Sleep Timer

    Direct Button Operation SLEEP TIMER Allows you to set a time when the TV automatically switches to standby. Press SLEEP. • The remaining time displays when the sleep timer has been set. • Each time you press SLEEP, the remaining time switches as shown below. •...
  • Page 27: Picture Mode

    VIVID(Store): Changes the image and sound settings to the factory preset values. No adjustments are allowed. NOTE • PC only available using HDMI input. NOTE • You can select different picture settings for each input. SunBriteTV Veranda 4k Operators Manual Page 27...
  • Page 28: Closed Captions And Digital Closed Captions

    Direct Button Operation CLOSED CAPTIONS AND DIGITAL CLOSED CAPTIONS Your TV is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider.
  • Page 29: Aspect Mode

    In either case, the image fully fills the screen. SunBriteTV Veranda 4k Operators Manual Page 29...
  • Page 30 Direct Button Operation ASPECT MODE (CONTINUED) For 4:3 programs Example: Screen size images Side Bar S. Stretch (Smart Zoom Stretch Stretch) Suitable for viewing Suitable for stretching Suitable for viewing This mode is useful conventional 4:3 4:3 programs to fill the wide-screen 2.35:1 for 1.78:1 DVDs.
  • Page 31 • The order of explanations for each menu item in the following pages is not necessarily in accordance with the alignment of the items on the screen. SunBriteTV Veranda 4k Operators Manual Page 31...
  • Page 32 On-Screen Display Menu ON-SCREEN DISPLAY MENU OPERATION Press MENU to display the MENU screen. 2. Press / to select the desired menu. • Press / to select a specific adjustment item, and then press ENTER. • Additional related adjustment items may be displayed. Press / to select the desired item.
  • Page 33: Menu Operation Buttons

    Button operations on the control panel correspond to the ones on the remote control as shown below. MENU: MENU on the remote control. INPUT: ENTER on the remote control. CH +/- : Cursor / on the remote control. VOL+/-: Cursor / on the remote control. SunBriteTV Veranda 4k Operators Manual Page 33...
  • Page 34: Tv Channel Setup

    On-Screen Display Menu INITIAL SETUP NOTE • For operating the on-screen display menu, see page 30. EASY SETUP Configuration Wizard to select input source and channel scan. TV CHANNEL SETUP Select Cable/Air and scan for channels. Note: Input source TV must be selected AIR/Cable Select over the air broadcast or cable coax connection Channel Search...
  • Page 35: Advanced

    Channel Strength: Input the 2-digit channel number to check the signal strength of the selected channel. Make sure the signal is strong enough for each channel. • This function is available for DIGITAL (Air) only. SunBriteTV Veranda 4k Operators Manual Page 35...
  • Page 36: Individual Setup

    On-Screen Display Menu INITIAL SETUP (CONTINUED) INDIVIDUAL SETUP Secret No. Allows you to use a secret number to protect certain settings from being accidentally changed. IMPORTANT: Three conditions must be met to enable the V-Chip 1. Secret No. is registered. 2.
  • Page 37 • While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality and mature themes. • When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian French ratings. SunBriteTV Veranda 4k Operators Manual Page 37...
  • Page 38 On-Screen Display Menu INITIAL SETUP (CONTINUED) INDIVIDUAL SETUP Parental Control (Parental Control Setting) Canadian English Ratings E: Exempt: Includes news, sports, documentaries and other information programming; talk shows, music videos, and variety programming. C: Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being.
  • Page 39: Advanced Settings Detail

    Select the aspect ratio of the video content Stretch/Full Screen/S. Stretch/Zoom Freeze Freeze the video image Change Audio Change the audio channel on a TV or Cable program. Change CC Change the Closed Caption on a TV or Cable program. SunBriteTV Veranda 4k Operators Manual Page 39...
  • Page 40: System Options

    On-Screen Display Menu SYSTEM OPTIONS NOTE For operating the on-screen display menu, see pages 33–38. POWER CONTROL Power control setting allows you to save energy. Audio Only When this function is on, the TV will turn off the video image but will continue to play audio.
  • Page 41: Information

    “Reset”, press ENTER, press / Advanced Select this option to adjust advanced picture color settings. Details on the next page. Reset Returns picture Settings to their factory preset values. To reset, select “Yes” and then press ENTER. SunBriteTV Veranda 4k Operators Manual Page 41...
  • Page 42 On-Screen Display Menu PICTURE SETTINGS (CONTINUED) ADVANCED Motion Enhancement Use Motion Enhancement to view fast-action video more clearly. Low/High/Off NOTE • “Motion Enhancement” may cause image noise. If this occurs, turn the function “Off”. C.M.S. (Color Management System) Color tone is managed using the six-color adjustment setting. C.M.S.-Hue: This is a standard to adjust the color either more reddish or more bluish in tone.
  • Page 43: Audio Settings

    Returns picture Settings to their factory preset values. To reset, select “Yes” and then press ENTER. EQUALIZER SETTINGS Select to adjust sound equalizer RESET Returns Audio Settings to their factory preset values. To reset, select “Yes” and then press ENTER. SunBriteTV Veranda 4k Operators Manual Page 43...
  • Page 44: Preparation

    USB Photo/Music/Video Playback PREPARATION You can connect the TV to a USB memory device to view pictures, listen to music, and watch videos. NOTE • Depending on the USB memory device, the TV may not be able to recognize the recorded data. •...
  • Page 45: Usb Photo/Music/Video Playback

    Photo file format JPEG (.jpg) (DCF2.0 compliant) Music file format NMP3 (.mp3) Bitrate: 32k, 40k, 48k, 56k, 64k, 80k, 96k, 112k, 128k, 160k, 192k, 224k, 256k, 320kbps Sampling frequency: 32k, 44.1k, 48kHz SunBriteTV Veranda 4k Operators Manual Page 45...
  • Page 46 USB Photo/Music/Video Playback SELECTING THE FOLDERS TO PLAY BACK (CONTINUED) Video File Format File Extension Container Video Audio .avi MPEG-1 MPEG-Audio MPEG-4 SP/ASP(XviD) LPCM MPEG-4 AVC (H.264) MS-ADPCM Motion JPEG .mkv MPEG-1 MPEG-Audio MPEG-2 LPCM MPEG-4 SP/ASP(XviD) MS-ADPCM MPEG-4 AVC (H.264) .asf MPEG-4 SP/ASP(XviD) LPCM...
  • Page 47: Playing Back Files On A Usb Memory Device

    Return to the thumbnail selection screen. Left Arrow Previous file Down Arrow Displaying/hiding operation guidance Right Arrow Next file NOTE • Rotating photos only applies to the temporarily selected item and this setting is not saved. SunBriteTV Veranda 4k Operators Manual Page 47...
  • Page 48: Music Mode

    USB Photo/Music/Video Playback PLAYING BACK FILES ON A USB MEMORY DEVICE (CONTINUED) MUSIC MODE Buttons for Music Mode Buttons Description Select a desired item. ENTER When selecting a folder icon: Enter this directory. When selecting a music file: Play music BACK Return to the previous process.
  • Page 49: Video Mode

    Buttons for Slide Show Operation Buttons Description Fast forward Fast rewind BACK Go back to the file selection screen. NOTE • Rotating photos only applies to the temporarily selected item and this setting is not saved. SunBriteTV Veranda 4k Operators Manual Page 49...
  • Page 50: Using Link Operation

    Using LINK Operation CONTROLLING HDMI EQUIPMENT USING LINK OPERATION* *Option not available on SB-7574UHD-BL only WHAT’S LINK OPERATION? • Using the HDMI CEC (Consumer Electronics Control) protocol, with LINK Operation you can interactively operate compatible system equipment (Blu-ray disc equipment, AV amplifier, DVD). •...
  • Page 51 • If the TV audio cannot be output from the AV amplifier even after making the necessary settings, connect the TV to the AV amplifier with an optical fiber cable and select "Off". SunBriteTV Veranda 4k Operators Manual Page 51...
  • Page 52: Using A Smartphone With The Tv

    Using LINK Operation USING A SMARTPHONE WITH THE TV This function enables you to connect the TV to a smartphone that supports Mobile High-Definition Link (MHL™ ) using an MHL cable. To connect the TV to your MHL-compatible smartphone, be sure to use an MHL cable (commercially available).
  • Page 53: Troubleshooting

    - Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certified cable to the HDMI 2 terminal, connect an RCA audio to Ø 3.5 mm stereo minijack cable to the AUDIO IN terminal and set “Audio Select” to “HDMI+Analog”. Page 38 SunBriteTV Veranda 4k Operators Manual Page 53...
  • Page 54: Care Of Sunbritetv

    (do not spray the solution directly on the panel) and gently clean the panel. 3. When the TV is not in use, keep it covered with the optional SunBriteTV Outdoor Dust Cover: • The fitted dust cover is designed to protect the LCD panel from the harmful UV rays from direct sunlight, and keeps wind-blown objects from scratching the surface of the panel.
  • Page 55: Appendix

    2. Attach the stand to the TV. If necessary secure the stand to the table surface before attaching to the TV. Secure the stand to the TV using all 4 screws as shown. SunBriteTV Veranda 4k Operators Manual Page 55...
  • Page 56 Appendix NOTE • Be sure to always carry the TV by two people holding it with two hands. SETTING THE TV ON THE WALL Standard dimensions for wall mount kits are shown below. • The mounting means should be strong enough to bear the weight of the display. •...
  • Page 57: Specifications

    992mm W x 590mm H x 95mm D TV Weight 30 lbs.(31.75 kgs) Residential Warranty 1 year Commercial Warranty 1 year Vesa Mount Pattern 200mm x 200mm 10.30.2017 Specifications are subject to change. SunBriteTV Veranda 4k Operators Manual Page 57...
  • Page 58 Specifications SunBriteTV Model SB-5574HD LCD Screen 55-inch diagonal Color Active Matrix TFT LED LCD Resolution 3840 x 2160 UHD 4k Side View Front View Aspect Ratio 16:9 Contrast Ratio 4000:1 Frame Rate 60hz H/V Viewing Angle by 178 Response Time 6.5 milliseconds...
  • Page 59 TV Dimensions 58.2” W x 34” H x 4.00” D 1480mm W x 863mm H x 102mm D TV Weight 70.0 lbs.(31.75 kgs) Residential Warranty 1 year 10.30.2017 Specifications are subject to change. SunBriteTV Veranda 4k Operators Manual Page 59...
  • Page 60 Specifications SunBriteTV Model SB-7574HD LCD Screen 75-inch diagonal Color Active Matrix TFT LED LCD Resolution 3840 x 2160 UHD 4k Aspect Ratio 16:9 Contrast Ratio 4000:1 Frame Rate 60hz H/V Viewing Angle by 178 Response Time 6.5 milliseconds TV formats...
  • Page 61: Features Information And Instructions

    To locate defective pixels, the LCD panel should be examined under normal operating conditions, in its native display resolution, with a 90 degree viewing angle, from a distance of a approximately 20 inches. To qualify for replacement, a defective LCD screen must be reported to SunBriteTV within 60 days from the day the customer receives the TV.
