Summary of Contents for SunBriteTV SB-5510HD

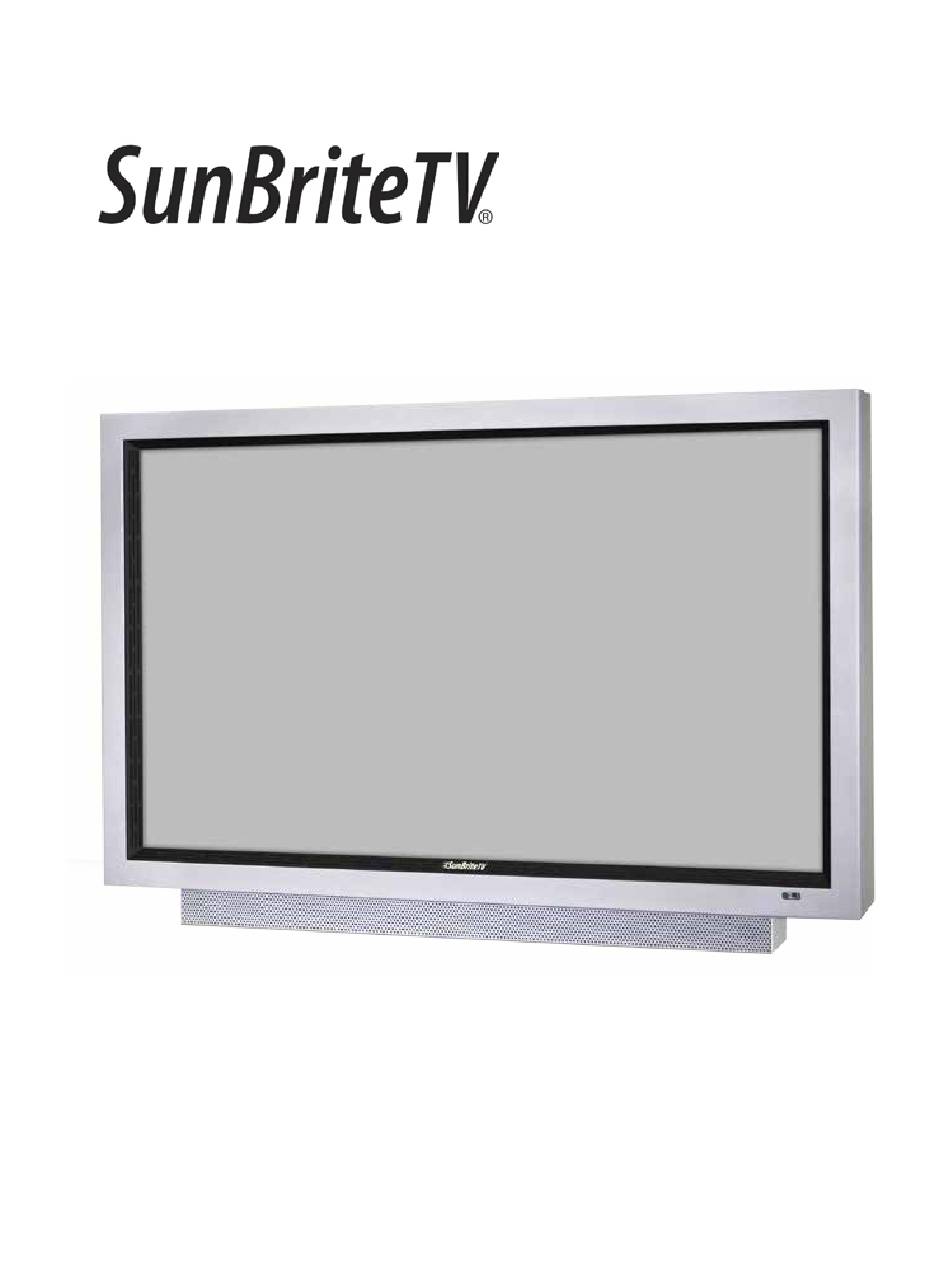

- Page 1 All-Weather Outdoor LCD Television Operator’s Manual Model SB-5510HD Rev. 5510HD-Rev318-120801 PN: M55-002-01...
-
Page 2: Important Safety Instructions
Electronic Industries Alliance: www.eia.org. Disclaimer: While SunBriteTV LLC intends to make this manual accurate and complete, we do not make claims that the information contained within covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. - Page 3 Power Source: SunBriteTV must operate on a power source indicated on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. When using the TV outdoors, you must use a GFI- protected AC outlet with “in-use”...
- Page 4 However, it is not designed to withstand pressure washers, high-pressure water jets, or hurricane-type weather. Do not service SunBriteTV yourself: Removal of the television screen cover may expose you to high voltage or other dangerous risks. Refer all servicing to a qualified service professional. Warranty will not be honored if you service the unit yourself.
-
Page 5: Table Of Contents
Features Information and Instructions Extreme Climate Warning Programming Other Manufacturers’ Universal Remote Control Devices SunBriteTV Pixel Quality Policy IR Emitter Installation Appendix A - RS232 Control Cable Pinout Appendix B - RS232 Control Codes SunBriteTV Model SB-5510HD Operator’s Manual Page 5 Page 5... -
Page 6: Supplied Accessories
Supplied Accessories Unpacking After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. SunBriteTV LCD Television Model 5510HD Remote Control with Batteries Operator’s Manual... -
Page 7: Detachable Speaker Module Installation
Speaker Cable Wire should not be placed across the bottom of the Rubber Sealing Gasket (Figure 6). Figure 6 Figure 4 Figure 5 Speaker Connector Thumb Screws Connect Source Cover Rubber Sealing Gasket Speaker Cable Speaker Cable Wire should not come out of this area SunBriteTV Model SB-5510HD Operator’s Manual Page 7... -
Page 8: Rear Panel Internal Connect Source
TV Installation – Rear Panel Internal Connect Source Rear Panel Connections WARNING: Do not connect the power source before making connections. Internal Connect Source The Internal Connect Source allows you to easily connect to the Audio, Video, S-Video, SVGA, HDMI, Audio Out, RF, RS232, and 12 VDC connectors, and the IR emitter window. -
Page 9: Rear Panel Connection Diagrams
12. ANALOG AUDIO OUT (Variable) - Used to connect headphones, stereo receivers and amplified speakers via a 3.5mm headphone jack. 13. IR WINDOW - For remote control using IR commands. 14. SPEAKER MODULE CONNECTOR - This port is for the SunBriteTV Detachable Speaker Module only. 15. 12-VOLT OUT 16. - Page 10 TV Installation – Rear Panel Connections Cable Descriptions: Connection Descriptions: Green Blue Yellow Green White Page 10...
- Page 11 2. The TV’s tuner is designed for HDTV therefore requires a stronger signal than normal TVs. If you cannot achieve that signal level with your antenna or cable, the TV might lose picture or sound. SunBriteTV Model SB-5510HD Operator’s Manual Page 11...
- Page 12 TV Installation – Rear Panel Connections CONNECTINg TO AN ANTENNA--(Continued) Connecting to Cable or Antenna through VCR Please Note : Some VCRs must be turned On before its output will have a signal to the TV. Please consult your VCR manual for further reference.
- Page 13 Reference the DVD player’s manual to make sure the DVD player is configured to output correctly to the TV. 3. This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Model SB-5510HD Operator’s Manual Page 13...
- Page 14 TV. This SunBriteTV model supports SONY’s universal remote code. If SunBriteTV is not listed in the manufacturer list, look up SONY’s codes in your universal remote’s hand book. This TV will turn off automatically if there’s no signal present for more than 15 minutes.
- Page 15 This SunBriteTV model supports SONY’s universal remote box is configured to output correctly to the TV. code. If SunBriteTV is not listed in the manufacturer list, look up SONY’s codes in your universal remote’s hand book. This SunBriteTV model supports SONY’s universal remote code.
- Page 16 TV Installation – Rear Panel Connection Diagrams CONNECTINg TO AN EXTERNAl AMPlIFIER OR AMPlIFIED SPEAKERS Connecting with Coaxial SPDIF Digital (Best) Connecting with RCA Audio Analog (good) Make sure the power of the TV and your receiver is turned Make sure the power of the TV and your receiver is turned off.
- Page 17 Refer to your PC manual for video output requirements of the video card. The VGA port of the TV features a power saving mode which will automatically turn off the TV if there is no signal provided for more than 15 minutes. SunBriteTV Model SB-5510HD Operator’s Manual Page 17...
-
Page 18: Side Panel And Front Panel Controls
TV Installation--Rear Panel Connection Diagrams Connecting the Power Cord WARNING: TV AND GFCI RECEPTACLE MUST BE INSTALLED AT LEAST 5 FEET AWAY FROM STANDING WATER , SUCH AS (BUT NOT LIMITED TO) A POOL OR SPA. Connect the power cord after you have made connections to your video equipment. Connect the power cord to a GFCI-protected AC outlet with “in-use”... -
Page 19: Remote Control Guide
The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Care Center. SunBriteTV will repair or replace the remote control at SunBriteTV’s option. -
Page 20: On-Screen Display Controls
Remote Control Guide On-Screen Display Controls On-Screen Display Menu Your TV has been factory-set to plug-in and enjoy your programming. In the event you turn on the TV and get the message, “Please run Channel Auto Scan, ” press your remote’s Menu button, press the Channel function and press Auto Scan. Note: To run the Channel function, you must be in the TV Source. -
Page 21: Picture Menu
Press qp buttons to Noise Reduction, then use t u to select Off/Weak/Middle/Strong/Auto (Overscan is not available on this model.) Press qp buttons to Adaptive Contrast, then use t u to select on/off to decide the function operation. SunBriteTV Model SB-5510HD Operator’s Manual Page 21... -
Page 22: Sound Menu
Adjusting On-Screen Displays – Sound Menu Sound Menu 1. Press qp buttons to move the cursor to the item to be selected. Sound Mode Allows you to you choose your sound preferences. 2. Press t u buttons to make the desired adjustments. Press qp buttons to Sound Mode, then use t u to 3. -
Page 23: Setting Menu
Note: VGA settings may not be available on this TV. Restore Default Press qp buttons to Restore Default, then use u button to the Restore Default control panel. SunBriteTV Model SB-5510HD Operator’s Manual Page 23... - Page 24 Adjusting On-Screen Displays – Setting Menu Parental Control Change Password The Parental Control Menu allows you to change programming options. To change settings, you must enter a password. Press qp buttons to move the cursor to the Enter Password selection. Press “Enter Password”...
- Page 25 From the US Menu, press qpbuttons to block or unblock the following ratings: PG-13 NC-17 N/A (None) Note: The curser is set to rest on the N/A rating. As you press the p button, you will automatically block each rating. SunBriteTV Model SB-5510HD Operator’s Manual Page 25...
- Page 26 Adjusting On-Screen Displays – Setting Menu Parental Control - Canada Menu From the Parental Control submenu, press qp buttons to Canada, then press u button for the Canada submenu. Canada Menu Canada English Press the t u button to select one of C / C8+ / G / PG / 14+ / 18+.
- Page 27 Press qp buttons to select Transparency, and then press t u buttons to select 0% / 25% / 50% / 75% / 100% Menu language Press qp buttons to select Menu Language, and then press t u buttons to select English/French/Spanish SunBriteTV Model SB-5510HD Operator’s Manual Page 27...
-
Page 28: Channel Menu
Adjusting On-Screen Displays – Channel Menu Channel Menu 1. Press qp buttons to move the cursor to the item to be selected. 2. Press t u buttons to make the desired adjustments. 3. When you are satisfied with your adjustments, press MENU or EXIT to exit the main menu. - Page 29 Press the t u button to select the channel No. Channel label Press the u button to enter the submenu, where you can edit the channel label. DTV Signal This item shows current DTV signal strength. SunBriteTV Model SB-5510HD Operator’s Manual Page 29...
-
Page 30: Trouble Shooting
If you have cable, call the cable provider and ask to have your signal strength checked. TV’s Universal This television follows SONY’s universal remote code. If SunBriteTV is not listed in Remote Code the manufacturer list, look up SONY’s codes in your universal remote’s hand book. -
Page 31: Care Of Sunbritetv
Also available is SunBriteTV’s special outdoor formula Cleaning Kit. OUTDOOR DUST COVER When the TV is not in use, we recommend that you keep it covered with a SunBriteTV fitted Outdoor Dust Cover. This will keep the TV clean, protect the finish and ensure years of maximum enjoyment. -
Page 32: Specifications
Specifications Specifications for SunBriteTV Model 5510HD Side View Front View LCD Screen 55-inch diagonal TFT Active Matrix Resolution 1920 x 1080 full-HD 1080p, 120 Hz Frame Rate Aspect Ratio 16:9 Contrast Ratio 5000:1 Viewing Angle Response Time 6.5 milliseconds TV formats... -
Page 33: Features Information And Instructions
Programming Other Manufacturers’ Universal Remote Control Devices When programming a DirectTV, local cable universal remote control or Control system, you may find that SunBriteTV is not on the list of TV manufacturers. If that is the case, this model supports SONY’s universal remote code. -
Page 34: Ir Emitter Installation
* Neither the emitter or control block are supplied by SunBriteTV. See instructions that come with your IR Emitter and control block to determine how to make the connections. -
Page 35: Appendix B - Rs232 Control Codes
[ESC]a 1B 61 [ASPECT] Enter [ESC]e 1B 65 [ENTER] Info [ESC]i 1B 69 [INFO] [ESC]c 1B 63 [CC] Sleep [ESC]z 1B 7A [SLEEP] Picture [ESC]p 1B 70 [PICT] Sound [ESC]s 1B 73 [SND] SunBriteTV Model SB-5510HD Operator’s Manual Page 35... - Page 36 www.sunbritetv.com...
