Summary of Contents for SunBriteTV SB-6560HD

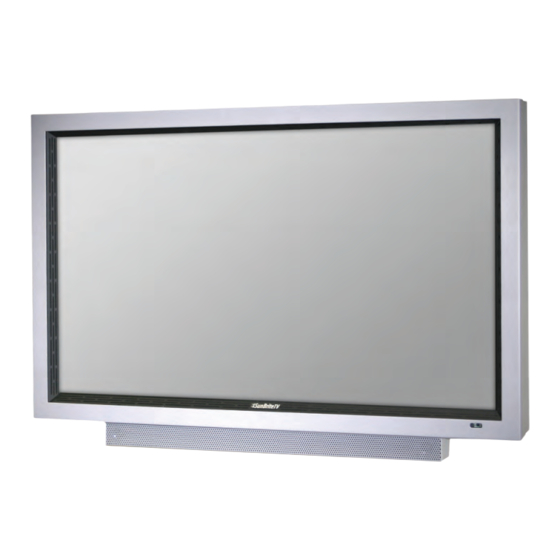

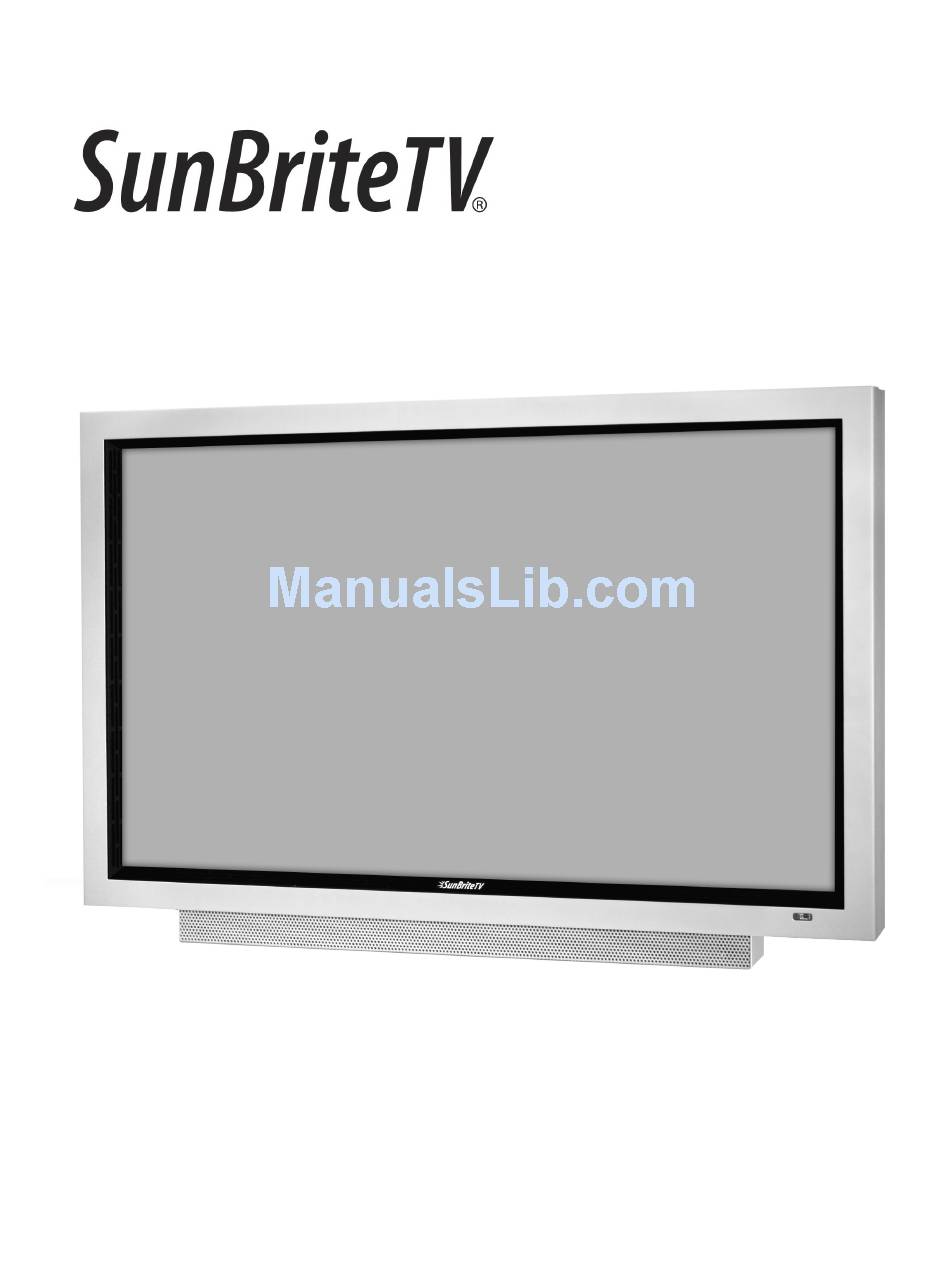

- Page 1 All-Weather Outdoor LCD Television Operator’s Manual Model SB-6560HD Rev. 6560HD-PAL-120831 PN: M65-001-02...
-
Page 2: Important Safety Instructions
Electronic Industries Alliance: www.eia.org. Disclaimer: While SunBriteTV LLC intends to make this manual accurate and complete, we do not make claims that the information contained within covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Fcc Statement
Power Source: SunBriteTV must operate on a power source indicated on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. When using the TV outdoors, you must use a GFI- protected AC outlet with “in-use”... - Page 4 However, it is not designed to withstand pressure washers, high-pressure water jets, or hurricane-type weather. Do not service SunBriteTV yourself: Removal of the television screen cover may expose you to high voltage or other dangerous risks. Refer all servicing to a qualified service professional. Warranty will not be honored if you service the unit yourself.
-
Page 5: Table Of Contents
Internal Thermostatically-Controlled Heater Programming Other Manufacturers’ Universal Remote Control Devices SunBriteTV Pixel Quality Policy SunBriteTV Dust Cover IR Emitter Installation Appendix A: RS232 Control Cable Pin-Out Appendix B: RS232 Control Codes SunBriteTV Model SB-6560HD Operator’s Manual Page 5 Page 5... -
Page 6: Supplied Accessories
Supplied Accessories Unpacking After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. SunBriteTV LCD Television Model 6560HD Remote Control with Batteries Operator’s Manual... -
Page 7: Detachable Speaker Module Installation
Speaker Cable Wire should not be placed across the bottom of the Rubber Sealing Gasket (Figure 6). Figure 6 Figure 4 Figure 5 Speaker Connector Thumb Screws Connect Source Cover Rubber Sealing Gasket Speaker Cable Speaker Cable Wire should not come out of this area SunBriteTV Model SB-6560HD Operator’s Manual Page 7... -
Page 8: Rear Panel Internal Connect Source
TV Installation – Rear Panel Internal Connect Source Rear Panel Connections WARNING: Do not connect the power source before making connections. Internal Connect Source The Internal Connect Source allows you to easily connect to the Audio, Video, S-Video, SVGA, HDMI, Audio Out, RF, RS232, and 12 VDC connectors, and the IR emitter window. -
Page 9: Rear Panel Connections
(See page 32 for installation instructions.) 13. Speaker Module Connector: This port is for the SunBriteTV Detachable Speaker Module only. 14. RS232 - The RS232 connection allows the TV to be controlled from a remote system using RS232 commands. (See Appendix A of this manual for a list of RS232 control commands and Appendix B for a Control Cable Pinout Diagram.) - Page 10 TV Installation – Rear Panel Connections Cable Descriptions: Connection Descriptions: Green Blue Yellow Green White Page 10...
- Page 11 CONNECTING TO AN ANTENNA Connecting to Digital Cable without Cable Box or Antenna: Note: For ease of install, SunBriteTV has included a Push-on Coaxial Adapter. Make sure the power to the TV is turned off. Connect the Coaxial RF cable from your antenna or...
- Page 12 TV Installation – Rear Panel Connection Diagrams CONNECTING TO A DVD PLAYER Connecting with HDMI (Best) Connecting with Component (Better) Make sure the power of TV and your DVD player is turned off. With a Component Cable, connect the green connector to the DVD player and Component 1’s green connector port on the Make sure the power of the TV and your DVD player is Connect the blue color connecor to your DVD player and...
- Page 13 Reference the DVD player’s manual to make sure the DVD player is configured to output correctly to the TV. 3. This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Model SB-6560HD Operator’s Manual Page 13...
- Page 14 HDMI 2 or 3. port off the back of your TV to the right side of your green, This SunBriteTV model supports SONY’s universal remote blue, red component connection. code. Please look up SONY’s codes in your universal Connect the red color connector to both your set-top box and remote’s hand book.
- Page 15 TV. Refer to the set-top box’s manual to make sure the set-top This SunBriteTV model supports SONY’s universal remote box is configured to output correctly to the TV. code. Please look up SONY’s codes in your universal This SunBriteTV model supports SONY’s universal remote...
- Page 16 TV Installation – Rear Panel Connection Diagrams CONNECTING TO AN EXTERNAL AMPLIFIER OR AMPLIFIED SPEAKERS Connecting with SPDIF Digital (Best) Connecting with RCA Audio Analog (Good) Make sure the power of the TV and your receiver is turned Make sure the power of the TV and your receiver is turned off.
-
Page 17: Side Panel And Front Panel Controls
In OSD menu, both keys are used to navigate within the menu. Adjusts volume. Vol+ /Vol- In OSD menu, both keys are used to navigate within menu. Vol+ is used to select the highlighted options. Front Panel IR Sensor SunBriteTV Model SB-6560HD Operator’s Manual Page 17... -
Page 18: Remote Control Guide
Remote Control Guide ON – Powers the TV On. OFF – Powers the TV Off. 0~9 – Allows you to set the channels directly. To access a digital channel, use these buttons with the (-) button to switch channels. Dash (-) – Insert the dash for selecting digital channels directly. R –... - Page 19 The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Support Team. SunBriteTV will repair or replace the remote control at SunBriteTV’s option.
-
Page 20: Initial Setup
Initial TV Setup Initial Setup When the TV is turned on, you may be presented with an initial Setup screen that will allow you to select your Language, Country and Tuner Channel scan. (In the event the Initial Set-up screen is not presented when you turn on the TV, you can manually chose these options. To set the Language screen, Press the Menu button and scroll to the OSD Language. -
Page 21: Initial Tv Setup
The Channel Menu is available only when the Digital TV or Analog TV source is selected. (Using the source button, choose the ATV or DTV input button.) The TV will now auto scan and learn the available channels. This process may take up to 15 minutes to complete. SunBriteTV Model SB-6560HD Operator’s Manual Page 21... -
Page 22: Channel Menu
On-Screen Display Menu – Channel Menu TV MODE Press Menu button on the remote control to show Channel, Picture, Sound, Time, Option, Lock menu. Press OK button to select specific submenu and the adjustable value. In the submenu, press pq or t u button to select menu item. -
Page 23: Picture Menu
Screen (this menu is only available when PC-RGB is selected) Press pq to select Screen mode, and then press OK to enter submenu in pc mode. Select this option to auto adjust the RGB timing or to fine tune the display. SunBriteTV Model SB-6560HD Operator’s Manual Page 23... -
Page 24: Sound Menu
Adjusting On-Screen Displays – Sound Menu Sound Menu Sound Mode Press pq to select Sound Mode, and then OK button, press t u buttons to select sound presets standard, music, movie, sports. Select user to select custom sound settings. Balance Press pq to select Balance, and OK button to enter submenu, press t u buttons to adjust balance value. -
Page 25: Time Menu
Press pq to select Auto Standby off and then Ok button to set and select 3h/4h etc Time Zone Press pq to select Time Zone, and then OK button to enter submenu, and press pq or t u to adjust the time zone. SunBriteTV Model SB-6560HD Operator’s Manual Page 25... -
Page 26: Option Menu
Adjusting On-Screen Displays – Option Menu Option Menu OSD Language Press pq to select OSD Language, and then OK button. Press pq or t u button to choose language choices. Audio Language Press pq to select Audio Language, and then OK button to enter submenu, and then press t u to select primary or secondary type. -
Page 27: Lock Menu
Press pq to select Block Program, and then OK button to enter the submenu and then green button to choose lock/ unlock mode. Parental Guidance Press pq to select Parental Guidance, and then OK button to select off/4/5 etc. SunBriteTV Model SB-6560HD Operator’s Manual Page 27... -
Page 28: Trouble Shooting
If you have cable, call the cable provider and ask to have your signal strength checked. TV’s Universal This television follows SONY’s universal remote code. If SunBriteTV is not listed in Remote Code the manufacturer list, look up SONY’s codes in your universal remote’s hand book. -
Page 29: Care Of Sunbritetv
A “special outdoor formula” LCD Cleaning Kit is now available and can be ordered from SunBriteTV. 2. When the TV is not in use, keep it covered with the SunBriteTV Outdoor Dust Cover The fitted dust cover is constructed with weatherproof 4-ply polypropylene UV protection fabric that protects the window from direct and indirect sunlight, and keeps wind-blown objects from scratching the surface of the window. -
Page 30: Specifications
Specifications Specifications for SunBriteTV Model 6560HD LCD Screen 65-inch diagonal TFT Active Matrix Side View Front View Resolution 1920 x 1080 full-HD 1080p Aspect Ratio 16:9 Contrast Ratio 5000:1 Frame Rate 240 Hz H/V Viewing Angle Response Time 6.5 milliseconds... -
Page 31: Features Information And Instructions
Programming Other Manufacturers’ Universal Remote Control Devices When programming a DirectTV, local cable universal remote control or Control system, you may find that SunBriteTV is not on the list of TV manufacturers. If that is the case, this model supports SONY’s universal remote code. -
Page 32: Ir Emitter Installation
* Neither the emitter or control block are supplied by SunBriteTV. See instructions that come with your IR Emitter and control block to determine how to make the Place IR Emitter Cable connections. -
Page 33: Appendix B: Rs232 Control Codes
[ESC]a 1B 61 [ASPECT] Enter [ESC]e 1B 65 [ENTER] Info [ESC]i 1B 69 [INFO] [ESC]c 1B 63 [CC] Sleep [ESC]z 1B 7A [SLEEP] Picture [ESC]p 1B 70 [PICT] Sound [ESC]s 1B 73 [SND] SunBriteTV Model SB-6560HD Operator’s Manual Page 33... - Page 34 This page is intentionally left blank.
- Page 35 This page is intentionally left blank.
- Page 36 www.sunbritetv.com...
