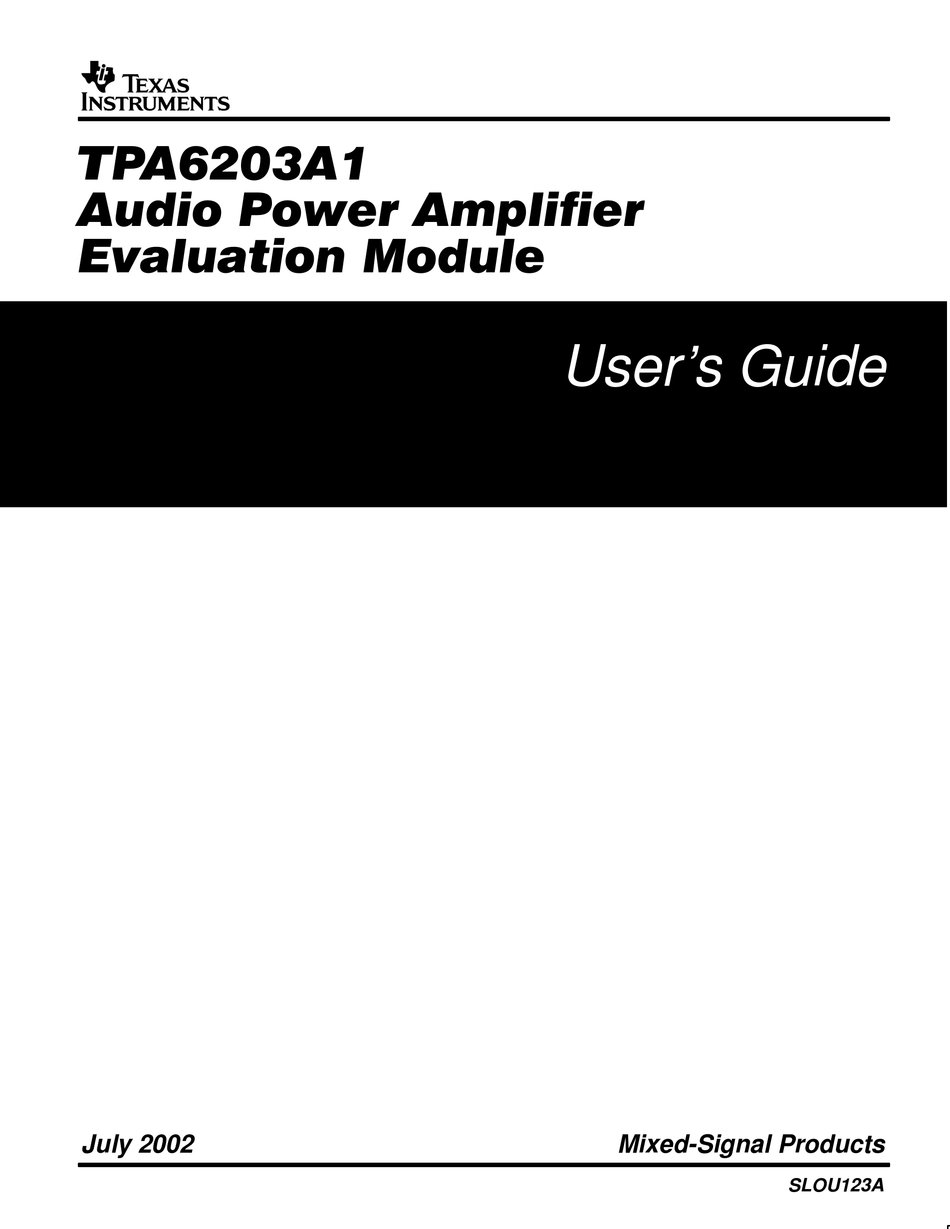

- Page 1 TPA6203A1 Audio Power Amplifier Evaluation Module User’s Guide July 2002 Mixed-Signal Products SLOU123A...
- Page 2 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
- Page 3 EVM IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product incorporating the goods.
- Page 4 EVM schematic located in the EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch. Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265 Copyright 2002, Texas Instruments Incorporated...
-
Page 5: Read This First
The information in a caution or a warning is provided for your protection. Please read each caution and warning carefully. Related Documentation From Texas Instruments TI Plug-N-Play Audio Amplifier Evaluation Platform (literature number SLOU011) provides detailed information on the evaluation platform and its use with TI audio evaluation modules. - Page 6 FCC Warning FCC Warning This equipment is intended for use in a laboratory test environment only. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference.
-
Page 7: Table Of Contents
Contents Contents Introduction ..............Feature Highlights . - Page 8 Contents...
-
Page 9: Introduction
Chapter 1 Introduction This chapter provides an overview of the Texas Instruments (TI) TPA6203A1 MicroStar Junior BGA audio amplifier evaluation module (SLOP369). It includes a list of EVM features, a brief illustrated description of the module, and a list of EVM specifications. -
Page 10: Feature Highlights
Feature Highlights 1.1 Feature Highlights The TI TPA6203A1 audio amplifier evaluation module and the TI plug-n-play audio amplifier evaluation platform include the following features: TPA6203A1 Low-Voltage Audio Power Amplifier Evaluation Module 2 mm x 2 mm MicroStar Junior Fully differential amplifier Single channel, bridge-tied load (BTL) 2.5-V and 5.5-V operation 1.25-W output power into 8... -
Page 11: Description
Description 1.2 Description The TPA6203A1 audio power amplifier evaluation module is a complete, low-power single-channel audio power amplifier. It consists of the TI TPA6203A1 1.25-W low-voltage audio power amplifier IC in a very small MicroStar Junior BGA package, along with a small number of other parts mounted on a circuit board that is approximately one and a quarter inches square (see Figure 1–1). -
Page 12: Tpa6203A1 Evm Specifications
TPA6203A1 EVM Specifications related evaluation modules. The EVMs simply plug into the platform, which automatically provides power to the modules, interconnects them correctly, and connects them to a versatile array of standard audio input and output jacks and connectors. Easy-to-use configuration controls allow the platform and EVMs to quickly model many possible end-equipment configurations. -
Page 13: Operation
Chapter 2 Operation Follow the steps in this chapter to prepare the TPA6203A1 audio amplifier EVM for use. Using the TPA6203A1 EVM with the TI plug-n-play audio amplifier evaluation platform is a quick and easy way to connect power, signal and control inputs, and signal outputs to the EVM, using standard connectors. -
Page 14: Precautions
Precautions 2.1 Precautions Power Supply Input Polarity and Maximum Voltage Always ensure that the polarity and voltage of the external power connected to V power input connector J1, J2, and/or V power input connector J6 are correct. Overvoltage or reverse-polarity power applied to these terminals can open onboard soldered-in fuses and cause other damage to the platform, installed evaluation modules, and/or the power source. -
Page 15: Quick Start List For Platform
Quick Start List for Platform 2.2 Quick Start List for Platform Follow these steps when using the TPA6203A1 EVM with the TI plug-n-play audio amplifier evaluation platform (see the platform user’s guide, SLOU011, for additional details). Numbered callouts for selected steps are shown in Figure 2–1. -
Page 16: Quick Start List For Stand-Alone
Quick Start List for Stand-Alone 2.3 Quick Start List for Stand-Alone Follow these steps to use the TPA6203A1 EVM stand-alone or when connecting it into existing circuits or equipment. Connections to the TPA6203A1 module header pins can be made via individual sockets, wire-wrapping, or soldering to the pins, either on the top or the bottom of the module circuit board. - Page 17 Quick Start List for Stand-Alone 5) Connect the SHUTDOWN pin through a normally open switch to GND. 6) Connect an 8- –32- speaker to the module OUT+ and OUT– pins. Power Up 7) Verify correct voltage and input polarity and set the external power supply to on.
-
Page 18: References
References 2.4 References 2.4.1 TPA6203A1 EVM Connected for Stereo BTL Output Figure 2–3. TPA6203A1 EVM Connected for Stereo BTL Output 5 VDC Right Audio Input (Right) 5 VDC External Mute Control Left Audio Input (Left) † Due to the very small size of the MicroStar Junior BGA IC package, the standard part number TPA6203A1 is replaced with the code AADI. -
Page 19: Tpa6203A1 Evm Schematic Diagram
TPA6203A1 Audio Power Amplifier Evaluation Module Parts List 2.4.2 TPA6203A1 EVM Schematic Diagram Figure 2–4. TPA6203A1 EVM Schematic Diagram 2.5 V to 5.5 V 100 k 10 F SHUTDOWN SHUTDOWN O– BYPASS 100 k OUT– 0.22 F 0.22 F 0.22 F IN–... -
Page 20: Tpa6203A1 Evm Pcb Layers
TPA6203A1 EVM PCB Layers 2.4.4 TPA6203A1 EVM PCB Layers The following illustrations depict the TPA6203A1 EVM PCB layers and silks- creen. These drawings are not to scale. Gerber plots can be obtained from any TI sales office. Figure 2–5. TPA6203A1 EVM Top Layer... -
Page 21: Tpa6203A1 Evm Bottom Layer
TPA6203A1 EVM PCB Layers Figure 2–6. TPA6203A1 EVM Bottom Layer Operation... - Page 22 2-10...
