80-ns Instruction Cycle Time
544 Words of On-Chip Data RAM
4K Words of On-Chip Secure Program
EPROM (TMS320E25)
4K Words of On-Chip Program ROM
(TMS320C25)
128K Words of Data/Program Space
32-Bit ALU/Accumulator
16  16-Bit Multiplier With a 32-Bit Product
Block Moves for Data/Program
Management
Repeat Instructions for Efficient Use of
Program Space
Serial Port for Direct Codec Interface
Synchronization Input for Synchronous
Multiprocessor Configurations
Wait States for Communication to Slow
Off-Chip Memories/Peripherals
On-Chip Timer for Control Operations
Single 5-V Supply
Packaging: 68-Pin PGA, PLCC, and
CER-QUAD
68-to-28 Pin Conversion Adapter Socket for
EPROM Programming
Commercial and Military Versions Available
NMOS Technology:
— TMS32020
. . . . . . . . .
CMOS Technology:
— TMS320C25
. . . . . . . .
— TMS320E25
. . . . . . . .
— TMS320C25-50

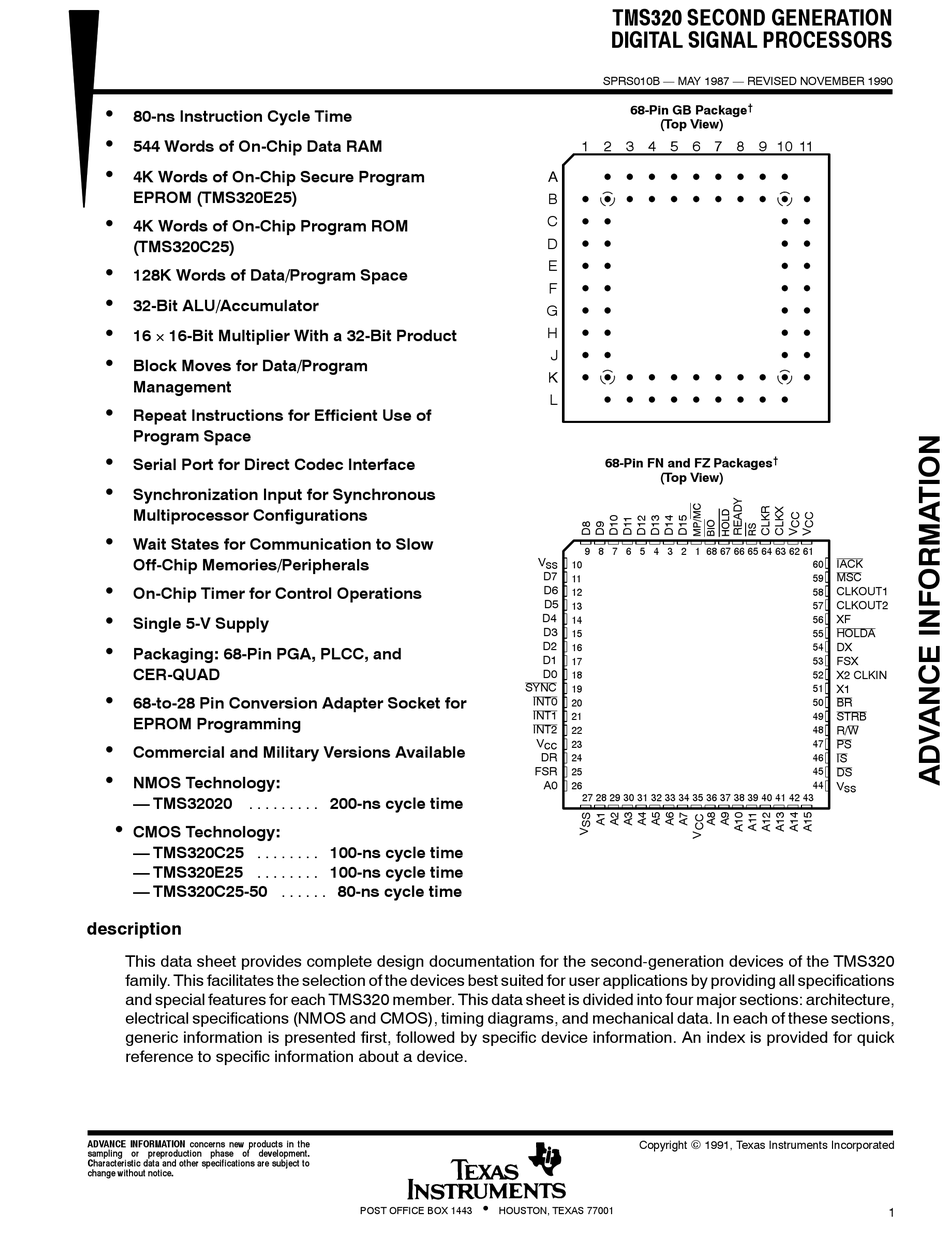

description
This data sheet provides complete design documentation for the second-generation devices of the TMS320
family. This facilitates the selection of the devices best suited for user applications by providing all specifications
and special features for each TMS320 member. This data sheet is divided into four major sections: architecture,
electrical specifications (NMOS and CMOS), timing diagrams, and mechanical data. In each of these sections,
generic information is presented first, followed by specific device information. An index is provided for quick
reference to specific information about a device.
ADVANCE INFORMATION concerns new products in the
sampling or preproduction phase of development.
Characteristic data and other specifications are subject to
change without notice.
200-ns cycle time
100-ns cycle time
100-ns cycle time
. . . . . .
80-ns cycle time
POST OFFICE BOX 1443
TMS320 SECOND GENERATION
DIGITAL SIGNAL PROCESSORS
SPRS010B — MAY 1987 — REVISED NOVEMBER 1990
68-Pin GB Package
(Top View)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
J
K
L
68-Pin FN and FZ Packages
(Top View)
9 8 7 6 5 4 3 2 1 68 67 66 65 64 63 62 61
V
10
SS
D7
11
D6
12
D5
13
D4
14
D3
15
D2
16
D1
17
D0
18
SYNC
19
INT0
20
INT1
21
INT2
22
V
23
CC
DR
24
FSR
25
A0
26
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43
Copyright
HOUSTON, TEXAS 77001
†
†
IACK
60
MSC
59
CLKOUT1
58
CLKOUT2
57
XF
56
HOLDA
55
DX
54
FSX
53
X2 CLKIN
52
X1
51
BR
50
49
STRB
48
R/W
47
PS
46
IS
45
DS
44
V
SS
1991, Texas Instruments Incorporated
1
