Tripp Lite SMART1500LCDXL Specification

Model #: SMART1500LCDXL

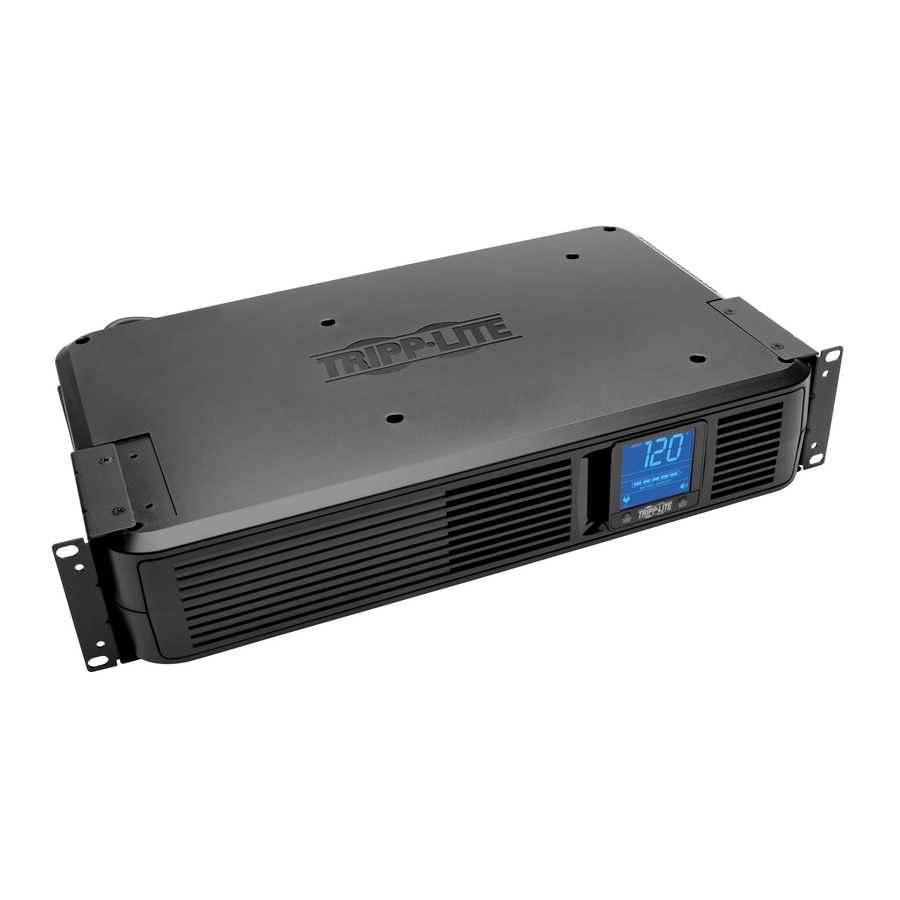

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB &
Serial ports
Description
Tripp Lite's SMART1500LCDXL Line-Interactive UPS System offers network-grade voltage regulation, surge suppression and long-lasting battery
support, ideal for network equipment, phone systems, desktop PCs and home entertainment systems. Uninterruptible Power Supply / UPS system
provides battery derived AC output to maintain continuous operation of connected equipment without data-loss during power failures and severe
voltage fluctuations. Runtime is expandable with one additional BP24V15RT2U external battery pack. Interactive LCD display offers detailed site
voltage and UPS status information, plus a variety of UPS control options. High 97% efficient line power mode operation offers reduced UPS energy
consumption and BTU heat output. Automatic Voltage Regulation / AVR circuits boost brownouts and reduce overvoltages from 75V to 147V to safe
120V nominal levels without using battery power. Included mounting accessories enable 2U horizontal rackmount installation in 2 and 4 post racks or
upright tower installation. Built-in USB and DB9 serial port enables optional unattended system shutdown in case of extended power failure using
PowerAlert UPS management software. HID-compliant USB interface enables integration with built-in power management and auto shutdown
features of Windows and Mac OS X. Built-in data line surge suppression jacks offer protection for equipment with single-line dialup, DSL or network
Ethernet connection.
Package Includes
SMART1500LCDXL UPS system
USB, serial & telephone cabling
Rack/Tower mounting kit
Owner's manual
Features
SMART1500LCDXL Line Interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
Space-saving angled NEMA 5-15P input plug; 6ft / 1.8m line cord
8 battery-supported NEMA 5-15R outlets
Maintains operation of connected equipment during power failures and voltage fluctuations
Runtime is expandable with one additional BP24V15RT2U external battery pack
LCD display reports numeric and icon-based UPS status and site power data
Select and scroll buttons enable access to UPS control, operating and LCD display settings
Numeric display reports Input Voltage, Output Voltage, Battery Charge Percentage, Output Load Percentage, Output Load Wattage and
Estimated Minutes Runtime data
Icon-based display items include 5 "bar" battery capacity, UPS operating status, replace battery and voltage regulation status
Control-mode LCD options enable external battery configuration, alarm on/off control, self-test and LCD brightness
Front-panel LCD screen rotates for horizontal or vertical installation options
97% line power mode efficiency operation
Line Interactive Automatic Voltage Regulation / AVR circuits correct brownouts and overvoltages from 75 to 147V
Included mounting accessories for 2U rackmount and tower installation
Highlights
1500VA / 1.5kVA 2U rack/tower 120V line interactive extended run UPS
Corrects brownouts and overvoltages from 75V to 147V
LCD status and configuration screen, External battery pack options
USB, DB9 serial, TEL/DSL/ethernet protection, Rackmount kit
NEMA 5-15P input, 8 NEMA 5-15R outlets
