Zhone 6610-A1-xxx Technical Specifications

Configuration and
management via RS-232C
Update firmware image
via RS-232C
TFTP download firmware
via an Ethernet
connection
PPPoA
PPPoE
Bridged Ethernet over
ATM
Routed IP over ATM
VDSL2 Bridged Modem
6610-A1-xxx
VDSL2 Bridged Modem

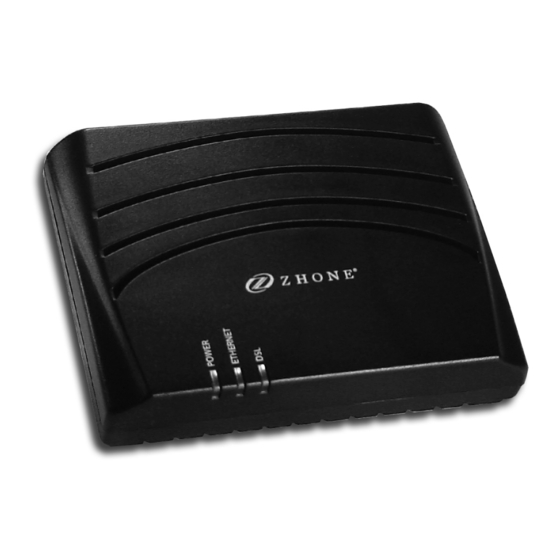

The Zhone 6610 IP-based VDSL2 Ethernet Bridge Modem uses
Conexant Accelity Packet CPE that fully complies ITU-T G.993.2
(VDSL2), G.993.1 (VDSL), ANSI T1-424, ETSI TS 101 270, and China
MII VDSL standards. It supports aggregated data rates up to 100Mbps.
It supports standard 10Base-T/100Base-TX Ethernet interface cards.
The Zhone 6610 seamlessly extends the high-speed Internet
connection, or the existing Ethernet network, to any room in the
building or house with a telephone jack. It provides up to 100Mbps
speed access at distance up to 3.65 km by sharing the existing phone
line with Plain Old Telephone Service (POTS). A serial connector
(RS-232) is provided for user to connect a host computer to configure
or view the link or configurations.
