Valcom IP Solutions VIP-411-DS User Manual

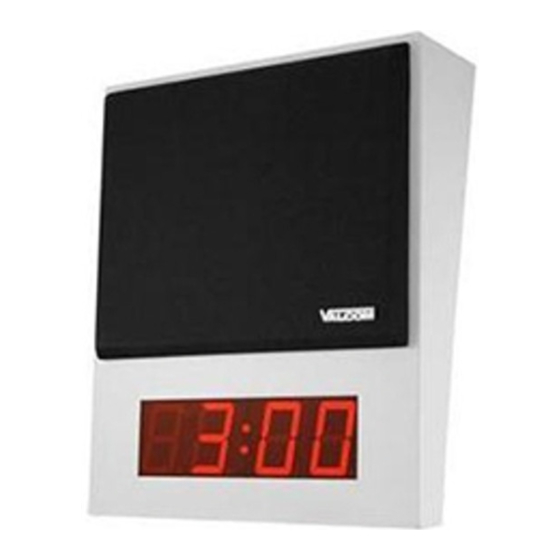

IP ONE-WAY SURFACE MOUNT SPEAKER/CLOCK ASSEMBLY
INTRODUCTION
The VIP-411-DS One-Way IP Wall Speaker with
Clock enables voice access to a single zone of
one-way paging over an IP-based LAN/WAN. This
allows a page zone extension anywhere on the
network. The speaker level is electrically adjusted
during set up. Clock synchronization is initiated via
connection to a factory preprogrammed time server.
The enclosure is made of steel with a durable gray
powder coated finish. The color of the enclosure
can easily be changed to match any decor. A
detachable black clothe grille is included. Power is
provided to the VIP-411-DS via a Power over an
Ethernet switch meeting the 802.3af specification.

SPECIFICATIONS

Access Methods
•
PBX, FXO Port w/VIP-811
•
POTS telephone set w/VIP-811
•
PBX, FXS Port w/VIP-821
•
Valcom M Cast Page Group
•
SIP – enabled telephone system
Features
•
RJ-45 network connection
•
802.3af compliant
•
High Efficiency Class-D Amplifier
INSTALLATION

FCC Information

This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case the
user will be required to correct the interference at
his own expense.
VIP-411-DS
DIMENSIONS/WEIGHT
•
14.90" H x 12.40" W x 4.67" D
(37.85cm x 31.50cm W x 11.86cm D)
•
Weight: 4.25 LBS (1.91 kg)
Environment
Temperature:
Humidity:
Precautionary Designations

Packing List

Qty.
1
1
1
1
0 to 85% non-precipitating
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified serv ice personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Item
VIP-411-DS
VSP Document
RJ-45 Patch Cable
Issue 1
Issue 1
0 to +40° C
947647
