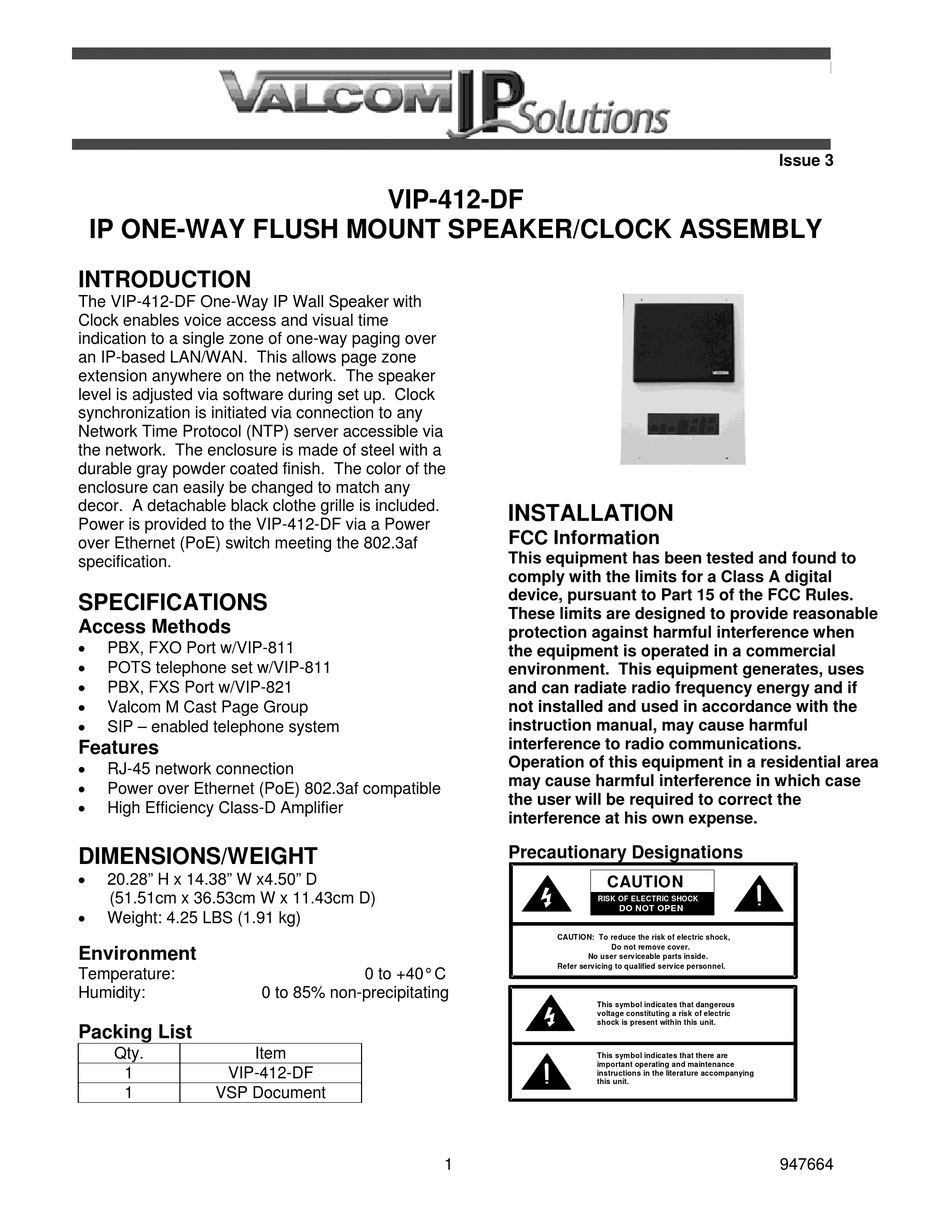

Valcom VIP-412-DF Manual

IP ONE-WAY FLUSH MOUNT SPEAKER/CLOCK ASSEMBLY
INTRODUCTION

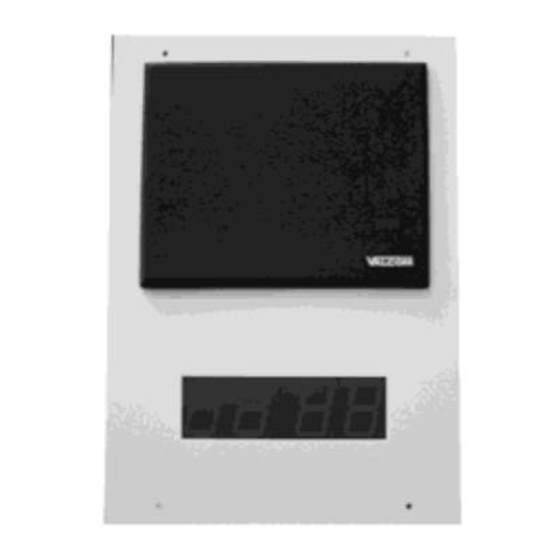

The VIP-412-DF One-Way IP Wall Speaker with
Clock enables voice access and visual time
indication to a single zone of one-way paging over
an IP-based LAN/WAN. This allows page zone
extension anywhere on the network. The speaker
level is adjusted via software during set up. Clock
synchronization is initiated via connection to any
Network Time Protocol (NTP) server accessible via
the network. The enclosure is made of steel with a
durable gray powder coated finish. The color of the
enclosure can easily be changed to match any
decor. A detachable black clothe grille is included.
Power is provided to the VIP-412-DF via a Power
over Ethernet (PoE) switch meeting the 802.3af
specification.

SPECIFICATIONS

Access Methods

PBX, FXO Port w/VIP-811

POTS telephone set w/VIP-811

PBX, FXS Port w/VIP-821

Valcom M Cast Page Group

SIP – enabled telephone system
Features

RJ-45 network connection

Power over Ethernet (PoE) 802.3af compatible

High Efficiency Class-D Amplifier
DIMENSIONS/WEIGHT

20.28" H x 14.38" W x4.50" D
(51.51cm x 36.53cm W x 11.43cm D)

Weight: 4.25 LBS (1.91 kg)
Environment
Temperature:
Humidity:

Packing List

Qty.
1 VIP-412-DF
1 VSP Document
VIP-412-DF
0 to +40° C
0 to 85% non-precipitating
Item
INSTALLATION

FCC Information

This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at his own expense.
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified serv ice personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
1
Issue 1
Issue 3
DO NOT OPEN
947664
