Valcom VIP-4122-A12 Manual

IP LAY-IN SPEAKER / ANALOG CLOCK COMBO
INTRODUCTION
The Valcom VIP-4122-A12 IP Clock with Speaker
includes a 12" Analog Clock and a 2' x 2' Lay-in
Ceiling Speaker. This provides synchronized time,
talkback intercom and loudspeaker paging from one
IP network connection. The 12" Analog Clock will
sync its time with any NTP (Network Time Protocol)
server. The enclosure is made of steel with a
durable powder coated finish. Power is provided to
both the clock and speaker via a Power over
Ethernet (PoE) switch meeting the 802.3af
specification.
SPECIFICATIONS
Features
•
Only one network connection required
•
Clock has a low-profile/semi-flush smooth
surface metal case and shatterproof
polycarbonate crystal
•
Power over Ethernet (PoE) 802.3af compatible
•
High Efficiency Speaker
DIMENSIONS/WEIGHT
•
Clock – 12.81" diameter x 1.20" depth
Weight: 3.7 lbs. (1.7 kg)
•

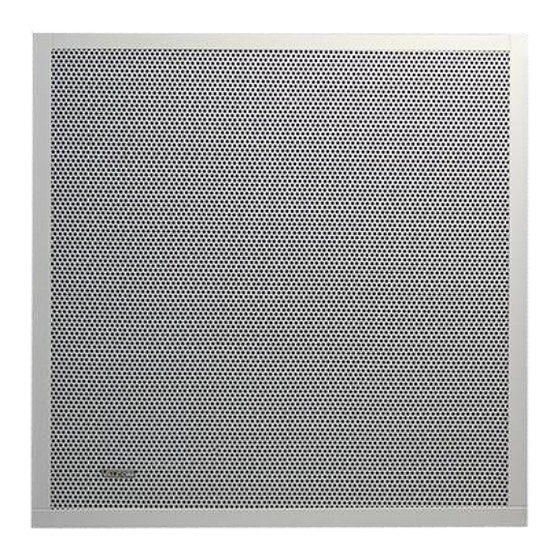

Speaker – 23.75" L x 23.75" W x 3.75" D
(60.33 cm) x (60.33 cm) x (9.53 cm)
Weight: 5.5 lbs. (2.5 kg)
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
PSE (Power Sourcing Equipment) to be compliant
to IEEE 802.3af
Environment
Temperature:
Humidity:
VIP-4122-A12
Class 3
0 to +40° C
0 to 85% non-precipitating
Precautionary Designations
•
WARNING
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
•
AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à la
pluie ou à l'humidité.
•
Apparatus shall not be exposed to dripping
or splashing and no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
•
L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l'appareil.
CAUTION: To reduce the risk of electric shock,
Refer servicing to qualified service personnel.
1
Issue 1
:
To Reduce The Risk Of Fire Or
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Do not remove cover (on back).
No user serviceable parts inside.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
947311
