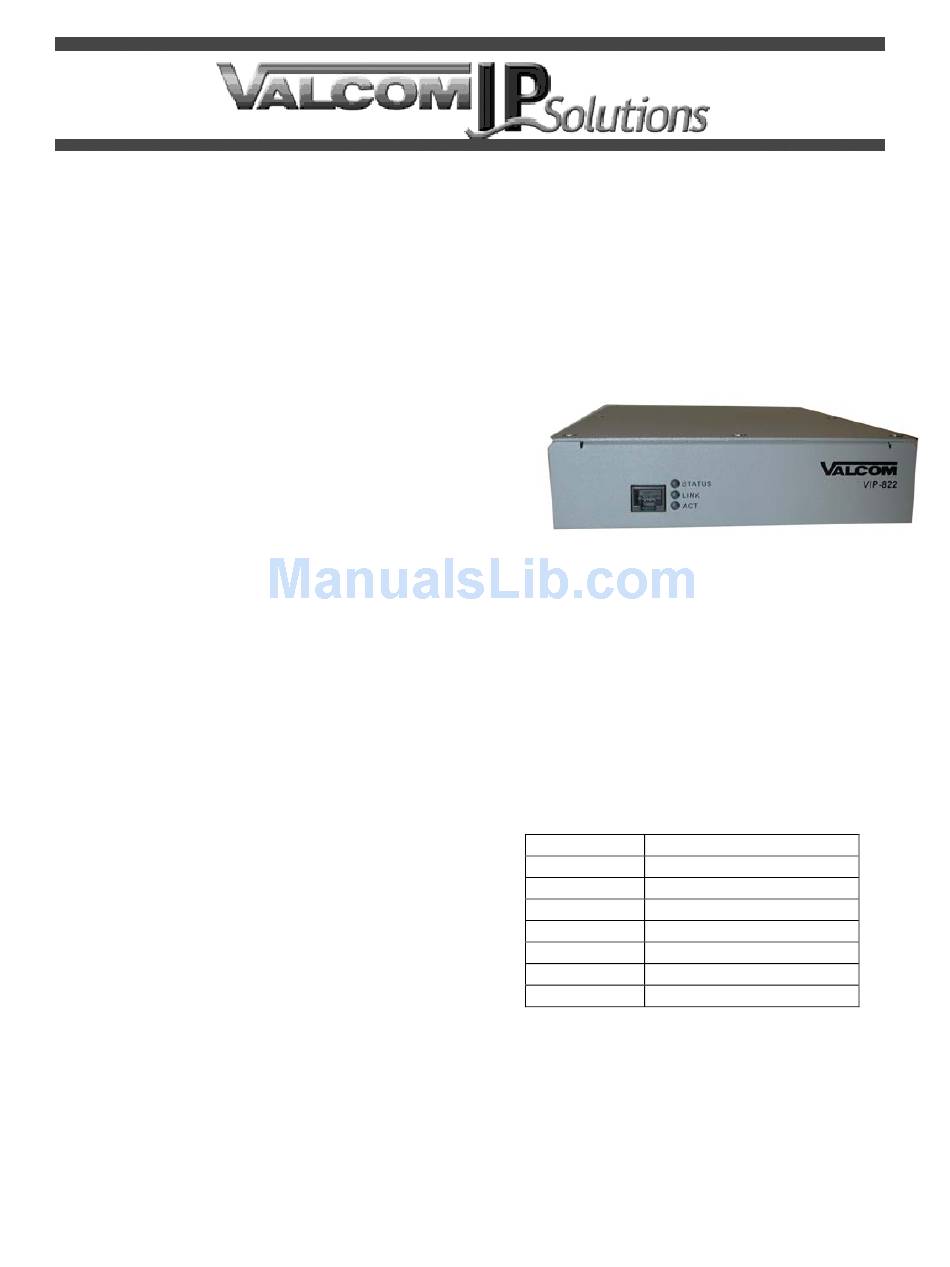

DUAL NETWORKED TRUNK PORT
INTRODUCTION
The VIP-822 Dual Networked Trunk Port allows
most loop start terminal devices to be connected to
a managed IP-based LAN/WAN.
SPECIFICATIONS
Access Methods
• PBX, FXS Port
Features
• RJ-45 for network connection
• 2 RJ-11 FXO connections
• 2 RJ-11 failover telephone connections
• Decode Caller ID signals
• Front panel activity LED
• Network activity LEDs
• 2.5mm jack for DC power
• 802.3af compliant
Dimensions/Weight
• 1.75 H x 6.75" W x 9.5" D
(4.45cm H x 17.15cm W x 24.13cm D)
• Weight: 1.75 lbs. (0.80 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
VIP-822
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity:
0 to 85% non-precipitating
Packing List
Qty
1
1
VIP-101 Setup CD
1
VSP Document
2
Mounting Brackets
4
Rubber Feet
6
Wood Screws
1
RJ-45 Patch Cables
ISSUE 1
24VDC
325mA
Class 3
0 to +40° C
Item
VIP-822
947998
