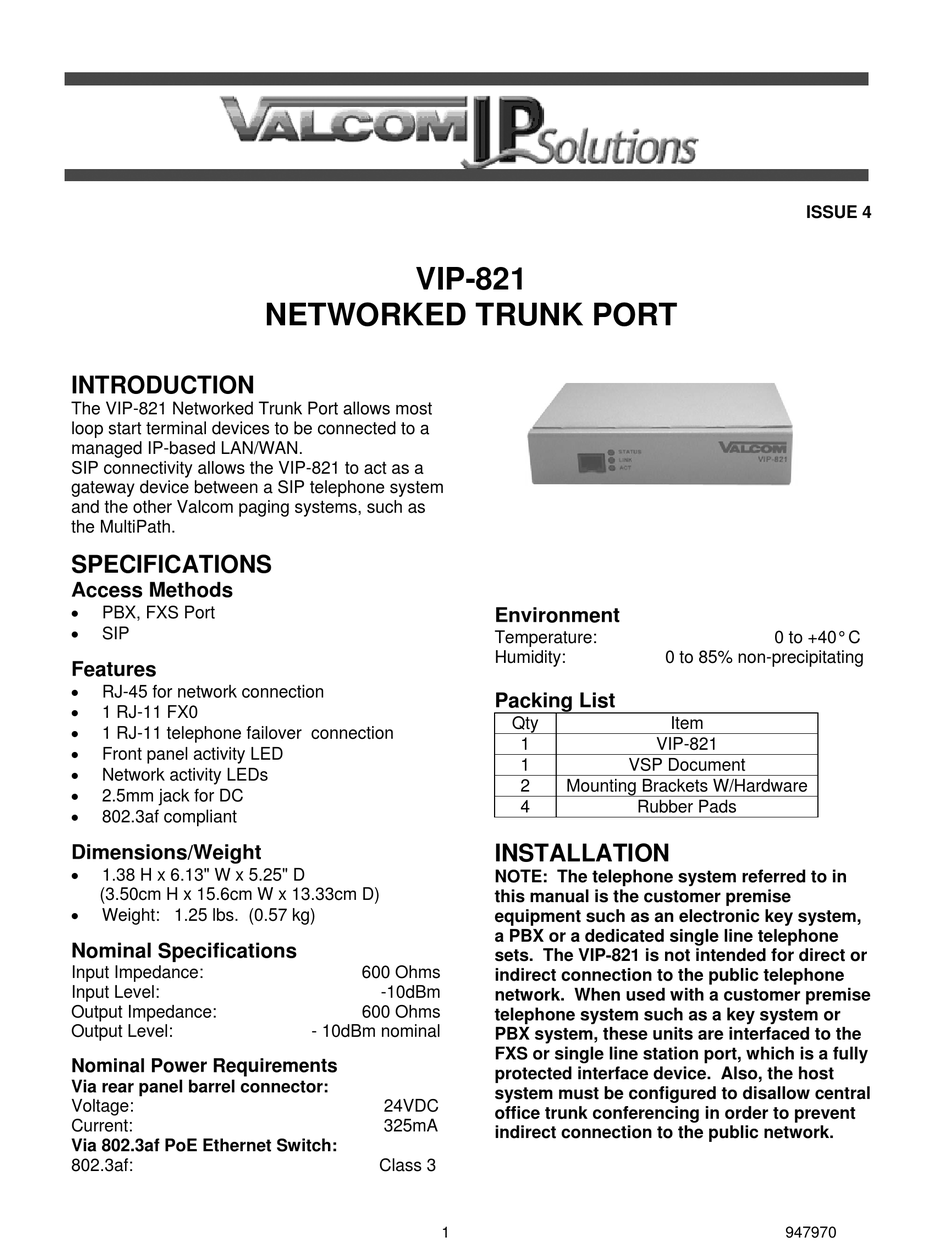

Valcom VIP-821 User Manual

INTRODUCTION

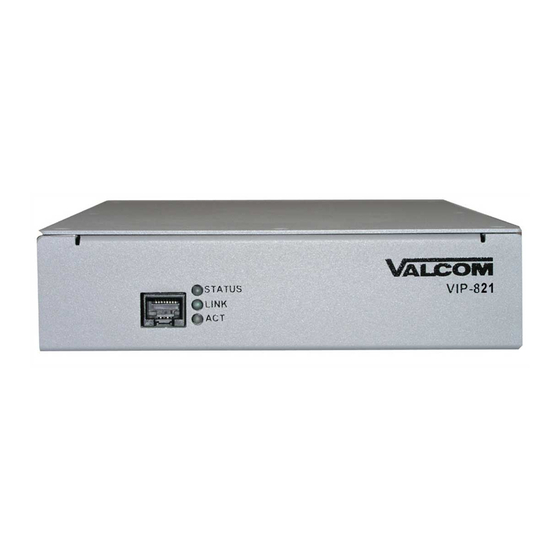

The VIP-821 Networked Trunk Port allows most
loop start terminal devices to be connected to a
managed IP-based LAN/WAN.
SIP connectivity allows the VIP-821 to act as a
gateway device between a SIP telephone system
and the other Valcom paging systems, such as
the MultiPath.

SPECIFICATIONS

Access Methods

PBX, FXS Port

SIP
Features

RJ-45 for network connection

1 RJ-11 FX0

1 RJ-11 telephone failover connection

Front panel activity LED

Network activity LEDs

2.5mm jack for DC

802.3af compliant
Dimensions/Weight

1.38 H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)

Weight: 1.25 lbs. (0.57 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
VIP-821
NETWORKED TRUNK PORT
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
24VDC
325mA
Class 3
1
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Packing List
Qty Item
1 VIP-821
1 VSP Document
2 Mounting Brackets W/Hardware
4 Rubber Pads
INSTALLATION
NOTE: The telephone system referred to in
this manual is the customer premise
equipment such as an electronic key system,
a PBX or a dedicated single line telephone
sets. The VIP-821 is not intended for direct or
indirect connection to the public telephone
network. When used with a customer premise
telephone system such as a key system or
PBX system, these units are interfaced to the
FXS or single line station port, which is a fully
protected interface device. Also, the host
system must be configured to disallow central
office trunk conferencing in order to prevent
indirect connection to the public network.
