Summary of Contents for TurboChef G5

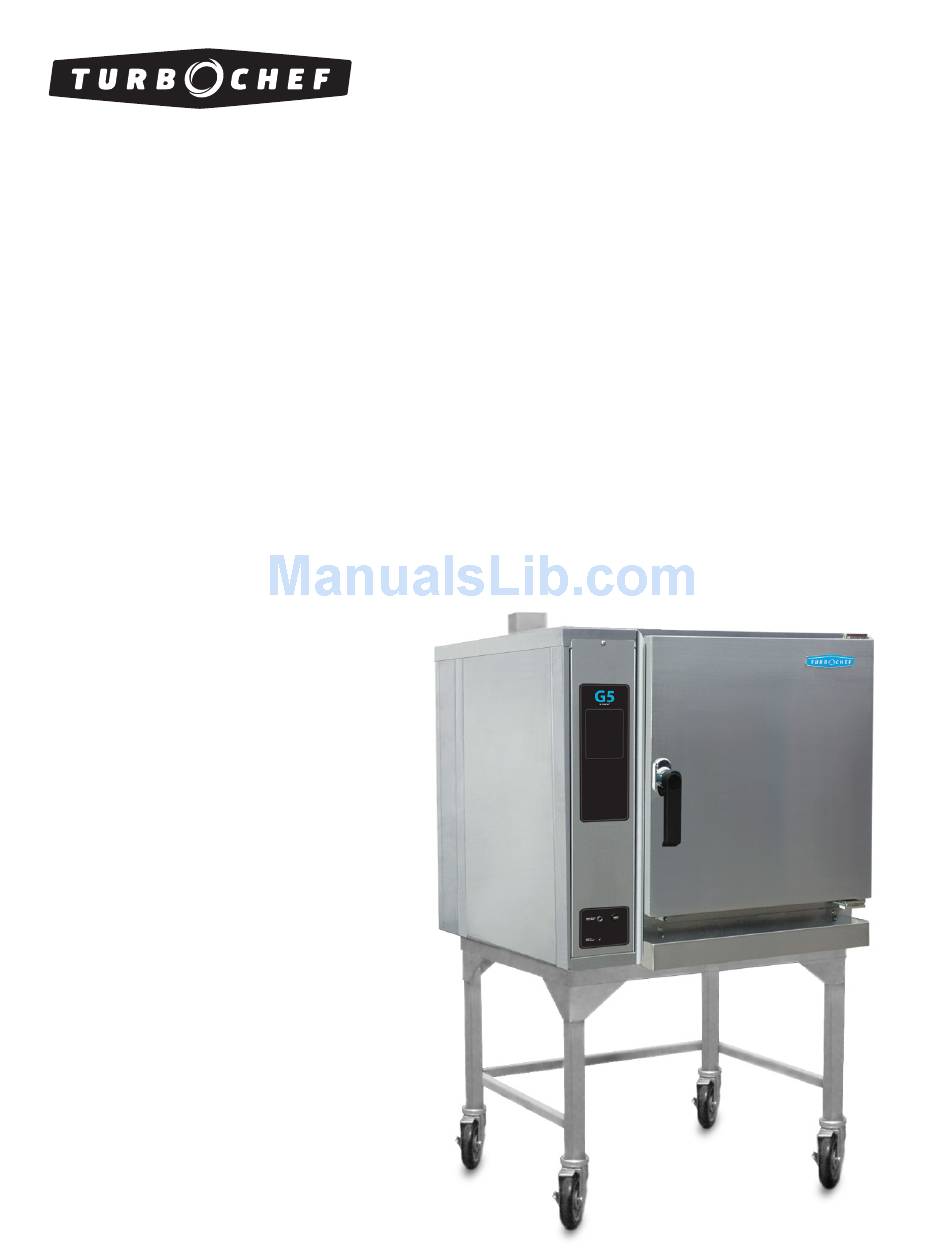

- Page 1 Owner’s Manual fo r t h e tu rb o c h ef G 5 r a p i d co o k o v e n ©2012-2013 TurboChef Technologies, Inc.
- Page 2 For further information, call 800.90 TURBO +1 214.379.6000 The information contained in this manual is important for the proper installation, use, maintenance, and repair of this oven. Follow these procedures and instructions to help ensure satisfactory baking results and years of trouble-free service. Errors –...
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions General Safety Information Reducing Fire Risk Grounding Instructions Power Cord Replacement Precautions to Avoid Possible Exposure to Excessive Microwave Energy RF Interference Considerations Specifications and Installation Theory of Operation Dimensions Certifications Oven Construction Electrical Specifications Installation Unpacking Instructions Installing the Oven... -
Page 4: Troubleshooting
Menu Edit Mode Edit Setting Names 10 (item 1) Set Menu Temperature 10 (item 2) Edit Icons 10 (item 3) Edit Cook Settings 10 (item 4) Test Cook 10 (item 5) Manager Mode Set Calendar and Time 12 (item 1) Set Fahrenheit/Celsius 12 (item 2) Set English/French... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When operating this oven, strictly adhere to the following safety precautions to reduce the risk of burns, electric shock, fire, injury, damage to oven or property near oven, or possible exposure to excessive microwave energy. GENERAL SAFETY INFORMATION Read all instructions before using this appliance. -
Page 6: Grounding Instructions
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. RF INTERFERENCE CONSIDERATIONS The G5 oven generates radio frequency signals. This device has been tested and was determined to be in compliance with applicable portions of FCC part 18 requirements and to the protection requirements of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electro- magnetic compatibility at the time of manufacture. -
Page 7: Theory Of Operation
Depth (door closed): 38.12” (968 mm) This manual includes instructions for installing, Depth (door open): 57.12” (1451 mm) cleaning, and operating the G5 oven. If you have Weight: 475 lb. (215 kg) questions that are not addressed in this manual, contact Customer Support at 800.90TURBO... -
Page 8: Certifications
- 316 stainless steel - Welded and insulated cook chamber - Removable baffle for easy cleaning Electrical Specifications TurboChef recommends a Type D circuit breaker for all installations outside the United States. United States Phase and voltage: 3 Phase, 208/240 VAC... -
Page 9: Installation
- If the oven is being placed near a grill or stove, Installing the Oven a divider must exist between the oven and the 1. The TurboChef G5 is mounted to a cart at the open heat source, with a minimum of 6” (152 factory and shipped secured to the cart. -
Page 10: Chefcomm Pro
ChefComm Limited Ventilation Part Number: CON-7016 The TurboChef G5 oven must be installed under a ChefComm Limited is a “read-and-transfer only” ventilation hood, in accordance with local HVAC version of ChefComm Pro that helps ensure menu codes and jurisdictions. -
Page 11: Daily Maintenance
Daily Maintenance Supplies and Equipment Follow the steps below when cleaning the G5 oven. TurboChef ® Oven Cleaner (Product #: 103180), TurboChef ® Oven Guard (Product #: 103181), nylon scrub pad, cleaning towel, disposable gloves, protective eyewear, dust mask (optional) -
Page 12: Cooking Modes
• Remove the lower tray to remove large particles and clean with a damp towel. Step 8: Apply TurboChef Oven Guard • Spray TurboChef Oven Guard onto a clean towel. • Wipe the oven’s interior walls and the inside of the oven door. -
Page 13: Manual Cook Mode
Manual Cook Mode Select Manual Cook Mode allows cooking “on the fly,” whereas Menu Off / Cool Down Menu Cook Mode (page 8) allows cooking from pre-set Breakfast Lunch Dinner Prep cook settings. Manual Mode 135/450°F Door Status Closed Heating If Manual Mode icon is not present, see item 6, page 12 to make it appear. -
Page 14: Menu Cook Mode
COOKING MODES Menu Cook Mode 4. Select an item. To view more items, The oven is programmed touch the arrows at the with recipe settings at the top and bottom of the time of manufacture and item list. is ready to operate out of the box. - Page 15 8. When the oven is d. To stop cooking done heating, place immediately, touch the food on the shelves the Stop icon. as shown on the screen. WARNING: Inside of oven and oven door are hot! 10. Cook the food: e.
- Page 16 (see “caution” below). a. Category icon b. Item icon Start Here NOTE: A G5 menu file consists of 12 menus, each containing 18 categories, each containing 18 items, each containing 5 shelf configurations. There are 19,440 total uniquely-programmable cooking profiles.
- Page 17 Touch Touch Touch “Edit Category Name” “Select Item to Edit” “Edit Category Icon” CAUTION: If “Delete” is selected (blue), touching an item will delete it from the category. In the above Edit Recipe Screen illustration, “Edit” is selected (blue). Events are phases of a cook cycle. Up to 6 events can be added, each with varying levels of air and microwave.
- Page 18 MANAGER MODE Manager Mode 6. Set oven options 1. Set calendar and time a. Manual mode passcode: Yes/No 2. Set Fahrenheit/Celsius and English/French b. Ready beep: Yes/No 3. Set speaker volume c. Cook done: Beep Yes/No 4. Load/save menu files d.
- Page 19 7. Set Oven Parameters a. Default Temperature: the temperature to which the oven preheats until a menu is selected (Menu Mode, see page 8) or the set temperature is changed in Manual Mode (see page 7). b. Default Fan Speed: the fan speed to which the oven is set when the oven is cooling down. c.
- Page 20 COOK COMPENSATION Cook Compensation 3. Enter the passcode 9 4 2 8. The cook cavity temperature can deviate from the set point if there is inconsistency in the amount of product being cooked, or inconsistency with the starting state of the product (e.g., frozen or fresh).
- Page 21 Troubleshooting The following is a list of fault codes and error messages, along with the possible problem(s) that the oven may be experiencing. Please attempt the recommended action before calling Customer Support (800.90TURBO / +1 214.379.6000) or your Authorized Distributor. If any fault or error message occurs that is not listed below, contact Customer Support (800.90TURBO, +1 214.379.6000).
- Page 22 TROUBLESHOOTING I ssue P o s si bl e Cau s e( s ) Resol uti on F1: Blower Running - Oven power interrupted. - Verify the wall circuit breaker is on. Status Bad Reset the breaker and then power the oven on.
- Page 23 If the full invoiced amount for Equipment purchased has not been paid within forty-five (45) days from the invoice date, then TurboChef will have no obligation to honor this or any other warranty on the Equipment until payment is received in full, including any accrued interest or other charges, has been satisfied, at which time warranty...
- Page 24 10 days. Customer also agrees to pay any cost incurred by TurboChef or its service agent associated with a service agent responding to a call for service, but then being refused or unable to gain access to the Oven on Customer’s premises.
- Page 25 International Limited Warranty This Limited Warranty shall apply to the sales of all TurboChef G5 Series ovens (the “Equipment”) manufactured by TurboChef Technologies, Inc. (“TurboChef”), and sold to purchasers outside of the United States, Canada, and Puerto Rico by an Authorized Distributor of TurboChef International (the “Authorized Distributor”).
- Page 26 +1 214.379.6073 The claim must include the serial number of the Equipment and be received by TurboChef on or before the last day of the Warranty Period. Upon receipt of Your claim, TurboChef will promptly notify an Authorized Distributor or an authorized service agent to contact You, to verify Your claim and, if necessary, to arrange for an on-site repair visit during normal working hours.
- Page 27 The application of the United Nations Convention on International Sale of Goods to this Limited Warranty is expressly excluded. This Limited Warranty may not be altered, amended or modified by the Authorized Distributor or its service agent, and no representation, alteration, amendment or modification by TurboChef shall be valid unless in a signed form from TurboChef.
- Page 28 +1 2 14 .3 79 . 60 00 ph o n e t ur bo c h ef .c o m +1 2 14 .3 79 . 60 73 fa x Part Number: G5-9223 / Revision C / March 2013 Country Code: NA/EU...
