para InsTruCCIones en español, vea págInas 7-11.
Installation Instructions:
T he Turbo C he f 30˝ D o ubl e wal l s peeD Co o k ov en
MoDel nuMbers: TDo30 * 208 / TDo30 * 240
" * " Indicates a two letter code – OR, RD, BU, CH, IV, WH, or SS – which refers to the oven door color.
for CoMpleTe InsTallaTIon InsTruCTIons see pages 2-3.
reTaIn These InsTruCTIons for use by an eleCTrICal InspeCTor anD for fuTure referenCe.
please note
Front
screw hole locations

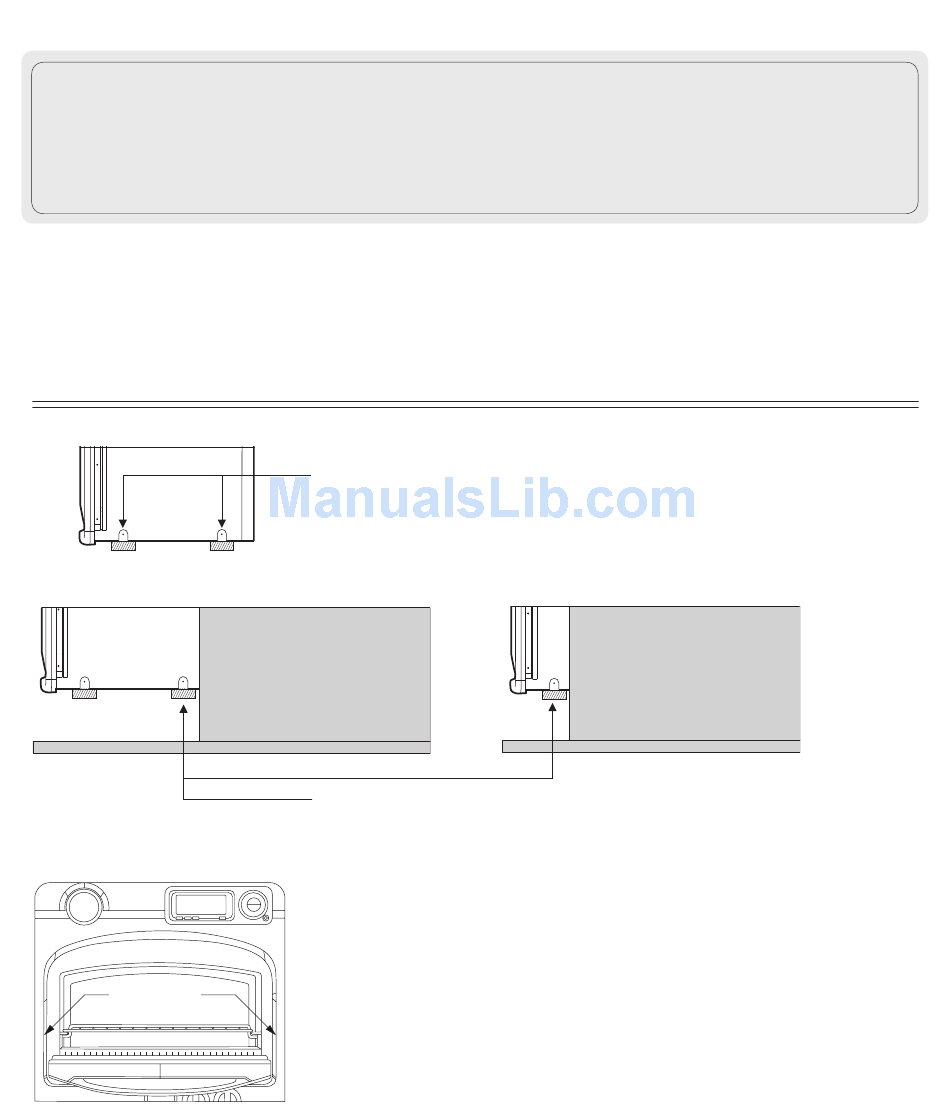

The oven is shipped with two (2) support rails attached to the bottom
figure 1:
of the oven exterior. These rails allow the oven to sit level and keep the bottom of
the frame from being damaged during installation. To properly place the oven into
the cabinets, the support rails must be removed as shown below.
When the unit is lifted into the cabinet opening, the installer will need to
figure 2:
remove the support rails to allow the oven to slide into the opening properly. Remove
each support rail by unscrewing the support screw on either side of the rail. Supports
should then slide off the oven base.
The oven must be secured to the cabinets using the two (2) screws
figure 3:
provided. Please refer to the illustration to the left for the exact location and
positioning of the screws.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TurboChef TD030* 208
Summary of Contents for TurboChef TD030* 208
-
Page 1: Installation Instructions
para InsTruCCIones en español, vea págInas 7-11. Installation Instructions: T he Turbo C he f 30˝ D o ubl e wal l s peeD Co o k ov en MoDel nuMbers: TDo30 * 208 / TDo30 * 240 “ * ” Indicates a two letter code – OR, RD, BU, CH, IV, WH, or SS – which refers to the oven door color. for CoMpleTe InsTallaTIon InsTruCTIons see pages 2-3. -
Page 2: Safety Instructions
Installation Instructions: The TurboChef 30˝ Double wall speedcook oven safety Instructions • Installation, electrical connections, circuit breakers, and grounding must comply with local codes. • Ensure power is disconnected at the breaker throughout the installation process. • The oven weighs approximately 410 lbs. (186 kg.) It requires 2 or more individuals to lift it. •... - Page 3 4-wire hook up figure 4: 4-wire hook up. 7. Place the oven into the cabinet. The oven weighs approximately 410 lbs. (186 kg.) It requires 2 or more individuals to lift it. warnIng: DO NOT push on the outer frame. Doing so could cause the door(s) to misalign, requiring repair and/or warnIng: replacement.
- Page 4 Installation Instructions: The TurboChef 30˝ Double wall speedcook oven specs & Dimensions DIMensIons Overall Oven Height 50.25˝ Width 30.00˝ Depth 23.90˝ Depth from Wall 4.25˝ with top door open 17.50˝ with bottom door open 19.50˝ Weight 410 lbs. Top Oven Cavity Height 12.00˝...
- Page 5 Top View figure 5: TurboChef 30˝ Double Wall Speedcoook Oven Dimensions figure 6: Cabinet Measurements...
-
Page 7: Instrucciones De Instalación
Instrucciones de Instalación: E l h or no Tur bo Ch Ef 30˝ d E do bl E par Ed núMeros De MoDelos: TDo30 * 208 / TDo30 * 240 “ * ” Indique un código de dos letras – OR, RD, BU, CH, IV, WY, o SS – el cual se refiera al color de la puerta del horno. para InsTruCCIones CoMpleTas De InsTalaCIón vea págInas 2-3. -
Page 8: Instrucciones De Seguridad
Instrucciones de Instalación: El horno TurboChef 30˝ de doble pared Instrucciones de seguridad • Instalación, conexiones eléctricas, cortacircuitos, y base deben cumplir con los códigos locales. • Asegure que el poder este desconectado del interruptor en todas partes del proceso de instalación. •... - Page 9 Conexión de 4 alambres figura 4: Conexión de 4 alambres (la derecha) y Conexión de 3 alambres (izquierda) 7. Coloque el horno en el gabinete. El horno pesa aproximadamente 410 libras. (186 kg.) Esto requiere que 2 o más personas aDverTenCIa: lo levanten.
-
Page 10: Especificaciones Y Dimensiones
Instrucciones de Instalación: El horno TurboChef 30˝ de doble pared Especificaciones y dimensiones DIMensIones Horno en Conjunto Alto 50.25˝ Ancho 30.00˝ Profundidad 23.90˝ Profundidad de Pared 4.25˝ con la puerta superior abierta 17.50˝ con la puerta inferior abierta 19.50˝ Peso 410 libras. - Page 11 Vista Superior figura 5: Dimensiones del Horno TurboChef de Doble Pared 30˝ de alta velocidad figura 6: Medidas del Gabinete...
- Page 12 I n sTa l laTI o n In sTru CT Io n s : T h e T u r bo Ch e f 30˝ D o u b le wa l l s p e eD Co o k oven reTaIn These InsTruCTIons for use by an eleCTrICal InspeCTor anD for fuTure referenCe.
