Quick Installation Guide
TV-H400
H/W: V2

Advertisement

loading
Need help?

Need help?

Do you have a question about the TV-H400 and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TV-H400

Summary of Contents for TRENDnet TV-H400

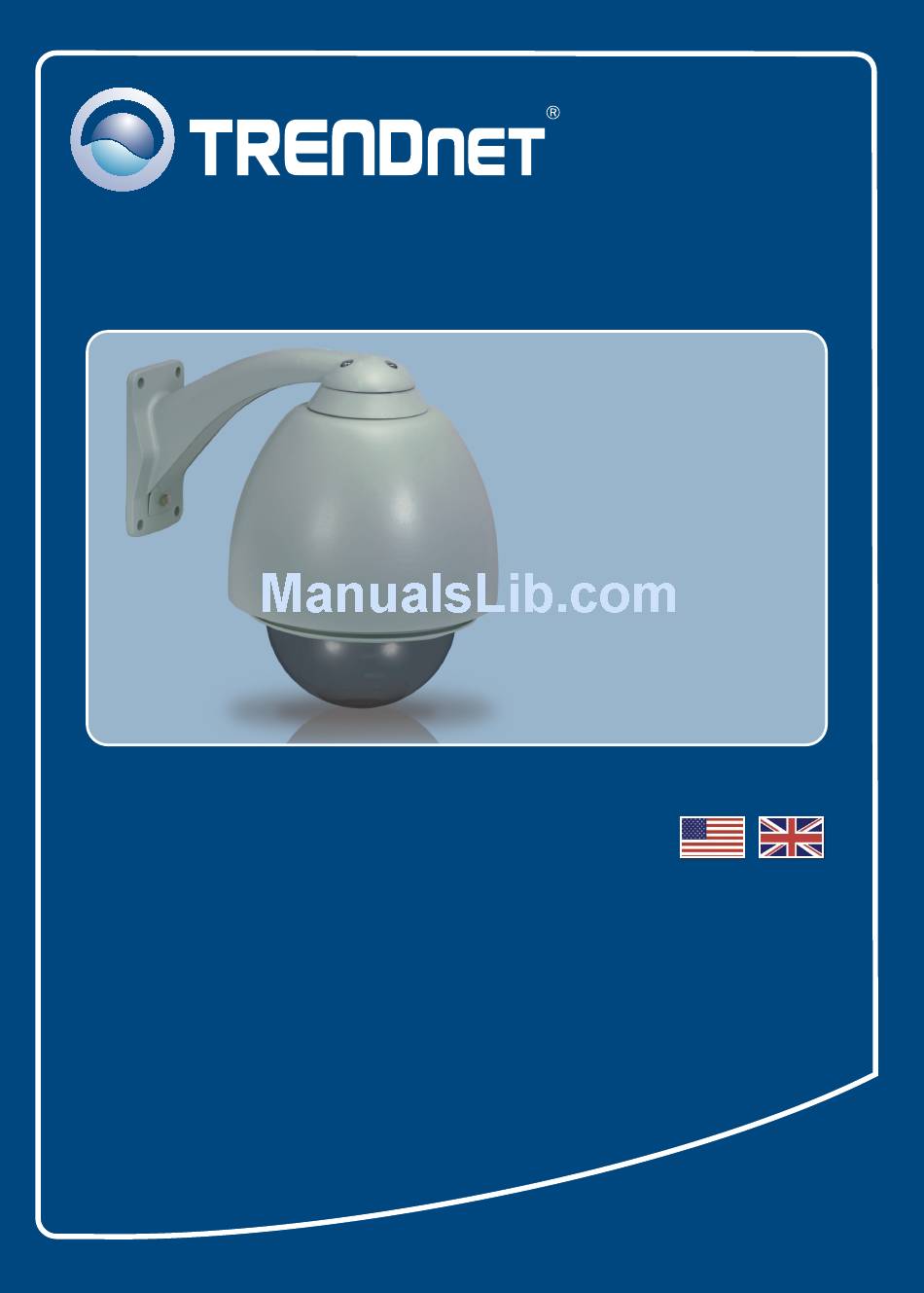

  • Page 1 Quick Installation Guide TV-H400 H/W: V2...
  • Page 2 Table of Contents English ...................... 1 1. Before You Start ................2. Hardware Installation ................. Troubleshooting ..................11 Version 10.09.2008...

  • Page 3: English

    1. Before you start Package Contents TV-H400 Quick Installation Guide Power Adapter (12V DC, 0.6A) 1 x Wall Mount Bracket Allen wrench (4mm) Screws and lock washers Rubber seal Installation Requirements The following items below are not included. Users must provide the items themselves.

  • Page 4: Hardware Installation

    2. Hardware Installation Note: Configure your Internet Camera Server to match your network before installing the device. Bracket:BR001 Round Head Screw x 5pcs Bracket:BR002 3.5cm Hex Screw x 2pcs 5cm Hex Screw x 3pcs Bracket:BR003 Flat Head Screw x 3pcs Washer x 3pcs Hex Nut Top x 3pcs Rubber...
  • Page 5 1. Rotate the TV-H400's cover counter clockwise and remove the cover. 2. Unscrew the thumbscrew. Save this screw. You will need to use this screw later. 3. Run all necessary cables (Ethernet cable, power adapter cable, and the power terminals) through the wall mount bracket.
  • Page 6 12V DC, 0.6A power adapter. 5. Run each cable through the opening located at the top of the TV-H400. 6. After inserting the appropriate cables, extend each cable to 6 inches for camera installation. 7. Use the provided rubber seal to seal the housing.
  • Page 7 8. Secure the protective plating into the wall mount bracket using the thumb screw. 9. Screw the wall mount bracket on top of the TV-H400 with the provided Allen wrench and three hexagon socket screws. The screws are in the plastic bag labeled Q2.
  • Page 8 11. Mount bracket BR003 to the camera enclosure using the three flat head screws. These screws are in the plastic bag labeled Q1. 12. Use three round head screws to mount bracket BR002 on top of the 3 Hex screws. The three round head screws are in the plastic bag labeled Q6.
  • Page 9 14. Attach bracket BR001 to the camera with 3 small screws. These screws should come with the Internet Camera Server. 15. Use the two round head screws to mount bracket BR001 to the two hex screws. The two round head screws are in the plastic bag labeled Q6.
  • Page 10 17. Place the TV-H400's cover over the camera and rotate the cover clock-wise. 18. Plug the power to the Internet Camera Server and the camera enclosure into an available power outlet. English...
  • Page 11 Mounting the Camera Enclosure Note: Mounting screws and screw anchors are not included. 1. Place the mounting bracket against the wall or ceiling and mark each of the four holes with a pencil. 2. Drill holes for the screws at each marked position.
  • Page 12 Your installation is now complete. For detailed information regarding the TV-H400 configuration and advanced settings, please visit TRENDnet's website at www.trendnet.com Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...

  • Page 13: Troubleshooting

    What should I do? First, make sure that you have adjusted the focus on your camera. Second, mount the TV-H400, so that it's not in direct view of the sun. Does the TV-IP422 and TV-IP422W work with the TV-H400? We do not recommend using the TV-IP422 and TV-IP422W with the TV-H400.
  • Page 14 If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
  • Page 15 LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR...
  • Page 16 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 17 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
