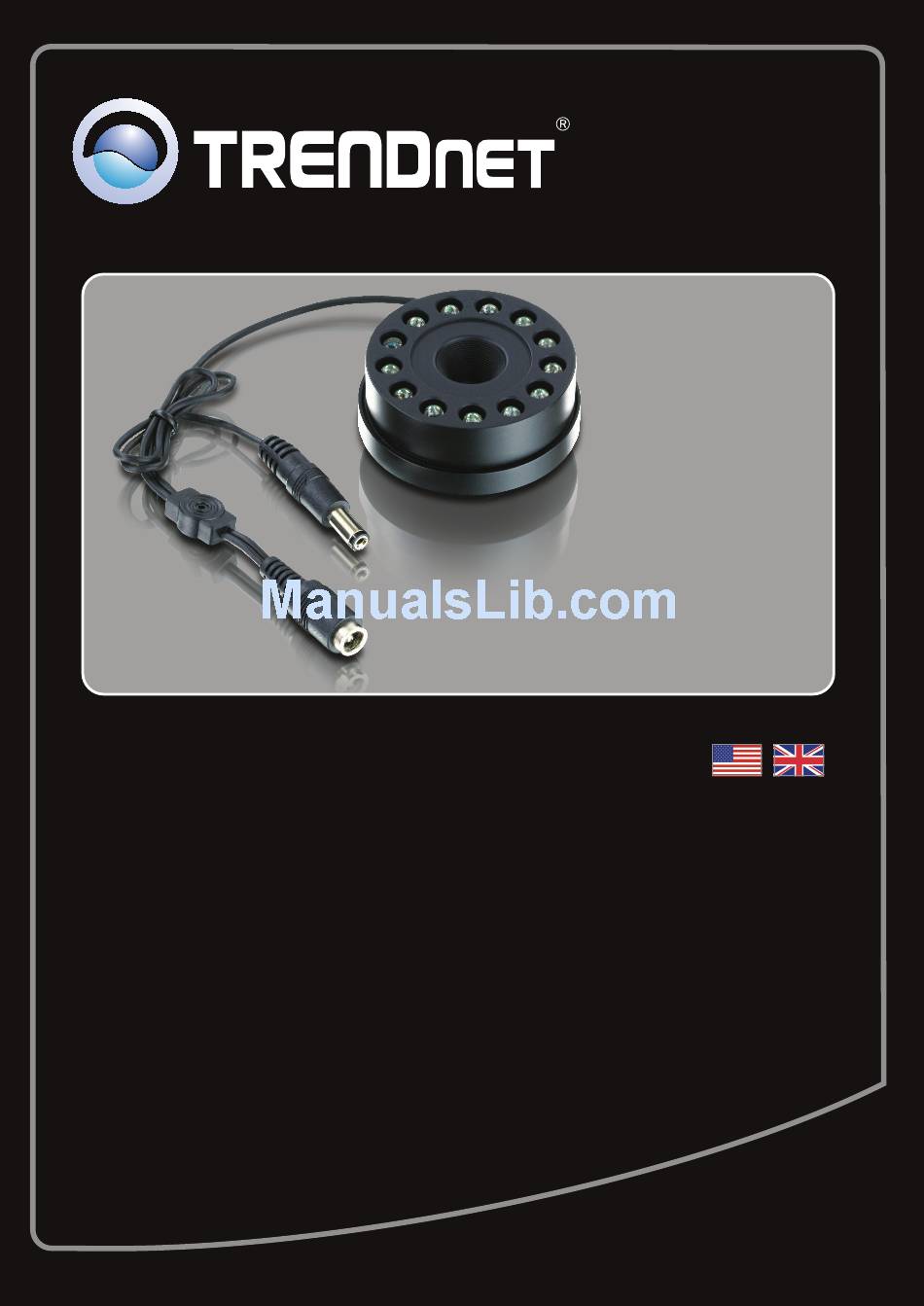

  • Page 1 Quick Installation Guide TV-IR500 1.01...
  • Page 2 Table of Contents English 1. Before You Start 2. Hardware Installation 3. Power-over-Ethernet Installation for TV-IP512P/TV-IP512WN Troubleshooting Version 07.29.2009...

  • Page 3: System Requirements

    1. Before You Start Package Contents TV-IR500 System Requirements IP Camera with CS-Mount type connector (TV-IP512WN, TV-IP512P) AC Power Adapter (12V DC)* Allen Wrench (1.5mm) VGA Resolution: 800 x 600 or above Splitter (e.g. TPE-102S)(Optional)* PoE Switch (TPE-224WS) (Optional)* *Note: 1.
  • Page 4 2. Hardware Installation 1. Using an Allen wrench, turn the set screw counter-clockwise to loosen the lens. 2. Turn the lens counter-clockwise unit to remove it from the IP Camera. 3. Insert the TV-IR500 into the camera. Turn the TV-IR500 clockwise to secure the lens. 4.
  • Page 5 5. Plug the power adapter into a power outlet. 6. Log in to your IP camera and adjust the lens as necessary. 7. Using an Allen wrench, turn the set screw clockwise to tighten the lens.
  • Page 6 3. Power-over-Ethernet Installation for TV-IP512P/TV-IP512WN 1. Select 12V for the voltage. 2. Connect an Ethernet cable from a PoE switch to the DATA-IN port on the TPE-102S. 3. Connect the built-in Ethernet cable on the TPE- 102S to the TV-IP512P/TV-IP512WN's LAN port.
  • Page 7 How far will I be able toview video at night? You will be able to view video up to 10 meters (32.8ft) in a low light environment. If you still encounter problems or have any questions regarding the TV-IR500, please contact TRENDnet's Technical Support Department.
  • Page 8 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register Copyright ©2009. All Rights Reserved. TRENDnet.
