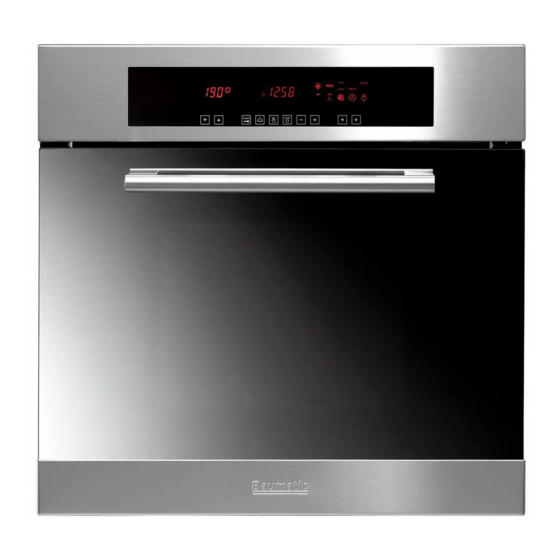

- Page 1 P460SS 46cm high/P660SS 60 cm multifunction touch control oven.
- Page 2 User Manual for your Baumatic P460SS 46cm high/P660SS 60cm 10 function multifunction touch control oven. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information Specifications 8-10 Product and aperture dimensions Cooling fan Product specifications Standard accessories Optional extra Electrical details Control panel Oven programmer/timer display Setting and using the oven programmer/timer 11-16 Setting the time and selecting manual operation mode Before first use Setting the minute minder function Setting the duration function... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Your new appliance is guaranteed against electrical or mechanical defects, subject to certain exclusions that are noted in Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights. o Repairs may only be carried out by Baumatic Service Engineers or their authorised service agent. - Page 6 Warning and safety instructions o This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
- Page 7 This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer’s instructions. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
Specifications P460SS product and aperture dimensions Product dimensions Height: 460mm Width: 597mm Depth: 550mm Aperture dimensions Height: 450- 460mm Width: 560mm Depth: 560mm P660SS product and aperture dimensions Product Dimensions Aperture Dimensions Height: 591 mm 580 mm – 583 mm... -
Page 9: Cooling Fan
Product specifications o 10 oven functions o Energy efficiency class: A o Oven capacity: 45 litres (P460SS) o Oven capacity: 57 litres (P660SS) o Touch control operation o Cooling fan o Thermostatically controlled grill... -
Page 10: Control Panel
For future reference please record the following information which can be found on the Rating Plate and the date of purchase which can be found on your sales invoice. The rating plate for your oven can be located by opening the oven door and looking on the right hand side of the oven chassis. -
Page 11: Setting And Using The Oven Programmer/Timer
Setting and using the oven programmer/timer Setting the time and selecting manual operation mode After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the time and put the appliance into “manual operation”... -
Page 12: Setting The Minute Minder Function
Setting the minute minder function You are able to set the minute minder, regardless of whether an oven function has been selected. You can set a period of time using the minute minder function and an alarm will sound when this period of time has elapsed. o Press and release the ON/OFF button and you will hear an audible signal. -
Page 13: Setting The Duration Function
Setting the duration function This function will allow you to set a countdown time similar to the minute minder function. However the oven will no longer continue to heat, once the countdown period has elapsed. o Press and release the ON/OFF button and you will hear an audible signal. -
Page 14: Setting The End Cook Function
Setting the end cook function This function is similar to the duration function, however instead of selecting a period of time that you wish the oven to switch off after. You select the time of day that you wish the oven to switch off at. -
Page 15: Setting The Start And End Time Function
Setting the start and end time function This function will allow you to set a time in the future that the oven switches on at and a time that the oven will switch off at. o Press and release the ON/OFF button and you will hear an audible signal. -
Page 16: Cancelling An Automatic Cooking Function
Cancelling an automatic cooking function If an automatic cooking function has been set and you wish to use the oven in manual operation mode, you will need to cancel the automatic cooking function. o To select manual operation mode, press the manual operation button and end cook buttons simultaneously. -
Page 17: 10 Oven Functions
o The oven will start to heat and a centigrade degree symbol (°) will flash in the temperature display. o When the oven temperature that you have selected has been reached the (°) symbol will stop flashing and the oven will beep. o You should not place food inside the cavity, until the correct cooking temperature has been reached. -
Page 18: Cooking Guidelines
PIZZA FUNCTION: This method of cooking uses the lower and circular element while the heat is distributed by the fan, reproducing the same conditions of traditional clay wood-fire stoves. FAN OVEN: This method of cooking uses the circular element while the heat is distributed by the fan. This results in a faster and more economical cooking process. -
Page 19: Warnings
o Before cooking, check that any accessories that are not required are removed from the oven. o Place cooking trays in the centre of the oven and leave gaps between the trays to allow air to circulate. o Try to open the door as little as possible to view the dishes. Warnings o Keep the oven door closed when using any of the grill functions. -
Page 20: Preheating Function
Preheating function You should select this oven function for quicker heating of the oven cavity before placing food in the oven and cooking. o A moving symbol will appear on the temperature display. o The grill, lower element and fan are switched on and a temperature of 210°C is selected by the oven. -
Page 21: Cleaning And Maintenance
Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. -
Page 22: Removable Oven Roof Liner
Removable oven roof liner (P660SS only) o Your appliance is supplied with a roof liner, which should be slid over the top of the grill element. o Once you have finished cooking, the liner should be removed and thoroughly cleaned after each use of the appliance. o Do not allow fat and grease to build up on the oven liner, as this could cause a fire hazard. -
Page 23: Installation
o You should grip the sides of the door at the centre and then incline it slightly towards the oven cavity and then by pulling it gently away from the oven cavity. WARNING- Care should be taken as the inner edges of the door may be sharp. o IMPORTANT: You should make sure that the door is supported at all times and that you place the door on some padded material whilst cleaning it. -
Page 24: Installing The Oven Into The Kitchen Cabinet
50°C. o If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. Installing the oven into the kitchen cabinet P460SS... -
Page 25: Positioning The Appliance
Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagrams (depending on whether you are installing the P460SS or the P660SS). o The oven must be fitted into an oven housing with the ventilation cut-outs shown in the “Ventilation requirements”... -
Page 26: Ventilation Requirements
Ventilation requirements (Figure shows the ventilation and cut-out requirements for the installation of the appliance into a standard kitchen unit). (Figure shows the ventilation and cut-out requirements for the installation of the appliance into a tall housing unit). -
Page 27: My Appliance Isn't Working Correctly
o Ensure that the oven has been securely fixed into the housing unit. The fixing of the oven into the housing is made by using four screws. These should be screwed through the oven cabinet and into the housing unit. My appliance isn’t working correctly o The oven isn’t coming on. - Page 28 o My food is not cooking properly * Ensure that you are selecting the correct temperature and the correct cooking function for the food that you are cooking. It may be appropriate to adjust your cooking temperature by plus or minus 10°C, to achieve the best cooking results. o My food is not cooking evenly * Check that the oven has been installed correctly and is level.
- Page 29 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 30: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Průmyslová zóna Sever 696 6 Bennet Road, 460 11 Liberec 11 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900...
