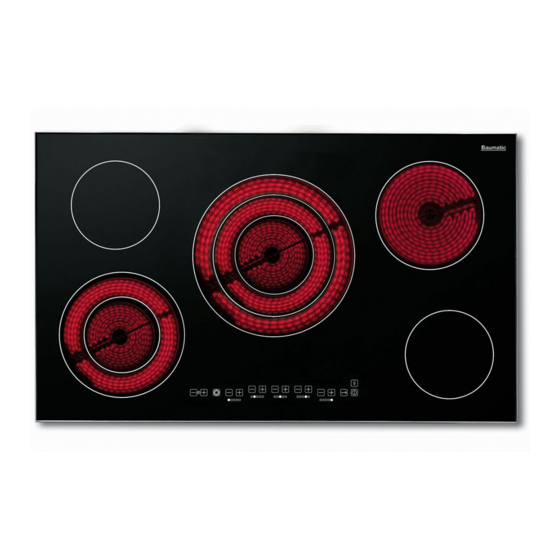

90 cm front touch control ceramic hob

Advertisement

Quick Links

BHC925SS 90 cm
Front touch control

ceramic hob

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BHC925SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Baumatic BHC925SS

  • Page 1: Ceramic Hob

    BHC925SS 90 cm Front touch control ceramic hob...
  • Page 2 User Manual for your Baumatic BHC925SS 90 cm Front touch control 5 hyperspeed zone ceramic hob. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
  • Page 3: Table Of Contents

    Contents Environmental note Important safety information 5 – 8 Specifications 8 - 10 Product and aperture dimensions Product specifications Standard accessories Electrical details Ceramic hob surface layout Control panel layout Cooking zone indicators and neon’s Using the ceramic hob 11 - 23 Before first use Touch controls Turning the hob on...
  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.
  • Page 5: Important Safety Information

    No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made...
  • Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the...
  • Page 7 Please see the specific section of this booklet that refers to stallation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
  • Page 8: Specifications

    o Pans should be lifted on and off the hob surface and not dragged. o Cooking zones should not be switched on without cookware placed on them. Also the cookware should not be empty. Specifications Product dimensions: Aperture dimensions: Height: 510 mm Height: 490 mm...
  • Page 9: Standard Accessories

    Standard accessories o Ceramic hob scraper Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 40 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 8.90 kW Mains Supply Lead: 3 core x 6 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice.
  • Page 10: Control Panel Layout

    Control panel layout ON/OFF button Safety lock button Safety lock neon Minus button Plus button Cooking zone indicator Cooking zone display (single/dual/triple circuit) Multi circuit ON/OFF button Multi circuit indicator neon Timer minus button Timer plus button Timer display Timer indicator neon Egg timer indicator neon Timer display decimal point Pause/recall button...
  • Page 11: Using The Ceramic Hob

    Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
  • Page 12: Turning On A Zone And Setting A Power Level

    Turning on a zone and setting a power level IMPORTANT: A zone must be selected within 10 seconds of turning the hob on. o Press the plus button (5) of the zone that you want to use. The preset hob zone level is setting number 4. o Adjust the zone between power levels 1 and 9, using the plus (5) and minus (4) buttons.
  • Page 13: Turning Off The Outer Circuit Of A Multi Circuit Zone

    o Press the plus button (5) for the zone that you want to use. The preset hob zone level is setting number 4. o Adjust the zone between power levels 1 and 9, using the plus (5) and minus (4) buttons. o The central section is switched on.
  • Page 14: Turning Off A Zone Gradually

    o The outer circuit will then switch off. o For the triple zone, if you have all three zones in use, you will need to follow this procedure twice. o If you switch the hob off using the ON/OFF button (1) whilst one of the multi circuit zones has the inner and outer zone switched on.
  • Page 15: Turning The Hob Off

    Turning the hob off Once you have switched off all of the cooking zones, you should turn off the hob. o Press the ON/OFF button (1). It is possible to turn the hob off at any time by pressing the ON/OFF button (1).
  • Page 16: Locking The Hob Top

    Locking the hob top o The whole hob top can be locked by pressing the safety lock button (2) whilst the appliance is turned on. o The safety lock neon (3) will light to show that the safety lock feature has been switched on. o When the safety lock feature is activated, it will disable any of the other buttons on the control panel, except the ON/OFF button (1).
  • Page 17: Automatic Pre-Heating

    LEVEL TIME LIMIT 8 hours 40 minutes 6 hours 42 minutes 5 hours 18 minutes 4 hours 20 minutes 3 hours 32 minutes 2 hours 50 minutes 2 hours 19 minutes 1 hour 53 minutes 1 hours 30 minutes o If the safety cut off has activated, the symbol “H” will appear in the cooking zone indicator (6) that applies to the cooking zone that has been left on.
  • Page 18: Increasing The Power Level During Automatic Pre-Heating

    o Once the automatic pre-heating time period is over, the hob will beep once and only the actual power level will show on the cooking zone indicator (6). o The period of time that a zone will automatically pre-heat for before dropping to the actual power level, is shown in the table below:- LEVEL...
  • Page 19: Switching Off Automatic Pre-Heating

    Switching off automatic pre-heating o If a zone is already within automatic pre-heating mode, it is possible to cancel it. The “A” symbol needs displayed in the cooking zone indicator (6). o Press the minus button (4) and the automatic pre-heating mode will be cancelled.
  • Page 20: The Recall Function

    The recall function o If you have accidentally turned off the hob using the ON/OFF button (1). Then you can recall the power levels and zones that you had in use for a short period of time afterwards by using the recall function.
  • Page 21: The Hob Timer (Switching A Zone Off)

    o If you have no zone in use and set the countdown timer, after a few seconds the hob will switch off. You will need to use the ON/OFF button (1) to switch the hob back on again. The hob timer (switching a zone off) o Select the cooking zone that you wish to use and set the required power level.
  • Page 22: The Hob Timer (Switching Multiple Zones Off)

    The hob timer (multiple timer programming) o When a hob zone has already been linked to the timer and the timer is counting down, select the second cooking zone and set the required power level. o Press the timer plus (11) and timer minus (10) buttons simultaneously twice.
  • Page 23 Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY.
  • Page 24: Cleaning And Maintenance

    Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the ceramic hob top Any residues that are left on the hob top surface from cleaning agents will damage it.
  • Page 25: Using A Ceramic Hob Scraper

    Using a ceramic hob scraper Your appliance will be provided with a hob scraper. The following guidelines should also be followed when using the ceramic hob scraper:- o The scraper should be placed on the ceramic surface at an angle. o Residues should be removed by sliding the blade carefully over the ceramic surface.
  • Page 26: Positioning

    When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 1 Sealing strip...
  • Page 27: Installing The Appliance

    Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above. o IMPORTANT: A partition made of an insulating material must be inserted between the underneath of the hob and the space below. This partition must be at least 25 mm away from the underside of the hob.
  • Page 28 o IMPORTANT: Do not use a silicon sealant to seal the appliance against the cut-out. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced. Fixing bracket Screw o Use the fixing bracket that is appropriate for your thickness of worktop.
  • Page 29: Electrical Connection

    Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.
  • Page 30: Replacing The Mains Supply Cable

    If when the hob is first switched on, only two of the zones work, you should recheck that the terminal screws are all fully tightened between the links. This should be done before contacting Baumatic Customer Care Department. o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket.
  • Page 31: My Appliance Isn't Working Correctly

    * The cooking zone has only been turned on for a short period of time; therefore it did not go above 60°C. * IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Customer Care Department.
  • Page 32 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
  • Page 33: Contact Details
