Linking to an infrared device

Setting Up an Infrared Transmission

For information about using infrared software, refer to the
operating system Help files.
To set up infrared devices for optimal transmission:
■
Prepare the infrared ports on both devices for transmission.
✎
■

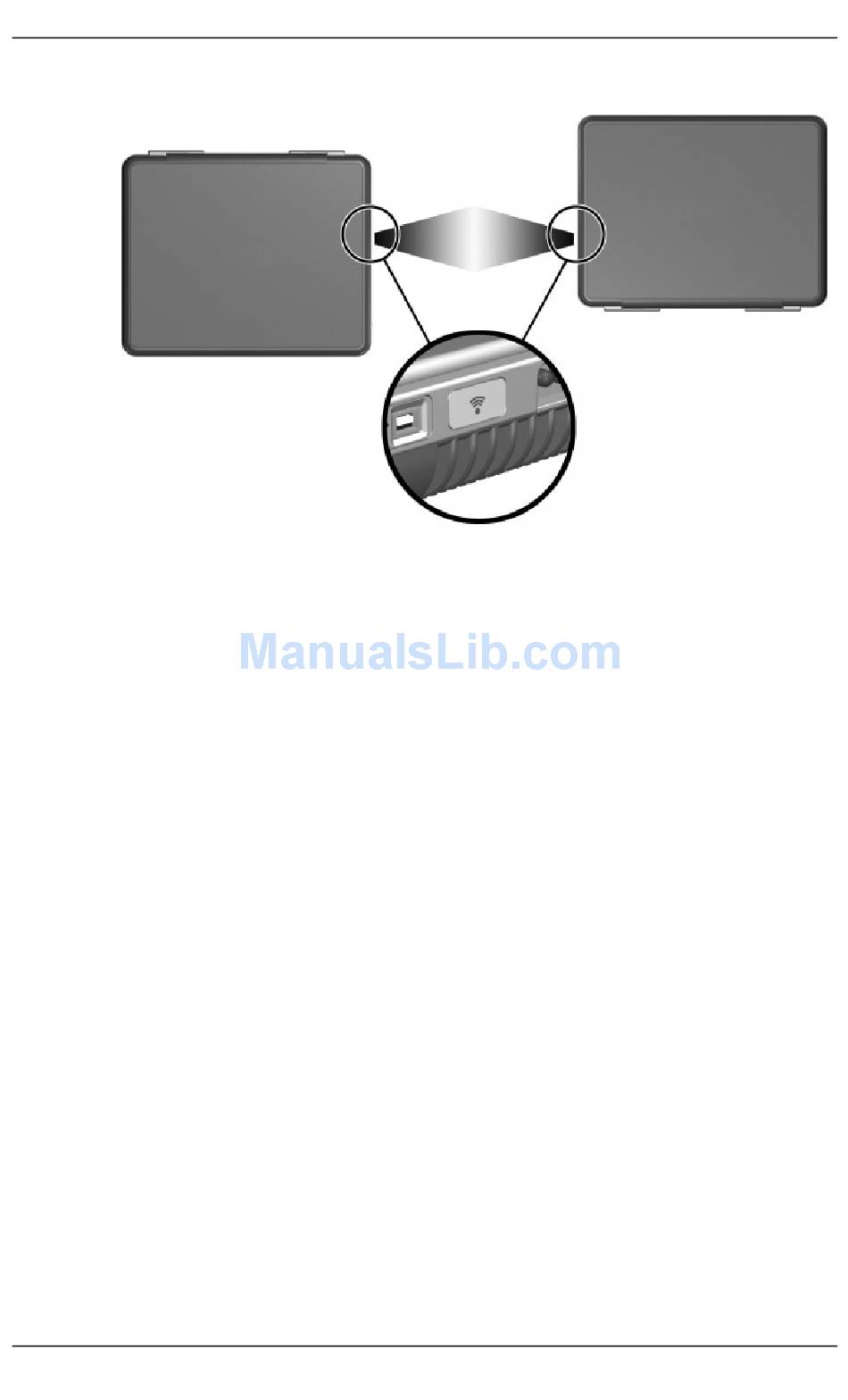

Position the devices so that their infrared ports face each
other at a distance of no more than one meter (3.3 feet).
■
Position the ports so that they face each other directly. The
maximum capture angle is 30 degrees, so the ports must be
aligned no more than 15 degrees off center.
Hardware Guide
The notebook infrared port is fully enabled when the
notebook is turned on.
External Device Connections
6–5
