4 Maintenance
4.1 Disassembly
When servicing the parts inside the Refrigerant Monitor, disassemble the monitor's metal chassis as follows:
Items Required:
•
Medium Phillips head screwdriver
Procedure:
1. Remove monitor and its battery pack from the soft carrying case.
2. Unplug battery pack from monitor.

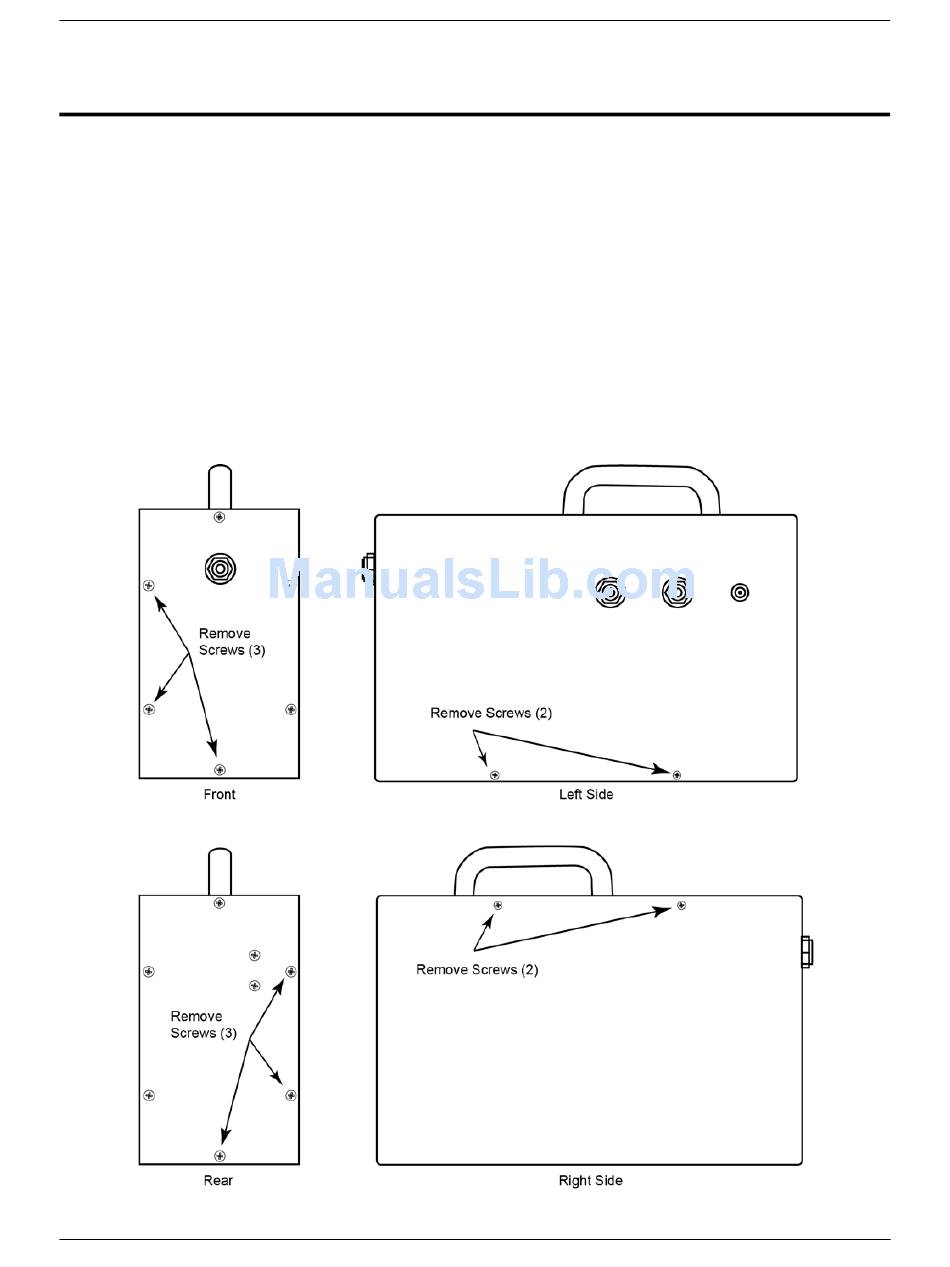

3. Remove a total of 10 screws from the locations shown in the illustrations below.
4. Carefully separate the metal chassis.
Instruction 3015-5466 (Rev 6)
Halogen Monitor (Bagless PAGM)
25
