Halogen Monitor (Bagless PAGM)
PRES CHK is displayed when the monitor is performing an atmospheric pressure check, which is
done to ensure the accuracy of the gas measurement under varying atmospheric conditions. This
pressure check is performed every 30 minutes.

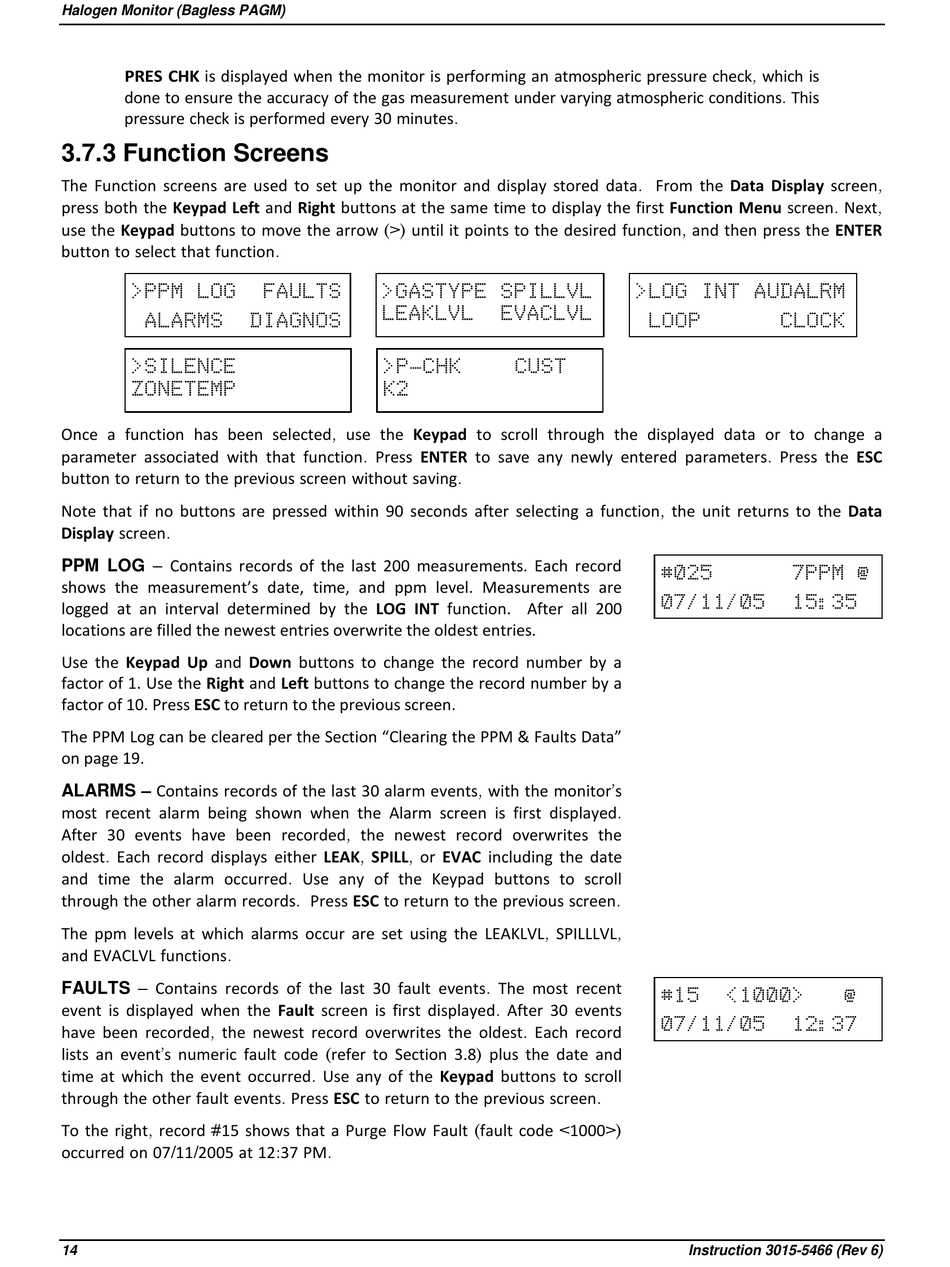

3.7.3 Function Screens

The Function screens are used to set up the monitor and display stored data. From the Data Display screen,
press both the Keypad Left and Right buttons at the same time to display the first Function Menu screen. Next,
use the Keypad buttons to move the arrow (>) until it points to the desired function, and then press the ENTER
button to select that function.
>PPM LOG
ALARMS
>SILENCE
ZONETEMP
Once a function has been selected, use the Keypad to scroll through the displayed data or to change a
parameter associated with that function. Press ENTER to save any newly entered parameters. Press the ESC
button to return to the previous screen without saving.
Note that if no buttons are pressed within 90 seconds after selecting a function, the unit returns to the Data
Display screen.
PPM LOG – Contains records of the last 200 measurements. Each record
shows the measurement's date, time, and ppm level. Measurements are
logged at an interval determined by the LOG INT function. After all 200
locations are filled the newest entries overwrite the oldest entries.
Use the Keypad Up and Down buttons to change the record number by a
factor of 1. Use the Right and Left buttons to change the record number by a
factor of 10. Press ESC to return to the previous screen.
The PPM Log can be cleared per the Section "Clearing the PPM & Faults Data"
on page 19.
ALARMS – Contains records of the last 30 alarm events, with the monitor's
most recent alarm being shown when the Alarm screen is first displayed.
After 30 events have been recorded, the newest record overwrites the
oldest. Each record displays either LEAK, SPILL, or EVAC including the date
and time the alarm occurred. Use any of the Keypad buttons to scroll
through the other alarm records. Press ESC to return to the previous screen.
The ppm levels at which alarms occur are set using the LEAKLVL, SPILLLVL,
and EVACLVL functions.
FAULTS – Contains records of the last 30 fault events. The most recent
event is displayed when the Fault screen is first displayed. After 30 events
have been recorded, the newest record overwrites the oldest. Each record
lists an event's numeric fault code (refer to Section 3.8) plus the date and
time at which the event occurred. Use any of the Keypad buttons to scroll
through the other fault events. Press ESC to return to the previous screen.
To the right, record #15 shows that a Purge Flow Fault (fault code <1000>)
occurred on 07/11/2005 at 12:37 PM.
14
FAULTS >GASTYPE SPILLVL
LEAKLVL
DIAGNOS
>P-CHK
K2
>LOG INT AUDALRM
EVACLVL
LOOP
CUST
#025
07/11/05
#15
07/11/05
CLOCK
7PPM @
15:35
<1000> @
12:37
Instruction 3015-5466 (Rev 6)
