Halogen Monitor (Bagless PAGM)

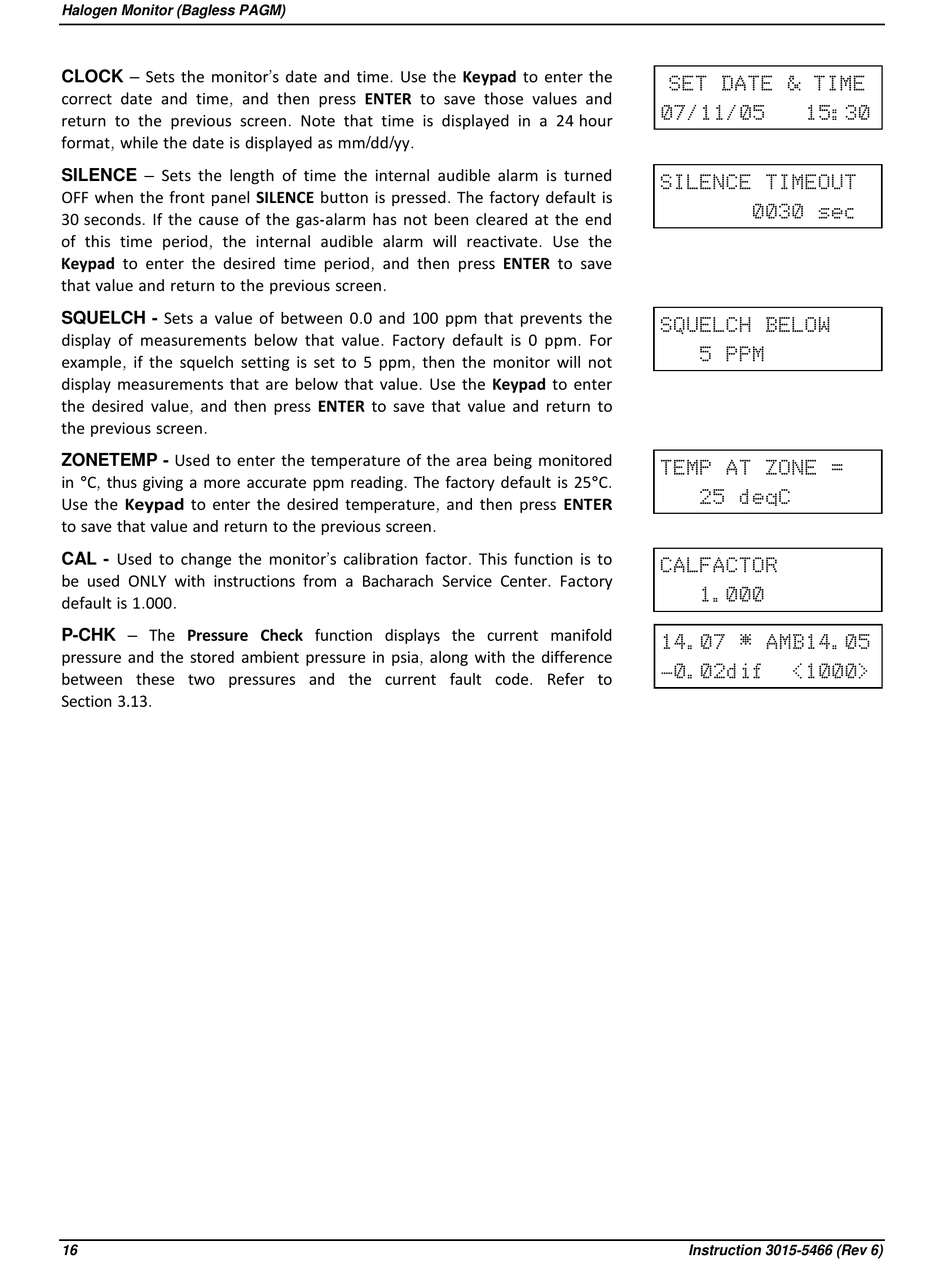

CLOCK – Sets the monitor's date and time. Use the Keypad to enter the
correct date and time, and then press ENTER to save those values and
return to the previous screen. Note that time is displayed in a 24 hour
format, while the date is displayed as mm/dd/yy.
SILENCE – Sets the length of time the internal audible alarm is turned
OFF when the front panel SILENCE button is pressed. The factory default is
30 seconds. If the cause of the gas-alarm has not been cleared at the end
of this time period, the internal audible alarm will reactivate. Use the
Keypad to enter the desired time period, and then press ENTER to save
that value and return to the previous screen.
SQUELCH - Sets a value of between 0.0 and 100 ppm that prevents the
display of measurements below that value. Factory default is 0 ppm. For
example, if the squelch setting is set to 5 ppm, then the monitor will not
display measurements that are below that value. Use the Keypad to enter
the desired value, and then press ENTER to save that value and return to
the previous screen.
ZONETEMP - Used to enter the temperature of the area being monitored
in °C, thus giving a more accurate ppm reading. The factory default is 25°C.
Use the Keypad to enter the desired temperature, and then press ENTER
to save that value and return to the previous screen.
CAL - Used to change the monitor's calibration factor. This function is to
be used ONLY with instructions from a Bacharach Service Center. Factory
default is 1.000.
P-CHK – The Pressure Check function displays the current manifold
pressure and the stored ambient pressure in psia, along with the difference
between these two pressures and the current fault code. Refer to
Section 3.13.
16
SET DATE & TIME
07/11/05 15:30
SILENCE TIMEOUT
0030 sec
SQUELCH BELOW
5 PPM
TEMP AT ZONE =
25 degC
CALFACTOR
1.000
14.07 * AMB14.05
-0.02dif <1000>
