Capture Bag

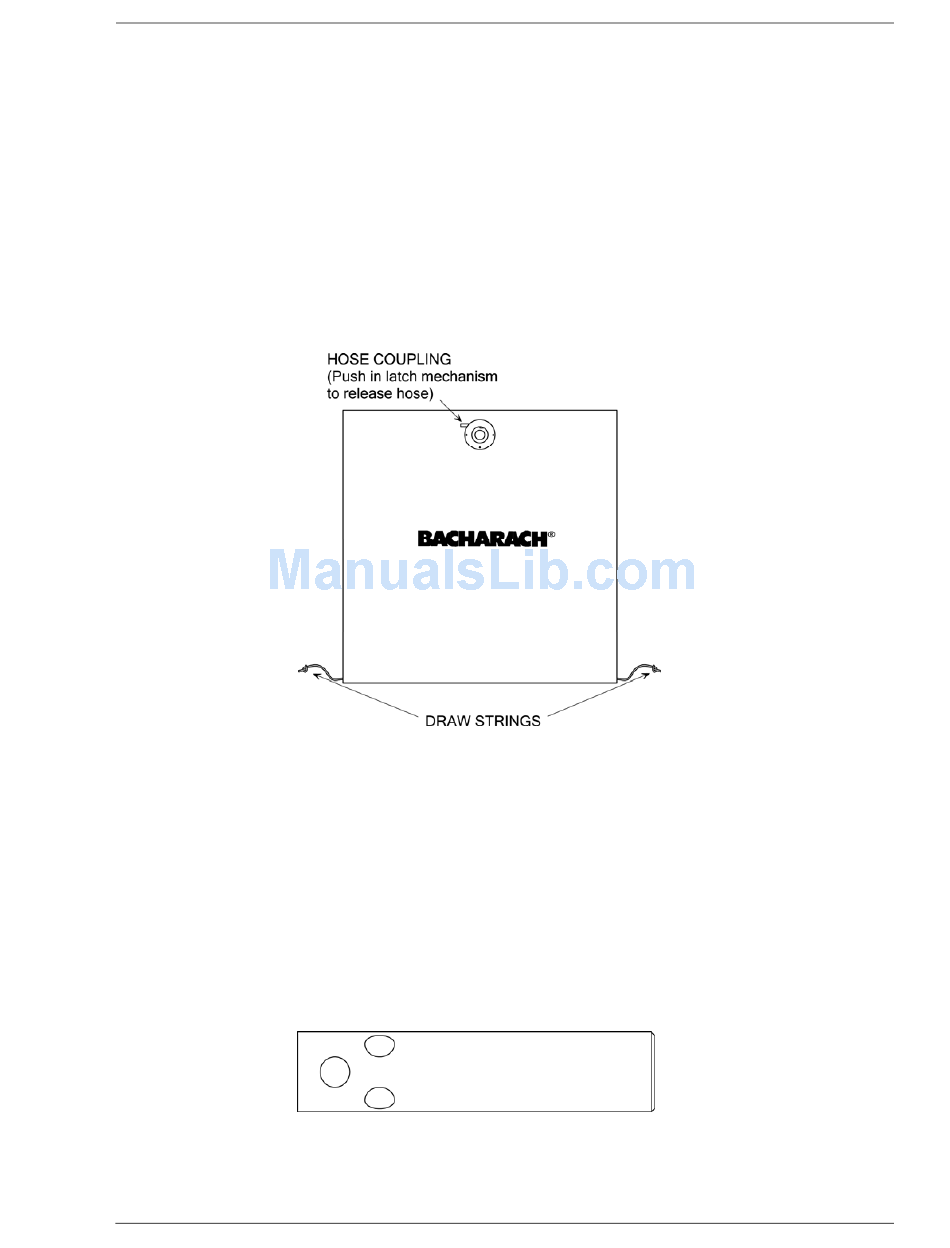

This reusable capture bag measures 36" x 36" and can be used to
completely surround a component that may have multiple leak sources,
or contains a leak source that is difficult to pinpoint or reach.
Attach the Hi Flow Sampler's main sampling hose to the bag by simply
pushing the end of the hose into the bag's hose coupling. A click should
be heard when the hose has been successfully connected. Release the
hose by pushing in the coupling's release mechanism.
Use the draw strings to close up the end of the bag. DO NOT, however,
completely close off the bag – allow air to flow into the bag so as to
replace the volume of gas and air being removed during the test.
3.5.4

Disposable Bags with Nozzle

These disposable capture bags measure 38" x 60" and can be used to
completely surround a component that may have multiple leak sources,
or contains a leak source that is difficult to pinpoint or reach.
When using a disposable bag to surround the leak source, insert the bag
nozzle into the bag to take a gas sample.
DO NOT completely close off the bag – allow air to flow into the bag so as
to replace the volume of gas and air being removed during the test.
3.5.5

Bellows Tool

Instruction 0055-9017
