Bacharach MONOXOR II Instruction

Portable co analyzer
Hide thumbs Also See for MONOXOR II:
Table of Contents

Advertisement

Quick Links

Enlarged version

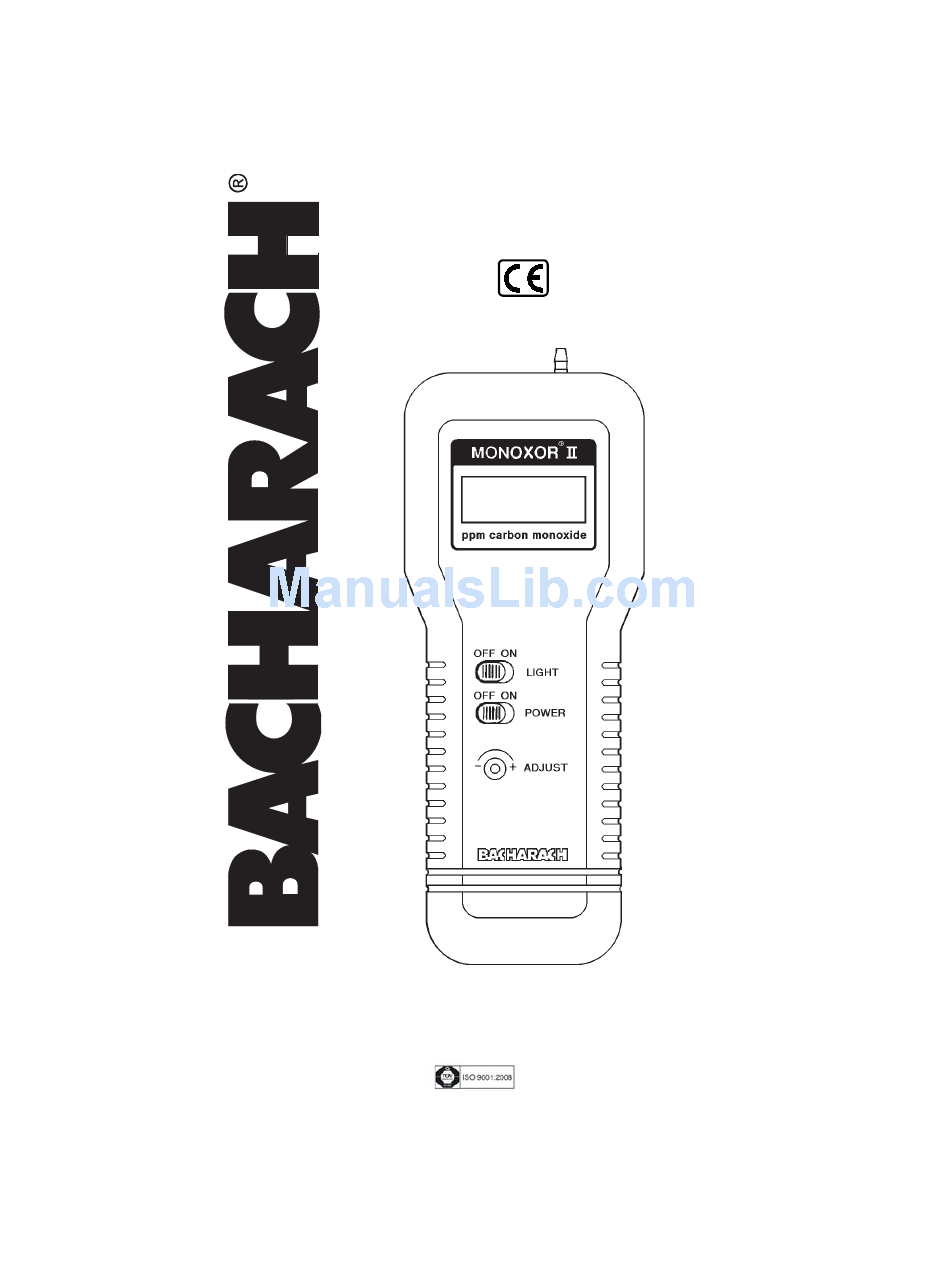

MONOXOR II
®
INSTRUCTION 0019-9113
Portable CO Analyzer
Part No. 0019-7034 & 0019-7039
Rev. 8 - May 2010
Bacharach, Inc.
621 Hunt Valley Circle, New Kensington, PA 15068
PH: 1-800-736-4666 • FAX: 724-334-5001 • Web: www.mybacharach.com
E-mail: help@mybacharach.com
Printed in U.S.A.
® Registered Trademarks

Advertisement

Table of Contents
loading

Related Manuals for Bacharach MONOXOR II

Summary of Contents for Bacharach MONOXOR II

  • Page 1 MONOXOR II ® INSTRUCTION 0019-9113 Portable CO Analyzer Part No. 0019-7034 & 0019-7039 Rev. 8 - May 2010 Bacharach, Inc. 621 Hunt Valley Circle, New Kensington, PA 15068 PH: 1-800-736-4666 • FAX: 724-334-5001 • Web: www.mybacharach.com E-mail: help@mybacharach.com Printed in U.S.A.

  • Page 2: Warranty

    WARRANTY Bacharach, Inc. warrants to Buyer that at the time of delivery this Product will be free from defects in mater ial and manufac ture and will conform substan tially to Bacharach Inc.’s ap plicable specifi cations. Bacharach’s liability and Buyer’s remedy under this warranty are limited to the repair or replacement, at Bacharach’s option, of this Product...
  • Page 3 If, after reading the information in this manual, the user has questions regarding the op- eration, application or maintenance of the instrument, supervisory or training assistance should be obtained before use. Assistance is available by calling your nearest Bacharach Service Center.

  • Page 4: Technical Characteristics

    (eg. 100 ppm) are utilized. ** Times are with the backlight turned off. Continuous use of the backlight will decrease battery life. 3 PREPARING THE MONOXOR II FOR OPERATION To prepare the instrument for operation, you must install four “C”...

  • Page 5: Probe Installation

    If batteries are accidently installed in the wrong polarity, a positive temperature coeffi cient (PTC) thermistor will protect the instrument’s electronic circuitry. The instrument will operate once batteries are properly installed and the PTC thermistor is allowed to cool. 3.2 Probe Installation Install the probe by sliding the end of its tubing over the gas inlet port on the top right side of the instrument as shown in Figure 3.

  • Page 6: Operation

    4 OPERATION To operate the Monoxor II, you simply . . . • Set its POWER switch to ON, • Wait for the instrument to warm up (approx. 1 minute), • Zero the display (if necessary), • Take a gas sample.

  • Page 7: Backlight On/Off

    By sliding your hand between the instrument and its elastic strap, you can hold onto the Monoxor II with a minimum of effort. The instrument's front panel slide switches can then be actuated by your thumb for one-handed operation.

  • Page 8: Long Term Storage

    5 MAINTENANCE The Monoxor II needs to be calibrated at regular intervals to be cer- tain that it still meets its accuracy specifi cation. A regular calibration schedule should be established between you and your nearest Bacha-...

  • Page 9: Parts & Service

    0019-3029 Probe/Hose/Line Dryer Assy. 0019-3084 Flexible Probe Tube (optional) 0019-3104 Line Dryer Filter Packing 0011-0122 6.2 Bacharach Sales / Service Centers United States Canada Bacharach, Inc. Bacharach of Canada, Inc. 621 Hunt Valley Circle 20 Amber St. Unit #7 New Kensington, PA 15068...

  • Page 10: Hazards Of Carbon Monoxide

    1–2 minutes. Death within 10–15 minutes. 12,800 ppm (1.28%) Death within 1–3 minutes. For more information on CO ask about Bacharach's CO Regional Training Seminars. *Maximum CO concentration for exposure at any time as prescribed by OSHA. Effects can vary signifi cantly based on age, sex, weight and...
