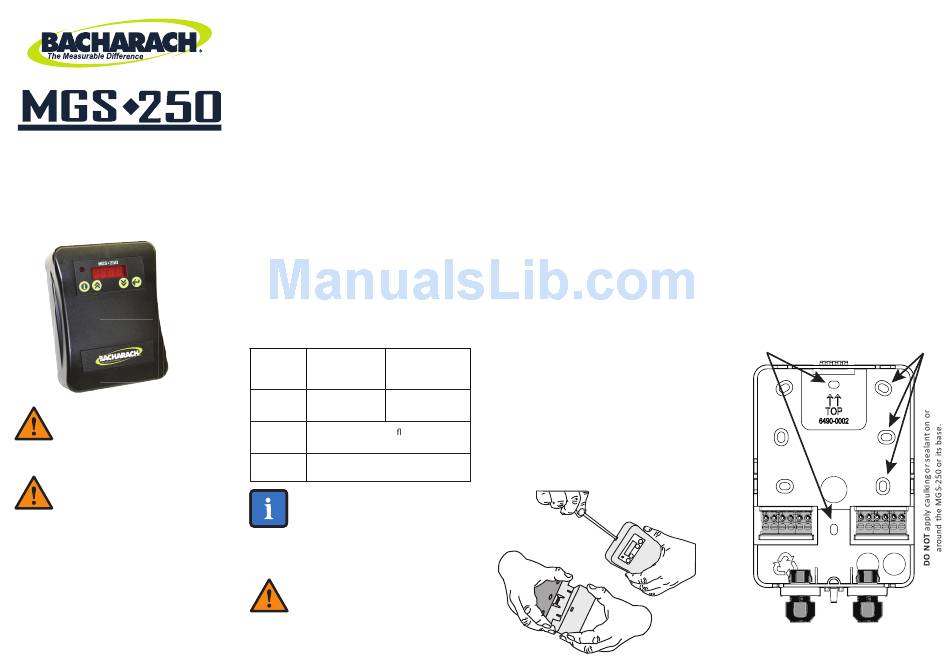

Bacharach MGS-250 Installation Manual

GAS DETECTOR
INSTALLATION GUIDE
P/N: 6490-9004
Revision 0
January 25, 2016
Sensor
Housing
CAUTION: DO NOT MOUNT the
MGS-250 in an area that may
contain flammable liquids or
vapors. Operation of electrical
equipment in such an area consti-
tutes a safety hazard.
WARNING: Strictly follow the
instructions in the Gas Detector
Manual (part number 6490-9000)
available at www.MyBacharach.com.
1: OPERATING AREA AND CONDITIONS
The Bacharach MGS-250 is an instrument for the
continuous monitoring of refrigerant gases.
The instrument is powered by 24V AC or DC. The
output signal can be selected as either voltage or
current. The on-board relay can be used to switch
alarm devices.
2: SAFETY INSTRUCTIONS
USER MANUAL: Before using this equipment,
carefully read and strictly follow the User Manual
6490-9000)
(part number . The user must fully
understand and strictly observe the instructions.
Use the equipment only for the purposes listed and
under the conditions specified in those documents.
CODE COMPLIANCE: Comply with all local and
national laws, rules and regulations associated with
this equipment.
GENUINE PARTS: Use only genuine Bacharach spare
parts and accessories, otherwise proper functioning
of the equipment may be impaired.
TECHNICIAN USE ONLY: This unit must be installed
by a suitably qualified technician who will install this
unit in accordance with these instructions and the
standards in their particular industry/country. Opera-
tors of the unit should be aware of the regulations
and standards in their industry/country for the
operation of this unit. These notes are only intended
as a guide and the manufacturer bears no responsi-
bility for the installation or operation of this unit.
Failure to install and operate the unit in accordance
with these instructions and with industry guidelines
may cause serious injury including death and the
manufacturer will not be held responsible in this
regard.
SAFE MOUNTING: This monitor must be connected
by a marked, suitably located and easily reached
switch or circuit-breaker as means of disconnection.
3: SPECIFICATIONS
Weight
6.3 oz
180 g
and
4.0" x 5.5" x 1.5"
102 x 140 x 37 mm
Dimensions
Temperature
-22° to 104° F
-30° to 40° C
Rating
ABS plastic; UL ammability
Enclosure
rating of 94V-0
Approvals CE, UL/CSA/IEC/EN 61010-1
NOTE: When installed in areas that may be
subjected to water spray, the optional splash
guard (P/N: 6900-0001) should be used in
conjunction with the MGS-250. Weight and
dimensions (above) do not include optional
splash guard.
4: MOUNTING
IMPORTANT: Do not apply caulking or
other material around the gas detector
base. The gas detector relies on air
exchange through the spaces between the
base and the gas detector housing. Do not
obstruct the small gap around the housing
and the base with any material.
4: MOUNTING (CONTINUED)
ACCESSIBILITY: The mounting location of the moni-
tor should allow it to be easily accessible for visual
monitoring and servicing.
VIBRATION FREE LOCATION: Do NOT mount the
MGS-250 directly to vibrating machinery as the
vibrations may degrade the gas detector's perfor-
mance.
PLACEMENT GUIDELINES: The MGS-250 should be
installed plumb and level and securely fastened to a
rigid mounting surface.
WATER SPRAY: When installed in areas that may be
subjected to water spray, the optional splash guard
(P/N: 6900-0001) should be used in conjunction with
the MGS-250.
ENVIRONMENTAL CONSIDERATIONS: Carefully
consider the full range of environmental conditions
to which the instruments will be exposed.
TARGET GAS CONSIDERATIONS: The physical data of
the gas or vapor to be detected must be observed.
APPLICATION CONSIDERATIONS: The specifics of
the application (for example, possible leaks, air
movement/draft, etc.) must be observed.
ACCESSIBILITY CONSIDERATIONS: The degree of
accessibility required for maintenance purposes
must be granted.
ACCESSORY CONSIDERATIONS: The types of
optional and accessory equipment that will be used
with the system must be kept in mind.
ELECTRONIC CONSIDERATIONS: The system contains
sensitive electronic components that can be easily
damaged. Do not touch nor disturb any of these
components.
Mount the MGS-250 according to the above consid-
erations, product dimensions (see Section 3), maxi-
mum wiring lengths (see Section 5), and the corre-
sponding mounting dimensions shown in the illustra-
tions that follow.
To open the housing as received use a flat blade
screwdriver and depress the top latch. While push-
ing the latch, grasp the back edge of the housing
near the latch and pull the back away.
4: MOUNTING (CONTINUED)
When mounted, the housing is simply opened by
pressing the top latch with a suitable screwdriver or
other flat blade. With the top latch depressed pull
the housing apart by grasping the sides and pulling
straight out. With the housing separated the
mounting base with terminal blocks will be visible.
STEP 1: Open the housing.
STEP 2: Position the base to the pre-determined
(acceptable) mounting location. Use the gas detec-
tor base to mark the mounting locations as needed.
The hole pattern on the back plate is sized to mount
the gas detector onto various electrical junction
boxes. The other holes may be used as needed to
mount the gas detector to other structures, or onto
a wall.
STEP 3 - FOR WALL MOUNT: Attach the MGS-250
base to the mounting surface using two #6 screws
(provided) through two of the mounting holes, being
careful not to over-tighten the screws.
STEP 3 - FOR JUNCTION BOX MOUNT: Attach the
MGS-250 base to the junction box (using mounting
hardware provided with your junction box) through
the two junction box holes.
STEP 4: Unless you are ready to wire the device,
carefully snap the cover onto the base unit.
Junction Box Flat Surface
NOTE: Use #6
screw or smaller for
Mounting Mounting Holes
wall mounting.
Holes (2 Places) (6 Places)
Cable Gland
(Optional) or
Blanking Plug
Cable Gland
(Installed) (Not Shown)
