Friedrich MW09Y3FM Operating Manual

Friedrich MW09Y3FM Operating Manual

Room air conditioner multi split type
Hide thumbs Also See for MW09Y3FM:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
INVERTER
HEAT & COOLING MODEL
(REVERSE CYCLE)
ROOM AIR CONDITIONER
MULTI SPLIT TYPE

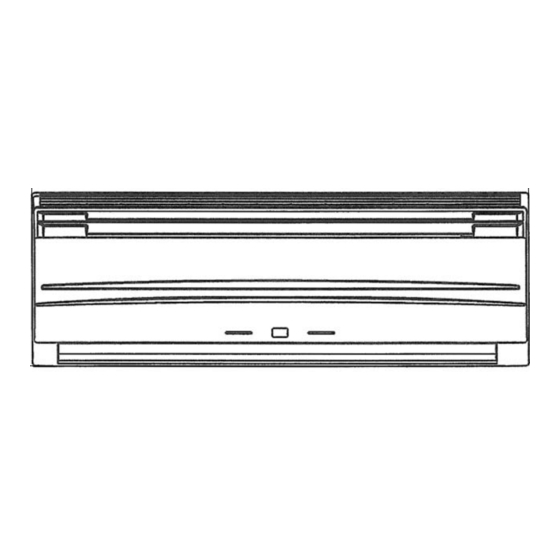

Indoor Unit
MW09Y3FM
MW12Y3FM
MW18Y3FM
Outdoor Unit
MR24DY3F
MR36TQY3F
KEEP THIS MANUAL FOR FUTURE REFERENCE
CONSERVEZ CE MODE D'EMPLOI AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT
GUARDE ESTE MANUAL PARA PODERLO CONSULTAR EN EL FUTURO

OPERATING MANUAL

MANUAL DE FUNCIONAMIENTO
MODE D'EMPLOI
P/N9373420040

Advertisement

Table of Contents
loading

Related Manuals for Friedrich MW09Y3FM

Summary of Contents for Friedrich MW09Y3FM

  • Page 1: Operating Manual

    INVERTER HEAT & COOLING MODEL (REVERSE CYCLE) ROOM AIR CONDITIONER MULTI SPLIT TYPE Indoor Unit MW09Y3FM MW12Y3FM MW18Y3FM Outdoor Unit MR24DY3F MR36TQY3F KEEP THIS MANUAL FOR FUTURE REFERENCE CONSERVEZ CE MODE D'EMPLOI AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT GUARDE ESTE MANUAL PARA PODERLO CONSULTAR EN EL FUTURO OPERATING MANUAL MODE D’EMPLOI...
  • Page 3 Fig. 1 Fig. 5 Fig. 6 To facilitate explanation, the accompanying illustra- tion has been drawn to show all possible indicators; in actral operation, however, the display will only show those indicators appropriate to the current op- eration. Fig. 2 OPERATION TIMER SUPER QUIET COIL DRY...

  • Page 4: Table Of Contents

    G Do not insert fingers or objects into the outlet port or intake grilles. G Do not start and stop air conditioner operation by disconnecting the power supply cord and so on. G Take care not to damage the power supply cord.

  • Page 5: Features And Functions

    SLEEP TIMER When the SLEEP button is pressed during Heating mode, the air conditioner’s thermostat setting is gradually lowered during the period of operation; during cooling mode, the thermostat setting is gradually raised during the period of operation. When the set time is reached, the unit automati- cally turns off.

  • Page 6: Name Of Parts

    G This button is used when installing the conditioner, and should not be used un- der normal conditions, as it will cause the air conditioner’s thermostat function to op- erate incorrectly. G If this button is pressed during normal op- eration, the unit will switch to test opera- tion mode, and the Indoor Unit’s OPERA-...

  • Page 7: Preparation

    G The Remote Control Unit must be pointed at signal receiver (Fig. 1 4) to operate correctly. G Operating Range: About 7 meters. G When a signal is properly received by the air conditioner, a beeping sound will be heard. G If no beep is heard, press the Remote Control Unit button again.

  • Page 8: Operation

    AUTO mode operation.) G During Super Quiet operation, Heating and Cooling performance will be reduced somewhat. If the room does not warm up/ cool down when using SUPER QUIET Operation, please adjust the air conditioner’s Fan Speed. En-5 QUIET Example: When set to COOL.
  • Page 9 About Mode Operation Heating: G Use to warm your room. G When Heating mode is selected, the air conditioner will operate at very low fan speed for about 3 to 5 minutes, after which it will switch to the selected fan setting. This period of time is provided to allow the indoor unit to warm up before begin full operation.

  • Page 10: Timer Operation

    The order of operation is indicated by the arrow in the Remote Control Unit’s Display (OFF → ON, or OFF ← ON). One example of Program timer use might be to have the air conditioner auto- matically stop (OFF timer) after you go to sleep, then start (ON timer) automati- cally in the morning before you arise.

  • Page 11: Sleep Timer Operation

    SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped. To Use the SLEEP Timer While the air conditioner is operating or stopped, press the SLEEP button (Fig. 5 F).

  • Page 12: Adjusting The Direction Of Air Circulation

    Vertical (up-down) direction of airflow is adjusted by pressing the Remote Control Unit’s SET button. Horizontal (right-left) airflow direction is adjusted manually, by moving the Air Flow Direction Louvers. Whenever making horizontal airflow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are stopped.

  • Page 13: Swing Operation

    During cooling/Dry mode : Swings between 1 and 3. : Swings between 3 and 7. During heating mode G The SWING operation may stop temporarily when the air conditioner’s fan is not operating, or when operating at very low speeds. COIL DRY OPERATION The Indoor unit can be dried by pressing the COIL DRY button on the Remote Control Unit so as to avoid going moldy and restrain the breed of bacterium.

  • Page 14: Cleaning And Care

    CLEANING AND CARE G Before cleaning the air conditioner, be sure to turn it off and disconnect the Power. CAUTION! G Be sure the Intake Grille (Fig. 1 9) is installed securely. G When removing and replacing the air filters, be sure not to touch the heat exchanger, as per- sonal injury may result.

  • Page 15: Air Cleaning Filter Installation

    CLEANING AND CARE Air Cleaning Filter Installation 1. Open the Intake Grille and remove the Air filters. Air Filter (Right & Left) 2. Install the Air cleaning filter set (set of 2). 1 Set the air cleaning filter into the air cleaning filter frame.
  • Page 16 G During Cooling or Dry operation, a thin mist may be seen emitted from the indoor unit. This results from the sudden Cooling of room air by the air emitted from the air conditioner, resulting in condensation and misting. G During Heating operation, the outdoor unit’s fan may stop, and steam may be seen rising from the unit.

  • Page 17: Troubleshooting

    G Has a fuse blown out, or a circuit breaker been tripped? G Is the timer operating? G Is the Air Filter dirty? G Air the air conditioner’s intake grille or outlet port blocked? G Did you adjust the room temperature settings (thermostat) cor- rectly?

  • Page 18: Auto Restart

    Multi-type Air conditioner This indoor unit can be connected to a multi-type outdoor unit. The multi-type air conditioner allows multiple indoor units to be operated in multiple locations. The indoor units may be operated simultaneously, in accordance with their respective output.

  • Page 19: Temperature And Humidity Range

    68 °F G If the air conditioner is operated under higher temperature conditions than those listed, the built-in protection circuit may operate to prevent internal circuit damage. Also, during Cooling and Dry modes, if the unit is used under conditions of lower temperature than those listed above, the heat-exchanger may freeze, leading to water leakage and other damage.
