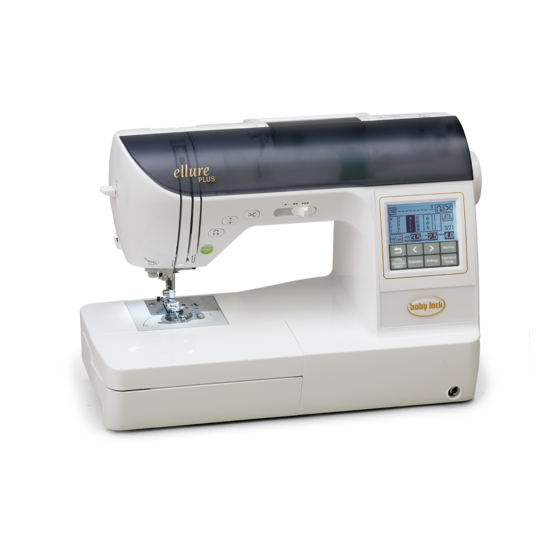

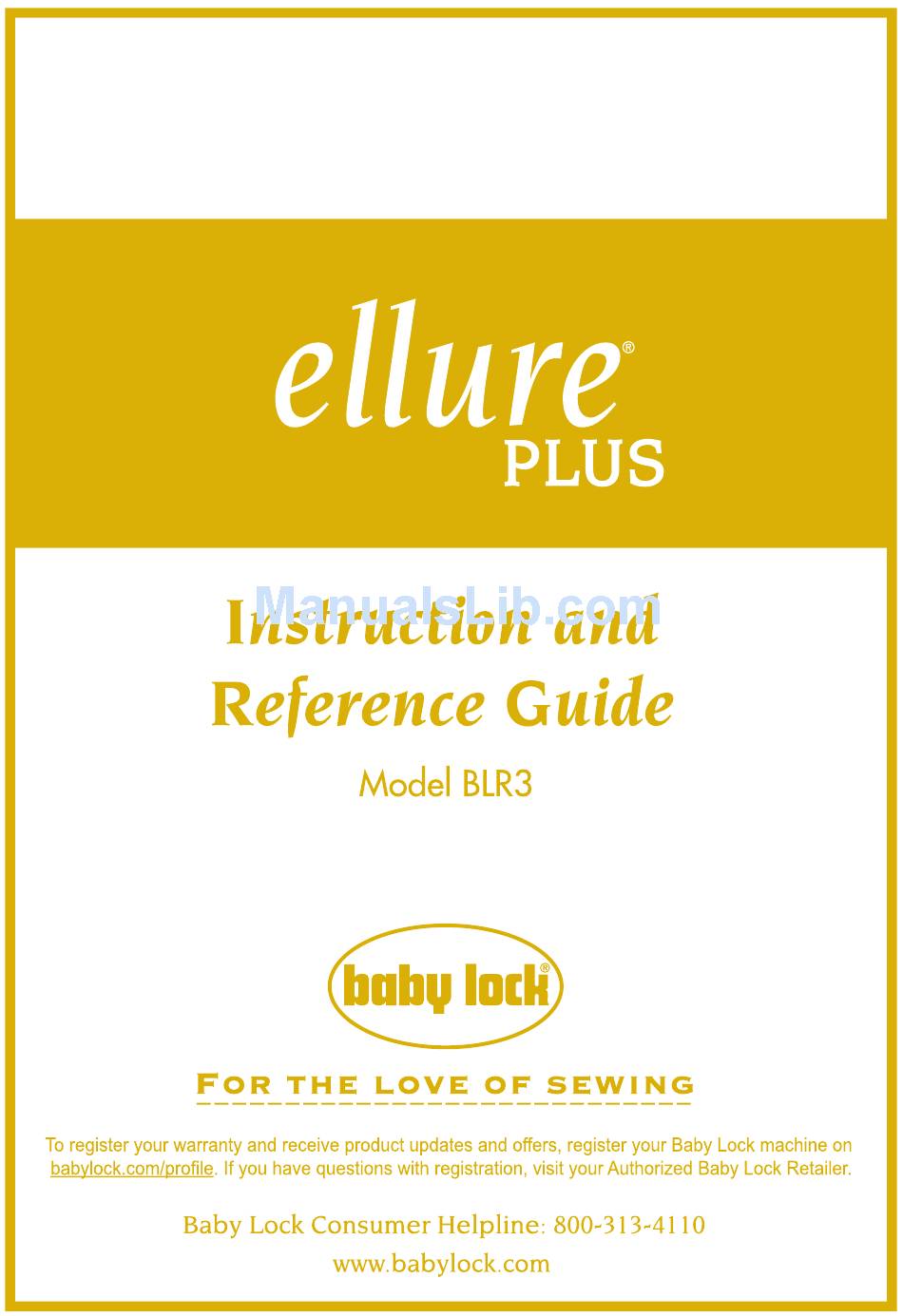

Baby Lock Ellure PLUS BLR3 Instruction And Reference Manual

Hide thumbs Also See for Ellure PLUS BLR3:
Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ellure PLUS BLR3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baby Lock Ellure PLUS BLR3

Summary of Contents for Baby Lock Ellure PLUS BLR3

  • Page 2 If the problem persists, please consult your local authorized Baby Lock retailer. The contents of this manual and specifications of this product are subject to change without notice.

  • Page 3: Important Safety Instructions

    Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or water is spilled on the unit. Return the machine to the nearest authorized Baby Lock retailer or service center for examination, repair, electrical or mechanical adjustment.
  • Page 4 For repair or adjustment: • If the Light unit (light-emitting diode) is damaged, it must be replaced by authorized Baby Lock retailer. • In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the operation manual to inspect and adjust the machine yourself.
  • Page 5 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²...

  • Page 6: Table Of Contents

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Contents IMPORTANT SAFETY INSTRUCTIONS ................1 Introduction ........................7 Sewing Machine Features ....................7 Accessories..........................8 Included accessories ............................8 Optional accessories ............................9 Names of Machine Parts and Their Functions ..............10 Front view ............................... 10 Needle and presser foot section ........................11 Right-side/rear view ............................
  • Page 7 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Useful Functions........................59 Automatically sewing reverse/reinforcement stitches ..................59 Automatically cutting the thread ........................60 Mirroring stitches ............................61 Useful Sewing Tips ......................62 Trial sewing ..............................62 Changing the sewing direction ........................62 Sewing curves ..............................62 Adjusting the presser foot pressure ........................62 Sewing thick fabrics ............................
  • Page 8 Copyright information ..........................153 Embroidery pattern types..........................153 LCD (liquid crystal display) operation ......................154 Selecting a Baby Lock Exclusive pattern/embroidery pattern ................. 156 Selecting characters ............................156 Selecting a frame pattern ..........................158 Using an embroidery card (sold separately) ....................159 Embroidering........................160...

  • Page 9: Introduction

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Introduction Thank you for purchasing this sewing machine. Before using this sewing machine, carefully read the “IMPORTANT SAFETY INSTRUCTIONS” (page 1), and then study this manual for the correct operation of the various functions. In addition, after you have finished reading this manual, store it where it can quickly be accessed for future reference.

  • Page 10: Accessories

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Accessories Included accessories After opening the box, check that the following accessories are included. If any item is missing or damaged, contact your retailer. Note (For U.S.A. only) z Foot controller: Model T This foot controller can be used on this machine model BLR3.

  • Page 11: Optional Accessories

    BLCSA Memo z All specifications are correct at the time of printing. The part codes are subject to change without notice. z Visit your Baby Lock retailer for a complete listing of optional accessories available for your machine. Accessories 9...

  • Page 12: Names Of Machine Parts And Their Functions

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Names of Machine Parts and Their Functions The names of the various parts of the sewing machine and their functions are described below. Before using the sewing machine, carefully read these descriptions to learn the names of the machine parts. Front view a Thread guide plate i Embroidery unit connector slot...

  • Page 13: Needle And Presser Foot Section

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Needle and presser foot section Right-side/rear view a Buttonhole lever a Handle The buttonhole lever is used with the one-step Carry the sewing machine by its handle when buttonhole foot to create buttonholes. transporting the machine. b Thread guide disk b Handwheel Pass the thread through the thread guide disk when Turn the handwheel toward you to raise and lower the...

  • Page 14: Operation Buttons

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Operation buttons The operation buttons help you to easily perform various basic sewing machine operations. a “Start/Stop” button Note Press the “Start/Stop” button to start or stop sewing. The z Do not press (“Thread Cutter” button) machine sews at a slow speed at the beginning of sewing while the button is pressed.

  • Page 15: Operation Panel

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Operation panel The front operation panel has an LCD (liquid crystal display) and operation keys. a LCD (liquid crystal display) (touch panel) f Utility stitch key Selected pattern settings and messages are displayed. Press this key to select a utility stitch or decorative Touch the keys displayed on the LCD to perform stitch.
  • Page 16 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²...

  • Page 17: Getting Ready

    GETTING READY The various preparations required before starting to sew are described in this chapter. Turning the Machine On/Off ..................16 Power supply precautions ..................16 Turning on the machine ..................17 Turning off the machine ..................17 LCD (Liquid Crystal Display) Operation..............18 Viewing the LCD ....................18 Changing the machine settings................19 Checking machine operating procedures ............21 Winding/Installing the Bobbin.................23...

  • Page 18: Turning The Machine On/Off

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Turning the Machine On/Off This section explains how to turn the sewing machine on and off. Power supply precautions Be sure to observe the following precautions concerning the power supply. WARNING ● Use only regular household electricity for the power source. Using other power sources may result in fire, electric shock, or damage to the machine.

  • Page 19: Turning On The Machine

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Turning on the machine Turning off the machine Prepare the included power cord. When you are finished using the sewing machine, turn it off. In addition, before transporting the sewing Make sure that the sewing machine is turned machine to another location, be sure to turn it off. off (the main power switch is set to “...

  • Page 20: Lcd (Liquid Crystal Display) Operation

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY LCD (Liquid Crystal Display) Operation Selected stitch, pattern settings and messages are displayed on the LCD (liquid crystal display) on the front of the sewing machine. Viewing the LCD When the power is turned on, the LCD comes on, and the following screen is displayed. The screen is changed using the keys below the screen, and operations performed by directly touching the icons on the LCD screen.

  • Page 21: Changing The Machine Settings

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Changing the machine settings Various sewing machine operations and sewing settings can be changed. The stitch or machine attributes that can be set are listed below. Attribute Icon Details Settings Needle Specifies where the needle is positioned Down position when the sewing machine is stopped.
  • Page 22 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Turn on the sewing machine. The LCD comes on. Press (Settings key) on the operation panel. The settings screen appears. Press the item to be set. Switch screens using (Previous page key) (Next page key). • The items shown in reverse highlighting are the settings at the time of purchase.

  • Page 23: Checking Machine Operating Procedures

    — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — When settings are complete, press Checking machine operating (Back key).
  • Page 24 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Press (Next page key) to switch to the The initial stitch screen appears again. next page. If you press (Previous page key), you return to the previous page. † Example: Upper threading Note z For details on each topic, refer to the corresponding page in this Operation Manual.

  • Page 25: Winding/Installing The Bobbin

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Winding/Installing the Bobbin This section describes how to wind the thread onto the bobbin, and then insert the bobbin thread. Bobbin precautions Be sure to observe the following precautions concerning the bobbin. CAUTION ● Only use the Bobbin (part code: X52800-120) designed specifically for this sewing machine. Use of any other bobbin may result in injuries or damage to the machine.
  • Page 26 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Turn on the sewing machine. Place the spool of thread for the bobbin onto the spool pin. Slide the spool onto the pin so that the spool is horizontal and the thread unwinds to the front at the bottom.
  • Page 27 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² While holding the thread near the spool with Memo your right hand, as shown, pull the thread with z When sewing with fine, cross-wound thread, your left hand, and then pass the thread behind the thread guide cover and to the front. use the small spool cap, and leave a small space between the cap and the spool.
  • Page 28 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY While holding the thread with your left hand, Press (“Start/Stop” button) once to wind the thread that was pulled out clockwise start winding the bobbin. around the bobbin five or six times with your right hand. a “Start/Stop” button Note •...

  • Page 29: Installing The Bobbin

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Insert the bobbin into the bobbin case so that Installing the bobbin the thread unrolls to the left. Install the bobbin wound with thread. CAUTION ● Use a bobbin that has been correctly wound with thread, otherwise the needle may break or the thread tension will be incorrect.
  • Page 30 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Pass the thread through the slot as shown, and then pull the thread out toward the front. a Cutter The cutter cuts the thread. Note z Make sure that the thread is correctly inserted through the tension-adjusting spring of the bobbin case.

  • Page 31: Upper Threading

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Upper Threading This section describes how to position the spool for the upper thread, and then thread the needle. About the spool of thread CAUTION ● When threading the upper thread, Information about the spools of thread is described carefully follow the instructions.

  • Page 32: Threading The Upper Thread

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Open the top cover. Threading the upper thread Set the spool of thread on the spool pin, and then thread the machine. Turn on the sewing machine. Remove the spool cap that is inserted onto the spool pin. Raise the presser foot lever to raise the presser foot.
  • Page 33 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² While holding the thread lightly with your Note right hand, pull the thread with your left hand, z If the presser foot has been lowered and the and then pass the thread behind the thread guide cover and to the front. shutter is closed, the machine cannot be threaded.

  • Page 34: Threading The Needle

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Note Threading the needle z If the thread is pulled through and cannot be cut correctly, lower the presser foot so that This section describes how to thread the needle. the thread is held in place before cutting the thread.

  • Page 35: Threading The Needle Manually (Without Using The Needle Threader)

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Note Threading the needle manually z If the needle was not completely threaded, (without using the needle threader) but a loop in the thread was formed in the eye of the needle, carefully pull the loop When using special thread, thread with a thickness of through the eye of the needle to pull out the 130/20 or thicker, the wing needle or the twin needle end of the thread.

  • Page 36: Using The Twin Needle

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Insert the extra spool pin onto the bobbin Using the twin needle winder shaft. Insert the extra spool pin so that it is perpendicular to the bobbin winder shaft. With the twin needle, you can sew two parallel lines of the same stitch with two different threads.
  • Page 37 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Thread the upper thread for the right side in the Turn on the sewing machine and select a stitch. same way that the upper thread for the left side • For stitch selection see “Selecting stitching” was threaded. (page 49). •...
  • Page 38 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Press CAUTION ● When changing the sewing direction, press (“Needle Position” button) to raise the needle from the fabric, and then raise the presser foot lever and turn the fabric. Otherwise the needle may break or the machine may be damaged. ●...

  • Page 39: Pulling Up The Bobbin Thread

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Pull out about 10-15 cm (4-5 inches) of the Pulling up the bobbin thread bobbin thread under the presser foot toward the rear of the machine. When making gathers or before free-motion quilting, first pull up the bobbin thread as described below. Insert the bobbin into the bobbin case.

  • Page 40: Replacing The Needle

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Replacing the Needle This section describes how to replace the needle. Needle precautions Be sure to observe the following precautions concerning the handling of the needle. Failure to observe these precautions is extremely dangerous, for example, if the needle breaks and fragments are dispersed. Be sure to read and carefully follow the instructions below.

  • Page 41: Needle Types And Their Uses

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Needle types and their uses The sewing machine needle that should be used depends on the fabric and thread thickness. Refer to the following table when choosing the thread and needle appropriate for the fabric that you wish to sew. Thread Fabric Type/Application Size of Needle...

  • Page 42: Checking The Needle

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Checking the needle Replacing the needle Sewing with a bent needle is extremely dangerous Replace the needle as described below. Use the since the needle may break while the machine is screwdriver and a needle that has been determined to being operated.
  • Page 43 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Hold the needle with your left hand, and then While holding the needle with your left hand, use a screwdriver to turn the needle clamp use the screwdriver to tighten the needle clamp screw toward you (counterclockwise) to screw. remove the needle.

  • Page 44: Replacing The Presser Foot

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Replacing the Presser Foot This section describes how to replace the presser foot. Presser foot precautions Be sure to observe the following precautions concerning the presser feet. CAUTION ● Use the presser foot appropriate for the type of stitch that you wish to sew, otherwise the needle may hit the presser foot, causing the needle to bend or break.
  • Page 45 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Place a different presser foot below the holder Note so that the presser foot pin is aligned with the z When a stitch is selected, the icon for the notch in the holder. Position the presser foot so the letter indicating presser foot that should be used appears in the presser foot type (A, G, I, J, M, N or R) is the screen.

  • Page 46: Removing And Attaching The Presser Foot Holder

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY Hold the presser foot holder in place with your Removing and attaching the right hand, and then tighten the screw using the screwdriver in your left hand. presser foot holder Remove the presser foot holder when cleaning the sewing machine or when installing a presser foot that does not use the presser foot holder, such as the embroidery foot and optional quilting foot.

  • Page 47: Sewing Cylindrical Pieces

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Sewing Cylindrical Pieces Free-arm sewing makes sewing cylindrical pieces easy. Free-arm sewing Removing the flat bed attachment allows for free-arm sewing, making it easier to sew cylindrical pieces such as sleeve cuffs and pant legs. Pull the flat bed attachment off to the left. With the flat bed attachment removed, free- arm sewing is possible.
  • Page 48 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² GETTING READY...

  • Page 49: Sewing Basics

    SEWING BASICS The necessary preparations for sewing are described in this chapter. Sewing........................48 General sewing procedure .................48 Selecting stitching ....................49 Positioning the fabric ..................50 Starting to sew ....................51 Securing the stitching..................53 Cutting the thread ....................54 Setting the Stitch .....................56 Adjusting the stitch width ..................56 Adjusting the stitch length..................57 Adjusting the thread tension ................57 Useful Functions......................59...

  • Page 50: Sewing

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS Sewing Basic sewing operations are described below. Before operating the sewing machine, read the following precautions. CAUTION ● While the machine is in operation, pay special attention to the needle location. In addition, keep your hands away from all moving parts such as the needle and handwheel, otherwise injuries may occur.

  • Page 51: Selecting Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Selecting stitching Stitches are selected using LCD operations. There are 71 utility stitches. Right after turning the power on, the straight stitch (left needle position) is selected. The machine can also be set to select the straight stitch (center needle position). For details on changing the setting, refer to page 19.

  • Page 52: Positioning The Fabric

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS While holding the end of the thread and the Positioning the fabric fabric with your left hand, turn the handwheel toward you (counterclockwise) with your right hand to lower the needle to the starting point Be sure that the fabric pieces are sewn in the correct of the stitching.

  • Page 53: Starting To Sew

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Starting to sew Once you are ready to start sewing, you can start the sewing machine. The sewing speed can be adjusted using either the sewing speed controller or the foot controller. • If you continue to hold the (“Start/ Note Stop”...
  • Page 54 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS Insert the foot controller plug into its jack on • Slowly press down on the foot controller. the right side of the sewing machine. Pressing it down hard starts sewing too quickly. The machine starts sewing. When the end of the stitching is reached, completely release the foot controller.

  • Page 55: Securing The Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Securing the stitching When sewing with the straight stitch, for example, at the end of an opening or where seams do not overlap, use reverse stitching or reinforcement stitching to secure the end of the thread. Lower the needle into the fabric at the beginning of the stitching, and then lower the presser foot lever.

  • Page 56: Cutting The Thread

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS After 3 to 5 reverse stitches have been sewn, Cutting the thread release (“Reverse/Reinforcement Stitch” button). When you have finished sewing, cut the threads. The machine stops sewing. ■ Using (“Thread Cutter” button) Press (“Start/Stop” button), or press down on the foot controller.
  • Page 57 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ Using the thread cutter When sewing with thread thicker than #30, nylon or metallic threads, or other special threads, use the thread cutter on the side of the machine to cut the threads. When you wish to finish the stitching and the sewing machine is stopped, press (“Needle Position”...

  • Page 58: Setting The Stitch

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS Setting the Stitch This machine is preset with the default settings for the stitch width, stitch length, and upper thread tension for each stitch.However, you can change any of the settings by pressing in the screen, then following the procedure described in this section.

  • Page 59: Adjusting The Stitch Length

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Adjusting the stitch length Adjusting the thread tension The stitch length can be adjusted to make the stitch You may need to change the thread tension, longer or shorter. depending on the fabric and thread being used. ■ Correct thread tension Each press of makes the stitch shorter.
  • Page 60 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS ■ Upper thread is too loose If the upper thread is visible from the wrong side of the fabric, the upper thread is too loose. a Wrong side of fabric b Right side of fabric c Upper thread d Bobbin thread e The upper thread is visible from the wrong side of the fabric.

  • Page 61: Useful Functions

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Useful Functions Functions useful in improving sewing efficiency are described below. Position the fabric under the presser foot, and Automatically sewing reverse/ then press (“Start/Stop” button) once. reinforcement stitches The sewing machine can be set to automatically sew reverse or reinforcement stitches at the beginning and end of the stitching.

  • Page 62: Automatically Cutting The Thread

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS Set the fabric in place, and press Automatically cutting the (“Start/Stop” button) once. thread The sewing machine can be set to automatically cut the threads at the end of the stitching. This is called “programmed thread-cutting”. If programmed thread- cutting is set, automatic reverse/reinforcement stitching is also set.

  • Page 63: Mirroring Stitches

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Mirroring stitches You can sew the mirror image of a stitch horizontally (left and right). Turn on the sewing machine. The LCD comes on. Select a stitch. • For details on selecting a stitch, refer to “Selecting stitching” (page 49). Press on the screen.

  • Page 64: Useful Sewing Tips

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS Useful Sewing Tips Various ways to achieve better results for your sewing projects are described below. Refer to these tips when sewing your project. Trial sewing Sewing curves After you have set up the machine with the thread Stop sewing, and then slightly change the sewing and needle appropriate for the type of fabric being direction to sew around the curve.

  • Page 65: Sewing Thick Fabrics

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Turn the presser foot pressure dial at the back When you encounter a seam that is too thick of the machine to adjust the pressure of the to feed under the foot, raise the presser foot presser foot. lever. The presser foot pressure can be set to one of four levels (between 1 and 4).

  • Page 66: Sewing Thin Fabrics

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS Sewing an even seam Sewing thin fabrics allowance When sewing thin fabrics, the stitching may become misaligned or the fabric may not feed correctly. If this To sew an even seam, start sewing so that the seam occurs, place thin paper or stabilizer material under allowance is to the right of the presser foot, and the the fabric and sew it together with the fabric.

  • Page 67: Hands-Free Raising And Lowering Of The Presser Foot

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ Aligning the fabric with a mark on the needle Hands-free raising and plate or bobbin cover (with mark) lowering of the presser foot While sewing, align the edge of the fabric with the 16 mm (approx. 5/8 inch) mark on the needle plate or bobbin cover (with mark) depending on Using the knee lifter, you can raise and lower the the needle position (left or middle (center) needle...
  • Page 68 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² SEWING BASICS ■ Using the knee lifter Stop the sewing machine. • Do not use the knee lifter while the sewing machine is operating. With your knee, press the knee lifter to the right. Keep the knee lifter pressed to the right. The presser foot is raised.

  • Page 69: Utility Stitches

    UTILITY STITCHES The various stitches and their applications are described in this chapter. Stitch Setting Chart ......68 Appliqué, Patchwork and Quilt Stitching ........103 Utility stitches ........ 68 Other stitches.........72 Appliqué stitching ......104 Patchwork (crazy quilt) Selecting Stitching .......75 stitching........105 Stitch types........

  • Page 70: Stitch Setting Chart

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Stitch Setting Chart Applications, stitch lengths and widths and whether the twin needle can be used are listed for utility stitches in the following table. Utility stitches Stitch Width Stitch Length Reverse/ [mm (inch)] [mm (inch)] Stitch Name Pattern Application Reinforcement...
  • Page 71 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Stitch Width Stitch Length Reverse/ [mm (inch)] [mm (inch)] Stitch Name Pattern Application Reinforcement Stitching Auto Manual Auto Manual Blind hem stitching on medium 1.0–3.5 3← – →3 Reinforcement weight fabrics (1/16) (1/16–1/8) Blind hem stitch Blind hem stitching on stretch 1.0–3.5 3←...
  • Page 72 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Stitch Width Stitch Length Reverse/ [mm (inch)] [mm (inch)] Stitch Name Pattern Application Reinforcement Stitching Auto Manual Auto Manual 0.0–7.0 1.0–4.0 Decorative stitch Decorative stitching Reinforcement (7/32) (0–1/4) (1/16) (1/16–3/16) Decorative stitching and elastic- 1.5–7.0 0.2–4.0 Serpentine stitch Reinforcement attaching (3/16)

  • Page 73: Stitch Setting Chart

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Stitch Width Stitch Length Reverse/ [mm (inch)] [mm (inch)] Stitch Name Pattern Application Reinforcement Stitching Auto Manual Auto Manual Keyhole buttonholes for thick or 3.0–7.0 0.3–1.0 Automatic furry fabrics (1/4) (1/8–1/4) (1/32) (1/64–1/16) reinforcement Keyhole buttonholes for 3.0–7.0 0.3–1.0 Automatic Buttonhole stitch medium weight and thick fabrics...

  • Page 74: Other Stitches

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Other stitches Stitch Type Pattern 29* 30* Large: Decorative Large, Small: stitches Small 31** 32 (*Not possible) 46* 47 48* 49* 50* Satin (*Not Large No (*Not (*Not stitches 17* 18* possible) possible) possible) Cross- Large No (*Not stitches 11* 12* 13* 14* 15*...
  • Page 75 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Stitch Type Pattern Character Large, stitches Small (Gothic font) Character stitches No Large (Script font) Stitch Setting Chart 73...
  • Page 76 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Stitch Type Pattern Character stitches No Large, (Outline Small style)

  • Page 77: Selecting Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Selecting Stitching This section provides details on the various types of stitches available and the procedure for selecting a stitch. g Combined utility stitches (Can be combined) Stitch types You can sew with combinations from 39 utility stitches. A stitch can be selected from the following types h Decorative satin stitches available.
  • Page 78 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Select the stitch type. If necessary, specify the setting for automatic reverse/reinforcement stitching and adjust the † When a decorative stitch is selected stitch length, etc. • For details on sewing with each of the utility stitches, begin on page 79. Note z When a stitch is selected, the icon for the presser foot that should be used appears on...

  • Page 79: Saving Stitch Settings

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² † Example: Bus Saving stitch settings This machine is preset with the default settings for the stitch width (zigzag width), stitch length, thread tension, programmed thread cutting, and automatic reverse/reinforcement stitching for each stitch. However, if you wish to save specific settings for a stitch so that they can be used later, press after changing the settings to save the new settings with...
  • Page 80 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Press Note z The next time that the same straight stitch is selected, the stitch length is set to 2.0 mm. z All stitch settings (stitch width (zigzag width), stitch length, thread tension, programmed thread cutting, and automatic reverse/reinforcement stitching, etc.) are saved, not just the setting that was changed.

  • Page 81: Overcasting Stitches

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Overcasting Stitches Sew overcasting stitches along the edges of cut fabric to prevent fabric from fraying. 15 stitches are available for overcasting. The procedure for sewing overcasting stitch is explained according to the presser foot that is used. Sewing overcasting stitches using overcasting foot “G” Three stitches can be used to sew overcasting with overcasting foot “G”.

  • Page 82: Sewing Overcasting Stitches Using Zigzag Foot "J

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Sewing overcasting stitches using zigzag foot “J” Seven stitches can be used to sew overcasting stitches with zigzag foot “J”. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual Zigzag stitch (center...

  • Page 83: Sewing Overcasting Stitches Using The Optional Side Cutter

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Sewing overcasting stitches using the optional side cutter Using the optional side cutter, seam allowances can be finished while the edge of the fabric is cut off. Five stitches can be used to sew overcasting stitches with the side cutter. Note z Thread the needle manually when using the side cutter, or only attach the side cutter after threading the needle using the needle threader.
  • Page 84 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Raise the presser foot lever to check that the Position the fabric in the side cutter. side cutter is securely attached. The cut in the fabric should be positioned over the guide plate of the side cutter. Pass the upper thread under the side cutter, and then pull it out toward the rear of the sewing machine.

  • Page 85: Basic Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Basic Stitching Straight stitches are used for sewing plain seams. Five stitches are available for basic stitching. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual 0.0–7.0 5–30 Basting stitch Temporarily securing (0–1/4) (3/4)
  • Page 86 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES ■ Changing the needle position Lower the presser foot lever, and then start sewing. The needle position used as the baseline is different for the straight stitch (left needle • For details, refer to “Starting to sew” (page position) and the straight stitch (center needle 51).

  • Page 87: Blind Hem Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Blind Hem Stitching Secure the bottoms of skirts and pants with a blind hem. Two stitches are available for blind hem stitching. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual Blind hem stitching on medium 1.0–3.5...
  • Page 88 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES ■ If the needle does not catch the hem fold Adjust the stitch width until the needle slightly catches the fold of the hem. The needle is too far to the right. Press to increase the stitch width so that the needle slightly catches the fold of the hem.

  • Page 89: Buttonhole Stitching/Button Sewing

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Buttonhole Stitching/Button Sewing Buttonholes can be sewn and buttons can be sewn on. 10 stitches are available for sewing one-step buttonholes and one stitch for sewing on buttons. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto...

  • Page 90: Buttonhole Sewing

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Buttonhole sewing The maximum buttonhole length is about 28 mm (1-1/8 inches) (diameter + thickness of the button). Buttonholes are sewn from the front of the presser foot to the back, as shown below. a Reinforcement stitching The names of parts of buttonhole foot “A”, which is Use chalk to mark on the fabric the position used for sewing buttonholes, are indicated below.
  • Page 91 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ If the button does not fit in the button guide Select a stitch. plate Add together the diameter and thickness of the button, and then set the button guide plate to the calculated length. (The distance between the markings on the presser foot scale is 5 mm (3/16 inch).) a Presser foot scale b Length of buttonhole (diameter + thickness of...
  • Page 92 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Pull down the buttonhole lever as far as Insert a pin along the inside of one bar tack at possible. the end of the buttonhole stitching to prevent the stitching from being cut. a Buttonhole lever a Pin The buttonhole lever is positioned behind the Use the seam ripper to cut towards the pin and bracket on the buttonhole foot.
  • Page 93 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ Changing the density of the stitching ■ Sewing buttonholes on stretch fabrics Adjust the stitch length. When sewing buttonholes on stretch fabrics, use a gimp thread. Hook the gimp thread onto the part of buttonhole foot “A” shown in the illustration. •...

  • Page 94: Button Sewing

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Select stitch Button sewing Buttons can be sewn on with the sewing machine. Buttons with two or with four holes can be attached. Measure the distance between the holes in the button to be attached. • For details, refer to “Selecting stitching” (page 49).
  • Page 95 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Turn the handwheel toward you When you are finished attaching the button, (counterclockwise) to check that the needle slide the drop feed lever to (to the right correctly goes into the two holes of the button. as seen from the rear of the machine) to raise If it seems as if the needle will hit the button, the feed dogs.

  • Page 96: Zipper Insertion

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Zipper Insertion A zipper can be sewn in place. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual Straight stitch Attaching zippers (center 0.0–7.0 0.2–5.0 Sewing concealed seams and needle (1/8) (0–1/4)
  • Page 97 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Align the seam with the center of the zipper, Select stitch and then baste the zipper in place. • For details, refer to “Selecting stitching” (page 49). a Wrong side of fabric b Basting stiching CAUTION c Zipper ● When using zipper foot “I”, be sure to Remove about 5 cm (2 inches) from the end of select the straight stitch (center needle the basting on the outside.

  • Page 98: Inserting A Side Zipper

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Press open the seam allowance from the Inserting a side zipper wrong side of the fabric. Stitching is visible on only one piece of fabric. Use this type of zipper application for side openings and back openings. a Wrong side of fabric Press the seam allowance so that the right side (the side that will not be stitched) has an extra...
  • Page 99 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Select stitch When you are about 5 cm (2 inches) from the end of the zipper, stop the sewing machine with the needle lowered (in the fabric), raise the presser foot lever. Open the zipper and continue sewing. • For details, refer to “Selecting stitching” (page 49).
  • Page 100 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Topstitch around the zipper. Sew reverse stitches at the end of the zipper opening and align the zipper teeth with the side of the presser foot. a Right side of fabric b End of zipper opening c Reverse stitches d Beginning of stitching e Basting stitching CAUTION...

  • Page 101: Zipper/Piping Insertion

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Zipper/Piping Insertion A zipper and piping can be sewn in place. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual Straight stitch Attaching zippers Sewing 0.0–7.0 0.2–5.0 (left needle concealed seams and piping (0–1/4) (3/32) (1/64–3/16)

  • Page 102: Inserting A Piping

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Inserting a piping CAUTION ● After adjusting the needle position, slowly Place the piping between two fabric pieces turn the handwheel toward you turned inside out, as shown below. (counterclockwise) and check that the needle does not touch the presser foot. If the needle hits the presser foot, the needle may bend or break.

  • Page 103: Sewing Stretch Fabrics And Elastic Tape

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Sewing Stretch Fabrics and Elastic Tape Stretch fabrics can be sewn and elastic tape can be attached. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual 1.0–3.0 1.0–4.0 Stretch stitch Stretch fabrics (1/16) (1/16–1/8)
  • Page 104 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Select a stitch. † Example: 2-point zigzag stitch † Example: Elastic-attaching stitch • For details, refer to “Selecting stitching” (page 49). Sew the elastic tape to the fabric while stretching the tape so that it is the same length as the fabric.

  • Page 105: Appliqué, Patchwork And Quilt Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Appliqué, Patchwork and Quilt Stitching The stitches that can be used for sewing appliqués, patchwork and quilts are described below. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual Attaching appliqués (center 0.0–7.0 0.0–4.0 baseline/reverse stitching)

  • Page 106: Appliqué Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Select a stitch. Appliqué stitching For best results, use the included open toe foot. Cut out the appliqué, leaving a seam allowance of between 3 and 5 mm (1/8 and 3/16 inch). • For details, refer to “Selecting stitching” (page 49).

  • Page 107: Patchwork (Crazy Quilt) Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Patchwork (crazy quilt) Piecing stitching Sewing together two pieces of fabric is called “piecing”. The fabric pieces should be cut with a Fold the edge of the top piece of fabric and 7 mm (1/4 inch) seam allowance. place it over the lower piece. Sew a piecing straight stitch 7 mm (1/4 inch) from either the right side or the left side of the presser foot.
  • Page 108 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES ■ For a seam allowance on the left side When sewing with a seam allowance, align the left edge of the narrow part of the 1/4 inch Align the left side of the presser foot with the quilting foot with the fabric edge.

  • Page 109: Quilting

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Lower the presser foot lever, insert the presser Quilting foot holder screw, and then tighten the screw with the screwdriver. Sandwiching batting between the top and bottom layers of fabric is called “quilting”. Quilts can easily be sewn using the optional walking foot and the optional quilting guide.

  • Page 110: Free-Motion Quilting

    Hold the quilting foot in place with your right hand, and then tighten the presser foot holder screw using the screwdriver in your left hand. Note z The optional quilting guide is available through Baby Lock retailers. a Presser foot holder screw...

  • Page 111: Satin Stitching Using The Sewing Speed Controller

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Satin stitching using the CAUTION sewing speed controller ● Be sure to securely tighten the screws with the screwdriver, otherwise the A decorative stitch can be sewn by changing the needle may touch the presser foot, stitch width of a satin stitch. If the sewing machine is causing it to bend or break.
  • Page 112 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Press (Back key). The initial screen appears again. Select stitch • For details, refer to “Selecting stitching” (page 49). While sewing, slide the sewing speed controller to adjust the stitch width. Slide the controller to the left to make the width narrower.

  • Page 113: Reinforcement Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Reinforcement Stitching Reinforce points that will be subject to strain, such as sleeve holes, inseams and pocket corners. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual Triple stretch Reinforcing the seams of sleeves 0.0–7.0 1.5–4.0 stitch...
  • Page 114 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Attach buttonhole foot “A”. Pull down the buttonhole lever as far as possible. • For details, refer to “Replacing the presser foot” (page 42). Select stitch a Buttonhole lever The buttonhole lever is positioned behind the bracket on the buttonhole foot. •...

  • Page 115: Darning

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Darning Fabric that has been torn can be darned. Darning is sewn as shown below. a Reinforcement stitching Determine the desired length of the darning. Select stitch Set the button guide plate on buttonhole foot “A” to the desired length. (The distance between the markings on the presser foot scale is 5 mm (3/16 inch).) •...
  • Page 116 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Pass the upper thread down through the hole in Raise the presser foot lever, remove the fabric, the presser foot. and then cut the threads. • When lowering the presser foot, do not push Raise the buttonhole lever to its original in the front of the presser foot, otherwise the position.

  • Page 117: Eyelet Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Eyelet Stitching Eyelets, such as those on belts, can be sewn. Three sizes of eyelets are possible: 7 mm, 6 mm and 5 mm (1/4, 15/64 and 3/16 inch). Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto...

  • Page 118: Horizontal Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Horizontal Stitching Horizontal stitching is used to attach appliqués to fabric that cannot be moved around, such as cylindrical pieces. Straight stitches and zigzag stitches that sew to either the left or right are available. Stitch Width Stitch Length Presser Stitch Name Pattern...
  • Page 119 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Press (“Reverse/Reinforcement Stitch” button). Hold (“Reverse/Reinforcement Stitch” button) pressed until the stitching reaches the upper-left corner. The fabric is fed forward. After you have sewn to the corner, stop the sewing machine, and then select stitch Start sewing. The fabric is fed to the left. After you have sewn to the corner, stop the sewing machine, and then select stitch again.

  • Page 120: Decorative Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Decorative Stitching The utility stitches contain the following decorative stitches. Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual 0.0–7.0 1.0–4.0 (3/16) (0–1/4) (3/32) (1/16–3/16) Fagoting Sewing two pieces of fabric stitch together across an open seam 2.5–7.0...

  • Page 121: Fagoting

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Stitch Width Stitch Length Presser [mm (inch)] [mm (inch)] Stitch Name Pattern Application Foot Auto Manual Auto Manual 1.5–7.0 1.0–4.0 (15/64) (1/16–1/4) (1/16) (1/16–3/16) Hemstitching Heirloom stitching, etc. 1.5–7.0 1.0–4.0 (3/16) (1/16–1/4) (1/16) (1/16–3/16) 0.0–7.0 2.0–4.0 Ladder stitch (3/16) (0–1/4) (1/8) (1/16–3/16)

  • Page 122: Scallop Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Scallop stitching Smocking The wave-shaped repeating pattern that looks like The decorative stitch created by stitching or shells is called “scalloping”. It is used on the collars embroidering over gathers is called “smocking”. It is of blouses and to decorate the edges of projects. used to decorate the front of blouses or cuffs.

  • Page 123: Shell Tuck Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Select stitch Shell tuck stitching The gathers that look like shells are called “shell tucks”. They are used to decorate trims, the front of blouses or cuffs made of thin fabrics. Fold the fabric along the bias. • For details, refer to “Selecting stitching” (page 49).

  • Page 124: Joining

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Sew while making sure that the needle drops Joining slightly off the edge of the fabric. Decorative bridging stitches can be sewn over the seam allowance of joined fabrics. This is used when making a crazy quilt. Attach zigzag foot “J”.

  • Page 125: Heirloom Stitching

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Select a stitch. Heirloom stitching The stitches that can be used are When sewing with the wing needle, the needle holes are enlarged, creating a lace-like decorative stitch. This is used to decorate hems and tablecloths on thin or medium weight fabrics in addition to plain weave fabrics.
  • Page 126 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Partially removing threads is called “drawnwork”. Press on the LCD. This gives a beautiful result with fabrics that have a The pattern displayed at the top of the screen loose weave. is mirrored. Two ways to create drawnwork are described below. ■...
  • Page 127 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ Drawnwork (Example 2) Pull out several threads from two sections of the fabric, separated by an unfrayed section of about 4 mm (3/16 inch). a 4 mm (3/16 inch) Attach monogramming foot “N”. • For details, refer to “Replacing the presser foot”...

  • Page 128: Sewing The Various Built-In Decorative Patterns

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Sewing the Various Built-in Decorative Patterns You can sew decorative stitches, satin stitches, cross stitches, decorative satin stitches, combined utility stitches and 3 types of character stitches. All are sewn with monogramming foot “N”. Sewing beautiful patterns Sewing patterns In order to sew the patterns correctly, the following Attach monogramming foot “N”.

  • Page 129: Changing The Pattern Size

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Changing the pattern size Changing the stitch density The size of character stitches in the Gothic font and If a decorative satin stitch has been selected, the outline style, decorative stitches, and decorative satin stitch density can be changed. stitches can be switched between large and small.

  • Page 130: Changing The Length For Satin Stitches

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Press Changing the length for satin stitches The length for one satin stitch can be changed in five gradations. Press (Utility stitch key) on the operation panel, and select (Satin stitch). It turns to and the pattern is longer. Select a satin stitch pattern.

  • Page 131: Shifting Patterns

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Shifting patterns Press Satin stitches can be shifted to the left or right by half the width of the pattern, allowing you to create a step- shaped pattern. This is called a “step pattern”. Select once to move the stitch pattern to the left by half the width of the stitch pattern.

  • Page 132: Combining Patterns

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES Combining patterns Press You can sew with combinations of stitches from character stitches, decorative stitches, satin stitches, combined utility stitches, decorative satin stitches and cross stitches. Touch (Utility stitch key) on the operation panel, and select the stitch type. Select the first pattern.
  • Page 133 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ Repeating patterns Select the next pattern. When multiple stitches are combined, the sewing The combined pattern appears on the screen. machine stops when the pattern displayed on the screen has been completed. Use the following operations to sew a combined pattern repeatedly. After the patterns have been combined, press If pressed again, it turns to (single sewing).
  • Page 134 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES ■ Mirroring a pattern image ■ Checking the pattern When the specified pattern is not displayed on the After a single pattern has been selected, press screen, check the pattern using the following steps. to mirror the pattern image horizontally. Press The screen for checking the pattern is displayed.

  • Page 135: Saving Patterns

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ Retrieving a pattern Saving patterns Press Combined patterns can be saved for later use. Since saved patterns are not lost after the sewing machine is Retrieve the saved pattern. turned off, they can be retrieved at any time. Up to 10 patterns can be saved.

  • Page 136: Realigning The Pattern

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES ■ Deleting a saved pattern Realigning the pattern Saved pattern in the pockets can be deleted. The pattern may not be sewn correctly, depending on Press the type of fabric being sewn or the sewing speed. If this occurs, adjust the pattern while sewing on a piece of scrap fabric that is the same as that used for your project.
  • Page 137 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Start sewing. Press (Settings key) on the operation panel. The pattern for making the adjustment is The settings screen appears. sewn. Press The sewing machine stops after it has To adjust the vertical position, press finished sewing the pattern. vertical pattern adjustment.
  • Page 138 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² UTILITY STITCHES ■ Horizontal pattern adjustment Press to increase the horizontal space in the design. Press to decrease the horizontal space in the design. Press (Back key). It returns to the screen for adjusting the pattern. Select once again, start the sewing machine and check the stitching.

  • Page 139: Embroidery

    Embroidery step by step ....140 LCD (liquid crystal display) Attaching the Embroidery Foot..141 operation ..........154 Attaching the embroidery foot ..141 Selecting a Baby Lock Exclusive Removing the embroidery foot..143 pattern/embroidery pattern..156 Attaching the Embroidery Unit..144 Selecting characters .....156 Selecting a frame pattern .....158 Embroidery unit precautions ..

  • Page 140: Successful Embroidering

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Successful Embroidering This section describes the preparations and basic procedures for embroidering. ■ Stabilizer material What to prepare Stabilizer material is used for backing and topping to stabilize and support the fabric being The following is necessary for embroidering. embroidered so the stitches can be sewn with the least amount of interference or instability.
  • Page 141 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ Needle Use a 75/11 home sewing machine needle. When embroidering on thick fabrics such as denim, use a 90/14 home sewing machine needle. Memo z A 75/11 needle is already installed when the sewing machine is purchased. z When replacing the needle, refer to “Replacing the needle”...

  • Page 142: Embroidery Step By Step

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Embroidery step by step The basic steps for embroidery are as follows. Attach the embroidery foot “Q”. Presser foot attachment For details on attaching the embroidery foot, refer to “Attaching the embroidery foot” (page 141). ↓ Use a needle matched to the fabric. Checking the needle For details on replacing the needle, refer to “Replacing the needle”...

  • Page 143: Attaching The Embroidery Foot

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Attaching the Embroidery Foot This section describes how to attach the embroidery foot. Attaching the embroidery foot CAUTION ● Before replacing the presser foot, be sure Attach the embroidery foot when embroidering. Have to turn off the sewing machine, otherwise the included embroidery foot “Q”...
  • Page 144 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Loosen the presser foot holder screw and Secure the embroidery foot with the presser remove the presser foot holder. foot holder screw. Turn the screwdriver toward the back. Set the embroidery foot perpendicular. a Screwdriver b Presser foot holder c Presser foot holder screw Hold the embroidery foot with your right Firmly tighten the presser foot holder screw.

  • Page 145: Removing The Embroidery Foot

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Removing the embroidery foot Press (“Needle Position” button) once or twice to raise the needle. a “Needle Position” button Turn off the sewing machine. Raise the presser foot lever. a Presser foot lever The presser foot is raised. While pressing in the lever at the back of the embroidery foot with your finger, loosen the presser foot holder screw, and then remove embroidery foot “Q”.

  • Page 146: Attaching The Embroidery Unit

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Attaching the Embroidery Unit This section describes how to attach the embroidery unit. Embroidery unit precautions Attaching the embroidery unit Cautions for the embroidery unit will be explained Get the included embroidery unit ready. below. CAUTION ● Do not move the sewing machine with the embroidery unit in place.
  • Page 147 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Slide the embroidery unit onto the sewing machine arm. CAUTION Push it in until it clicks and stops. ● Do not put your hands or other objects near the carriage. It may cause injury. Note z If the machine is initialized with hands or objects near the carriage, the screen may return to the initial display.

  • Page 148: Removing The Embroidery Unit

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Hold the release button on the bottom left of Removing the embroidery unit the embroidery unit, and slowly pull the embroidery unit to the left. Make sure that the sewing machine is completely stopped and follow the instructions below. Remove the embroidery frame.

  • Page 149: Preparing The Fabric

    — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — Preparing the Fabric After attaching a stabilizer material to the embroidery fabric, it is stretched on an embroidery frame.

  • Page 150: Setting The Fabric In The Embroidery Frame

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Setting the fabric in the CAUTION embroidery frame ● Use the embroidery frame that matches the size of the pattern being embroidered. The fabric is taut in the embroidery frame. If the Otherwise, the embroidery frame may be fabric is loose, the quality of the embroidery pattern hit by the presser foot and cause injury or may be poor.
  • Page 151 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Tighten the adjustment screw by hand just Tighten the adjustment screw while removing enough to secure the fabric. any slack in the fabric by hand. The goal is to have a drum-like sound when the stretched fabric is struck lightly. Gently remove the fabric from the frame without loosening the adjustment screw.
  • Page 152 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY ■ Embroidery on fabrics that cannot be stretched Place the embroidery sheet on the inner frame. on an embroidery frame When small pieces of fabric that cannot be stretched on an embroidery frame or thin pieces like ribbon are being embroidered, use stabilizer material as a base to stretch on the frame.

  • Page 153: Attaching The Embroidery Frame

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Attaching the Embroidery Frame This section describes how to attach the embroidery frame. Attaching the embroidery frame Wind the embroidery bobbin thread onto the bobbin and set it into the bobbin case. • For details, refer to “Winding/Installing the Bobbin”...

  • Page 154: Removing The Embroidery Frame

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Pass the embroidery frame under the presser Removing the embroidery foot while raising the presser foot lever even further. frame Make sure that the sewing machine is completely stopped and follow the instructions below. Raise the presser foot lever. CAUTION ●...

  • Page 155: Selecting Embroidery Patterns

    (page 175). • For details, refer to “Selecting a Baby Lock Exclusive pattern/embroidery pattern” (page 156). ■ Alphabet patterns There are 6 types of characters (European characters);...

  • Page 156: Lcd (Liquid Crystal Display) Operation

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Press (Settings key). LCD (liquid crystal display) operation The LCD (liquid crystal display) is operated using the operation keys on the operation panel. The use of the keys for embroidery will be explained below. ■ Operation keys NAME OF COLOR: Typical color name TIME: Time required for embroidering NEEDLE COUNT: Needle progress number #123: Select from the following thread color...
  • Page 157 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ LCD button The needle progresses one color or one stitch (if pressed continuously, 9 When a specific pattern is selected, stitches to 20 stitches) at a time and press this key and then, press changes the position for starting the to switch the display.

  • Page 158: Selecting A Baby Lock Exclusive Pattern/Embroidery Pattern

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Selecting a Baby Lock Exclusive pattern/embroidery pattern There are total of 106 embroidery patterns, such as fruits and animals, saved in the machine's memory. 40 Baby Lock Exclusive patterns 66 Embroidery patterns When a pattern is selected, it can be embroidered.
  • Page 159 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Select the character style. Select the characters. • If a wrong character was selected, press • To enter a space, press “_”. † Example: Welcome Switch between uppercase/lowercase Switch among large/medium/small sizes Memo z The character pattern that you created can be saved for later use.

  • Page 160: Selecting A Frame Pattern

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Selecting a frame pattern 10 shapes, such as squares and circles, can be combined with 12 stitch types. Memo z Refer to “Frame patterns“ in the Quick reference guide for frame pattern shapes and When a stitch is selected, it can be stitches.

  • Page 161: Using An Embroidery Card (Sold Separately)

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Insert the embroidery card in the embroidery Using an embroidery card card slot on the right side of the sewing machine. (sold separately) Face the arrow on the embroidery card toward you, and insert it in the direction of the arrow. If an embroidery card is used, you can embroider patterns other than the patterns saved in the sewing machine.

  • Page 162: Embroidering

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Embroidering After the preparations are done, you can try embroidering. This section describes the steps for embroidering and appliquéing. Sewing attractive finishes There are many factors that go into sewing beautiful embroidery. Using the appropriate stabilizer (page 147) and hooping the fabric in the frame (page 148) are two important factors mentioned earlier.

  • Page 163: Embroidering A Pattern

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Follow steps through of “Installing the Embroidering a pattern bobbin” (page 27). Embroidery patterns are embroidered with a change Note of thread after each color. z Before embroidering, check that there is enough thread in the bobbin. If you continue Prepare embroidery thread of the color shown sewing without enough thread in the on the screen.
  • Page 164 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY † Example: Embroidery thread number selected Lower the presser foot lever. a Presser foot lever Press (“Start/Stop” button). Set the embroidery thread, and thread the a “Start/Stop” button needle. After progressing 5-6 stitches, press • Refer to “Threading the upper thread” (page (“Start/Stop”...

  • Page 165: Appliquéing

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Press (“Start/Stop” button) again. Appliquéing The embroidery begins again. Stitching stops automatically with Prepare the base fabric and the appliqué fabric reinforcement after one color has been (appliqué piece). Press (Settings key), and completed. When automatic thread cutting set the thread color display to NAME OF COLOR, so is set, the thread is cut.
  • Page 166 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Remove the fabric from the embroidery frame, Lower the presser foot lever, and press and cut it out along the cut-out line. (“Start/Stop” button). Cut carefully along the stitching and remove the thread. Note • If it is not cut right on the stitching, it will not z When “APPLIQUE MATERIAL”, “APPLIQUE be finished neatly.

  • Page 167: Editing Patterns

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Editing Patterns This section describes ways to edit, adjust, and reposition patterns. Check and adjust the layout. Adjusting the layout b c d e f The pattern is normally positioned in the center of the embroidery frame. You can check the layout before starting embroidery and change the position and the size.
  • Page 168 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Starting point key Memo Press this key to move the embroidery z If you make a note of the values in the lower frame and check the embroidering position or to change the needle position part of screen when you change the size and before embroidering.

  • Page 169: Adjusting The Thread Tension

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Press (Back key) to return to the Adjusting the thread tension original screen. If embroidery fails, it is difficult to undo the thread and the fabric may be damaged. Before embroidering, use a scrap of the same fabric to check the adjustment of the thread tension, etc.

  • Page 170: Adjusting The Alternate Bobbin Case (With No Color On The Screw)

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY If this occurs, turn the slotted screw (-) clockwise, Adjusting the alternate bobbin being careful not to over-tighten the screw, approximately 30-45 degrees to increase bobbin case (with no color on the screw) tension. When using the embroidery bobbin thread provided, please be sure to choose the green marked bobbin case when performing utility stitch sewing and embroidery functions.

  • Page 171: Resewing

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Thread runs out partway Resewing through a design When the wrong upper thread color has been sewn, it can be resewn with the correct color. When the upper thread or the bobbin thread runs out while sewing, the sewing machine stops. Move the Press (“Start/Stop”...

  • Page 172: Stopping While Embroidering

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Press (Embroidery key). Stopping while embroidering If the embroidery is stopped before it is complete, check the current needle count before turning off the sewing machine. Memo z When the sewing machine is turned off, the embroidery size and layout return to the The confirmation message is displayed.
  • Page 173 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Press Press (Forward one color) to move to the beginning of the color you want to embroider. Press (Forward one stitch) to increase the needle count. is pressed continuously, it moves forward 1 — > 9 — > 30 stitches. Move forward to about 10 stitches before the total number of stitches confirmed in Restart the embroidery.

  • Page 174: Using The Memory Function

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Using the Memory Function Embroidery data precautions Observe the following precautions when using embroidery data other than that created and saved in this machine. CAUTION ● When using embroidery data other than our original patterns, the thread or needle may break when sewing with a stitch density that is too fine or when sewing three or more overlapping stitches.
  • Page 175 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ■ Precautions on Using the Computer To Create and Save Data • If the file name of embroidery data cannot be identified, for example, because the name contains special characters, the file will not be displayed. If this occurs, change the name of the file. We recommend using the 26 letters of the alphabet (uppercase and lowercase), the numbers 0 through 9, “-”, and “_”.

  • Page 176: Saving Patterns

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Select the pattern you wish to retrieve. Saving patterns Switch screens using (Previous page key) (Next page key). The embroidery patterns and the alphabet characters you have customized can be saved in the sewing machine's memory. Since the saved patterns will not be erased when the power is turned off, you can always retrieve them for embroidery.

  • Page 177: Transferring Embroidery Patterns From The Computer To Machine

    — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — The “Removable Disk”...
  • Page 178 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY Press CAUTION ● Before disconnecting the USB media, click the “Unplug or Eject Hardware” ® icon in the taskbar of Windows 2000 or the “Safely Remove Hardware” icon in ® the taskbar of Windows XP/Windows ® Vista . Then, when the removable disk can safely be removed, disconnect the The saved patterns are displayed.
  • Page 179 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Press The saved pattern is retrieved. The embroidery screen appears, and you can embroider the retrieved pattern. Adjust the pattern as desired, and then begin embroidering. Using the Memory Function 177...
  • Page 180 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² EMBROIDERY...

  • Page 181: Appendix

    APPENDIX The various maintenance and troubleshooting procedures are described in this chapter. Care and Maintenance ..................180 Cleaning the machine surface ................180 Cleaning the race .....................180 Cleaning the bobbin case .................181 Troubleshooting ....................182 Error messages ....................187 Adjusting the LCD ....................190 Operation beep ....................190 Canceling the operation beep ................191 Upgrading Your Machine’s Software Using USB Media ........192 Index ........................193...

  • Page 182: Care And Maintenance

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² APPENDIX Care and Maintenance Simple sewing machine maintenance operations are described below. Grasp both sides of the needle plate cover, and Cleaning the machine surface then slide it toward you. If the surface of the machine is dirty, lightly soak a cloth in neutral detergent, squeeze it out firmly, and then wipe the surface of the machine.

  • Page 183: Cleaning The Bobbin Case

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Insert the bobbin case so that the projection Cleaning the bobbin case on the bobbin case aligns with the spring. Thread wax and dust easily collect around the notch in the tension spring on the bobbin case, resulting in an incorrect thread tension.

  • Page 184: Troubleshooting

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² APPENDIX Troubleshooting If the machine stops operating correctly, check the following possible problems before requesting service. If the problem persists, contact your retailer or the nearest authorized service center. Symptom Probable Cause Remedy Reference The machine is not turned on. Turn on the machine.
  • Page 185 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Symptom Probable Cause Remedy Reference The upper thread was not threaded correctly (for example, the spool is not installed correctly, the spool cap is too big for the Correct the upper threading. page 29 spool being used, or the thread has come out of the needle bar thread guide).
  • Page 186 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² APPENDIX Symptom Probable Cause Remedy Reference The bobbin thread is incorrectly Correctly install the bobbin thread. page 27 installed. The bobbin is scratched or does not rotate smoothly, or has a burr Replace the bobbin. – on it. The lower thread is tangled or Remove the tangled thread and clean page 180,...
  • Page 187 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Symptom Probable Cause Remedy Reference The upper thread was not Correct the upper threading. page 29 threaded correctly. Select a thread and needle that are The combination of fabric, thread appropriate for the type of fabric page 39 and needle is not correct. being sewn.
  • Page 188 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² APPENDIX Symptom Probable Cause Remedy Reference Contact your retailer or the nearest The sewing lamp is damaged. – The sewing lamp authorized service center. does not come on. The machine is not turned on. Turn on the machine. page 17 Nothing appears The brightness of the LCD is either Adjust the brightness of the LCD.

  • Page 189: Error Messages

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — Error messages When erroneous operations are performed messages and advice on operation will be displayed on the LCD.
  • Page 190 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² APPENDIX Error Message Probable Cause The buttonhole, bar tack or darning stitch was selected and the “Start/ Stop” button was pressed while the buttonhole lever is raised. The “Start/Stop” button, “Reverse/Reinforcement Stitch” button or “Thread Cutter” button was pressed while the presser foot was raised. You tried to combine more than 70 decorative stitches, satin stitches, cross stitches or combined utility stitches.
  • Page 191 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Error Message Probable Cause You tried to set a number of characters that will not fit within the frame. The upper thread has become tangled around the bobbin case, and the needle is bent and hitting the needle plate, etc., so the sewing machine stops (refer to page 182).

  • Page 192: Adjusting The Lcd

    — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — APPENDIX Adjusting the LCD Operation beep...

  • Page 193: Canceling The Operation Beep

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² Press (Back key). Canceling the operation beep When the sewing machine is purchased, it is set to beep each time an operation panel key is pressed. This setting can be changed so that the machine does not beep. Turn on the sewing machine. The initial screen appears again.

  • Page 194: Upgrading Your Machine's Software Using Usb Media

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² APPENDIX Upgrading Your Machine’s Software Using USB Media You can use USB media and a computer to download software upgrades for your sewing machine. When an upgrade program is available on our website at “www.babylock.com”, please download the file(s) following the instructions on the website and steps listed below. Note z When using USB media to upgrade the software, check that no data other than the upgrade file is saved on the USB media being used before starting to upgrade.

  • Page 195: Index

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² ,QGH[ Numerics character storage ............174 characters, retrieving ...........174 1/4 inch quilting foot ..........9 checking needle ............40 1/4 inch quilting foot with guide ........9 cleaning bobbin case ..........180 cleaning brush ..............9 cleaning machine surface ...........180 combining patterns .............130 accessories ..............8 concealed seams ............94 adjustable zipper/piping foot ........
  • Page 196 ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² APPENDIX fabric positioning ............50 needle bar thread guide ..........11 fagoting ...............119 needle condition ............40 fagoting stitch .............118 needle plate ..............11 feed dog position switch ..........11 needle plate cover ............11 feed dogs ..............11 needle position button ..........12 flat bed attachment ............10 needle position, changing ..........84 foot controller ............

  • Page 197: Index 195

    ²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²² stitch length adjustment ..........57 stitch selection ..........49 quick reference guide .............9 stitch settings ..............68 quilt stitching ..............103 stitch type selection screen ...........18 quilting ...............107 stitch types ..............75 quilting foot ..............9 stitch width adjustment ..........56 quilting guide ............9 stopping embroidering ..........170 quilting stippling ............103 straight stitch ...........68...
  • Page 200 English 885-U03 XE6534-001 Printed in China...

Table of Contents

Save PDF
