Summary of Contents for Axminster RDC100H

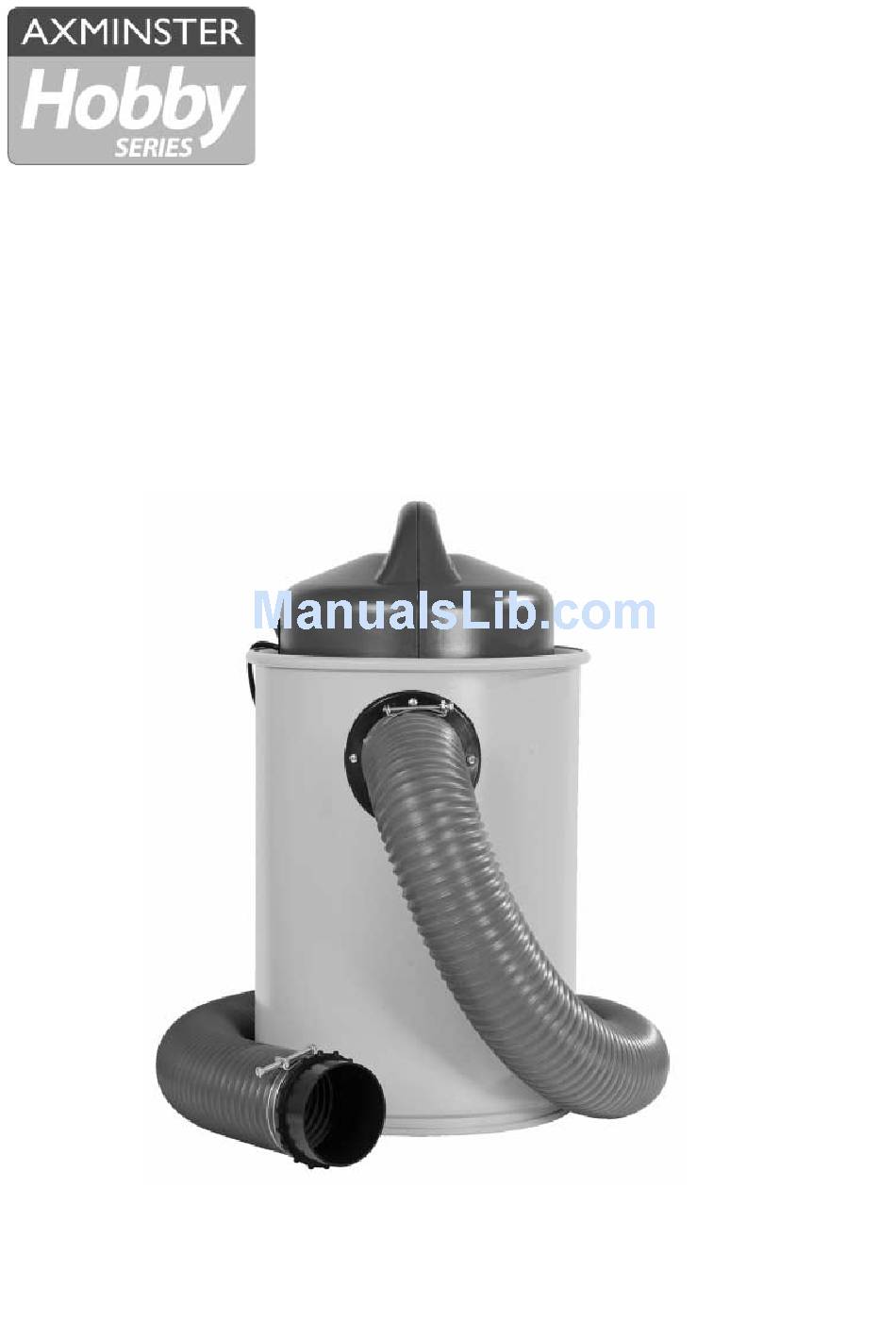

- Page 1 Code 501269 RDC100H Vacuum Extractor Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH axminster.co.uk...
-
Page 2: Declaration Of Conformity
EN 60335-2-69:2003+A1:2004 Town, Jiaozhou City,Qingdao, Shandong, China EN 60335- declares that this product 1:2002+A1:2004+A11:2004+A2:2006+A12:2006 EN 50366:2003+A1:2006 Model number RDC100H Warning The symbols below advise that you follow the correct safety procedures when using this machine. Fully read manual Ear protection... -
Page 3: What's In The Box
What’s in the Box Model Number RDC100H 1 No. Vacuum Extractor with filter and micron bag fitted. 1 No. Flexible Hose 1 No. Flexible Hose Clamps 1 No. 100mm Adaptor Moulding 4 No. Micron Filter Bags Code 210091 1 No. Instruction Manual Having unpacked your vacuum extractor and its accessories please dispose of any unwanted packaging properly. -
Page 4: General Instructions For 230V Machines
General Instructions for 230V Machines Good Working Practices/Safety The following suggestions will enable you to observe good working practices, keep yourself and fellow workers safe and maintain your tools and equipment in good working order. KEEP TOOLS AND EQUIPMENT OUT WARNING!! OF THE REACH OF YOUNG CHILDREN Primary Precautions... -
Page 5: Specific Safety For Dust Extractors
Specific Safety for Dust Extractors DO NOT use this machine as a vacuum cleaner, try to keep the waste medium to wood by-products. Do not uplift workshop floor debris (stones, nails, screws, paper etc., etc). Be aware that wood dust is an explosive medium. DO NOT allow any ‘naked light’... -
Page 6: Specification
Specification Model RDC100H Product Code 501269 Rating Hobby Power 1,100W Air Flow 180m³/hr Noise Level 85dB(A) Particle Size 1 micron Hose Diameter 100mm Overall L x W x H 400 x 400 x 700mm Weight 10kg Assembly Your Vacuum Extractor is fully assembled, except for the Flexible Hose and 100mm Adaptor Moulding, you will find all parts inside the vacuum extractor, by removing the vacuum motor head. - Page 7 Assembly Dust extraction out Locate one of the two hose clamps (C), Lift the motor head assembly and remove place over one of the ends of the all the parts from inside the drum, if you hose (B) and push the hose over the haven’t already done so.
-
Page 8: Workshop Setup
Workshop Setup This machine will cope with waste shavings from most bench-top machines and the smaller floor standing machines, especially bandsaws, circular saws, bench top surface planers and hand-held power tools (with the accessory power tool hose kit), (code 718085). Below are two examples showing the vacuum extractor connected to a hand-held sander and floor standing bandsaw. - Page 9 Workshop Setup 63mm Dust Extraction Kit (Code 410063) Another option is a ducting system package complete with elbows, blast gates and adaptors for connecting up your machines to a workshop extractor. Simply fix a horizontal pipe to the wall or ceiling with the clips supplied and then take branch pipes to exactly where the extraction points are needed in the workshop, using the T junctions and 63mm flexible hose.
-
Page 10: Illustration And Parts Description
Illustration and Parts Description Motor head clamp Carryng handle Filter and micron bag Motor assembly Hose Drum 100mm Adaptor moulding... - Page 11 Illustration and Parts Description ON/OFF Switch...
- Page 12 Changing the Micron Filter Bag DISCONNECT THE VACUUM EXTRACTOR FROM THE MAINS SUPPLY Remove the motor head by Remove the motor head clamping unlatching the motor clamping ring (A). ring (A) and place safely aside. Micron bag and filter assembly Lift the motor head assembly Remove the micron bag and filter from the away from the drum.
-
Page 13: Maintenance
Changing the Micron Filter Bag Replace the micron bag and filter assembly, push firmly so the assembly is flush up against the motor casing. Lower the motor head assembly back onto the drum, replace the motor clamping ring and lock it, securing it in position. Connect the Vacuum Extractor to the mains and continue with operation. -
Page 14: Parts Breakdown
Parts Breakdown... -
Page 15: Parts List
Parts List ITEM NAME Shaving Drum Container Motor Head Clamping Ring Cartridge Filter Motor Screw ST5.5X15 Container Lid Screw M5xl0 Long Sponge Round Sponge Right Motor Casing Screw M5x45 Screw M5x25 M5 Screw (black) Left Motor Casing Cable On/Off Switch Cable Gland Ø5 Spring Washer Ø5 Washer... - Page 16 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
