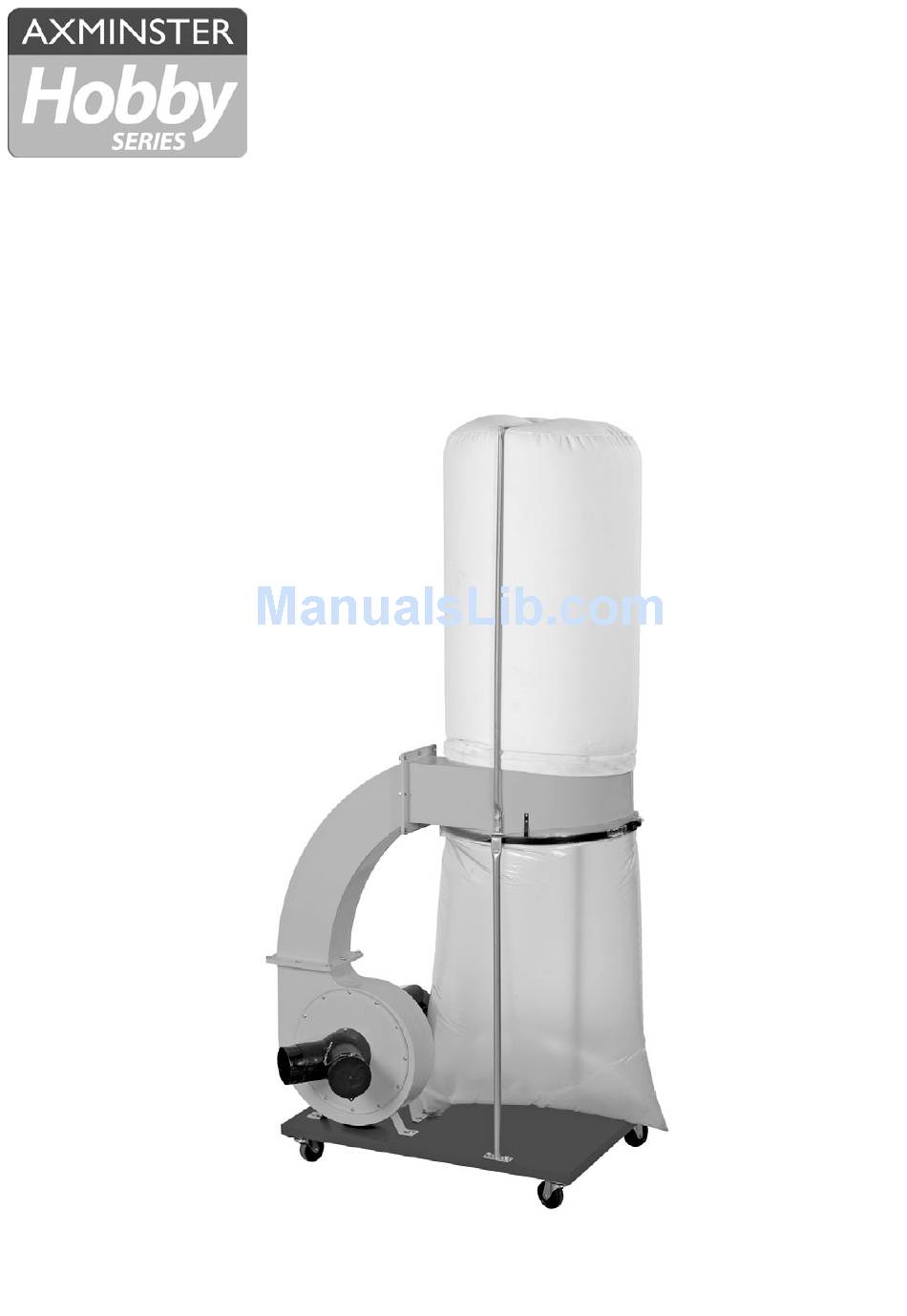

- Page 1 Code 501264 FM300BC Dust Extractor Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH axminster.co.uk...
-
Page 3: Table Of Contents
CONTENTS TECHNICAL DATA……………………………………………………………….1 UNPACKING AND CHECKING CONTENTS………………………………….2 ASSEMBLY………………………………………………………………………..3 SAFETY RULES………………………………………………………………….8 WIRING DIAGRAM…………………………………………………………….…9 PARTS DIAGRAM FOR FM300B……………………………………………….10 PARTS LIST FOR FM300B………………………………………………………11... -
Page 4: Technical Data
FM300B TECHNICAL DATA Motor power (Watt) 1500 Inlet diameter (mm) 1-125/2-100 Fan diameter (mm) Bag capacity (cubic meter) 0.15 Collection capacity (CFM) 1490 Overall size (LWH)(MM) 850x560x1860... -
Page 5: Unpacking And Checking Contents
UNPACKING AND CHECKING CONTENTS Unpack carton, check machine, to see parts listed below: A. STEEL TUBE FAN HOUSING & FAN/MOTOR ASSEMBLY C. COLLECTOR D. BASE PLATE E. COLLECTOR BAG SUPPORT F. INLET G.COLLECTOR BAG H. PACKING I. FOUR CASTERS J.HANDLE K. -
Page 6: Assembly
ASSEMBLY TO ASSEMBLY, FIRST PLACE THE BASE PLATE UPSIDE DOWN AND ATTACH THE FOUR CASTERS TO THE HOLES PROVIDED AND TOGHTEN WITH THE WRENCH. FIG.1 PUT THE FAN HOUSING & FAN/MOTOR ASSEMBLY IN PLACE, SECURE IT TO THE BASE PLATE USING THE SCREWS AND WASHERS PROVIDED AS SHOWN IN FIG.2. -
Page 11: Safety Rules
SAFETY RULES 1. Read and become familiar with the entire operating manual. 2.Keep guards and cover in place and in working order. 3.Wear eye protection at all times. Use safety glasses with side shields or safety goggles, meeting the national safety standards, while operating this machine. -
Page 12: Wiring Diagram
WIRING DIAGRAM (400V/50Hz, 3 phase) WIRING DIAGRAM (230V/50Hz, 1 phase) - Page 16 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
