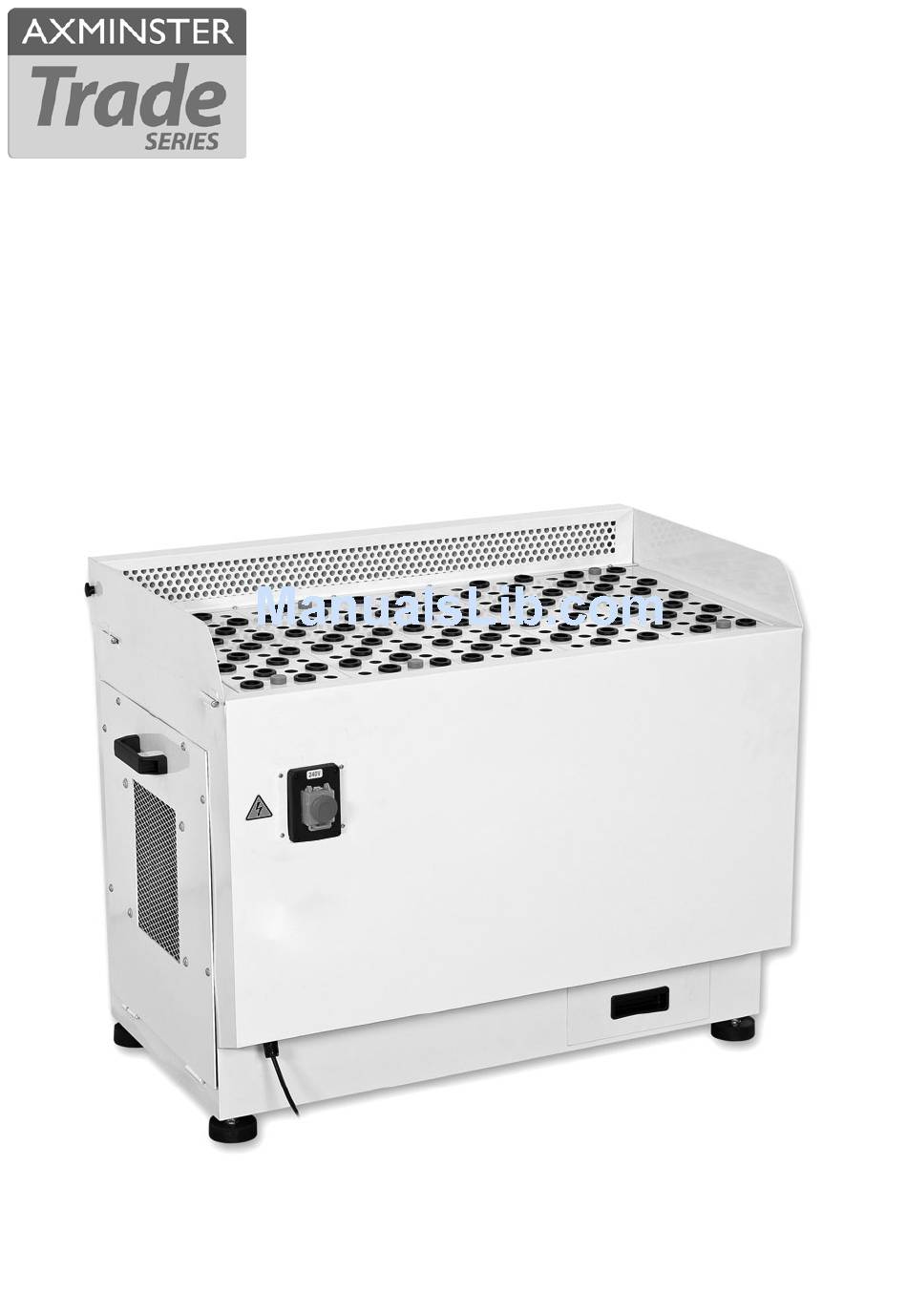

- Page 1 Code: 501227 FT-1000 Downdraft Table Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH www.axminster.co.uk...
-
Page 2: Table Of Contents
CONTENTS: IMPORTANT SAFETY RULES -------------------------------------------------------------- IMPORTANT SAFETY RULES FOR DUST COLLECTORS ------------------------- GROUNDING INSTRUCTIONS ------------------------------------------------------------- SPECIFICATIONS ------------------------------------------------------------------------------ CONTENTS OF PACKAGE ------------------------------------------------------------------ CONTENTS OF PARTS BAG ---------------------------------------------------------------- ASSEMBLY INSTRUCTION ------------------------------------------------------------------ EXPLODED DIAGRAM ------------------------------------------------------------------------ PARTS LIST -------------------------------------------------------------------------------------- • WARNING! Please read this manual carefully before assembly, testing and operating. -
Page 3: Important Safety Rules
IMPORTANT SAFETY RULES Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. -
Page 4: Important Safety Rules For Dust Collectors
IMPORTANT SAFETY RULES FOR DUST COLLECTORS WARNING: 10. DO NOT pull the dust collector by the power cord. Basic precautions should always be followed when using your dust collector. To reduce the NEVER allow the power cord to come in contact risk of injury, electrical shock or fire, comply with the with sharp edges, hot surfaces, oil or grease. -
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment-ground conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 6: Specifications
SPECIFICATIONS: Motor---------------------------------------------------------------------------------------------------------------1/2 HP AMP------------------------------------------------------------------------------------------------------------------ 6 A Motor Speed--------------------------------------------------------------------------------------------------- 1650 RPM Suction Capacity---------------------------------------------------------------------------------------------- 1790 CFM Impeller Size---------------------------------------------------------------------------------------------------- 9” x 7” Switch---------------------------------------------------------------------------------------------------- On / Off Switch Overall Dimensions of Unit------------------------------------------------------------------- 1050 x 600 x 850 N.W. ---------------------------------------------------------------------------------------------------------------- 70 KGS G.W. ---------------------------------------------------------------------------------------------------------------- 81 KGS CUFT -------------------------------------------------------------------------------------------------------------- 21.7’... -
Page 7: Contents Of Package
CONTENTS OF PACKAGE FT-1000: Description Q’TY Part List NO. Description Q’TY Part List NO. Main Housing NO.40 Drawer NO.34 Sucking Head Set NO.17 Filter Net NO.11 Side Cover NO.19.41 Rubber NO.14 Handle NO.9 Foot Pad NO.35~39 Sucking Board NO.12... -
Page 8: Contents Of Parts Bag
CONTENTS OF PARTS BAG FT-1000: Description Specification Q’TY Part List No. Phillips Head Screw 3/16”x3/8” NO.16 Stopper NO.13 Stopper Nut NO.15 Triangular Knob 1/4”x1/2” NO.18 Flat Head Screw 1/4”x5/8” NO.8 Foot Pad NO.35~39... -
Page 9: Assembly Instruction
ASSEMBLY INSTRUCTION: STEP1-1: Place the Sucking Head Set (NO.17) on the Main Housing (NO.40) and tight with Phillips Head Screws. (NO.16) See (FIG.1) STEP1-2: Place the Pad & Accessory (NO.35~NO.39) and fixing the Pad & Accessory (NO.35~NO.39) on the machine bottom as shown in FIG.1-2. -
Page 10: Exploded Diagram
EXPLODED DIAGRAM FT-1000:... -
Page 11: Parts List
FT-1000 Part List: Description Specification Q’TY 1/4” Lock Nut Motor Set 1/4”x25 Washer 9”x7” Impeller Packing 1/4”x1/2” Flange Bolts 1/4”x5/8” Flat Head Screw Handle Outlet Cover Filter Net Sucking Board Stopper Rubber Stopper Nut 3/16”x3/8” Phillips Head Screw Sucking Head Set 1/4”x1/2”... - Page 12 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
