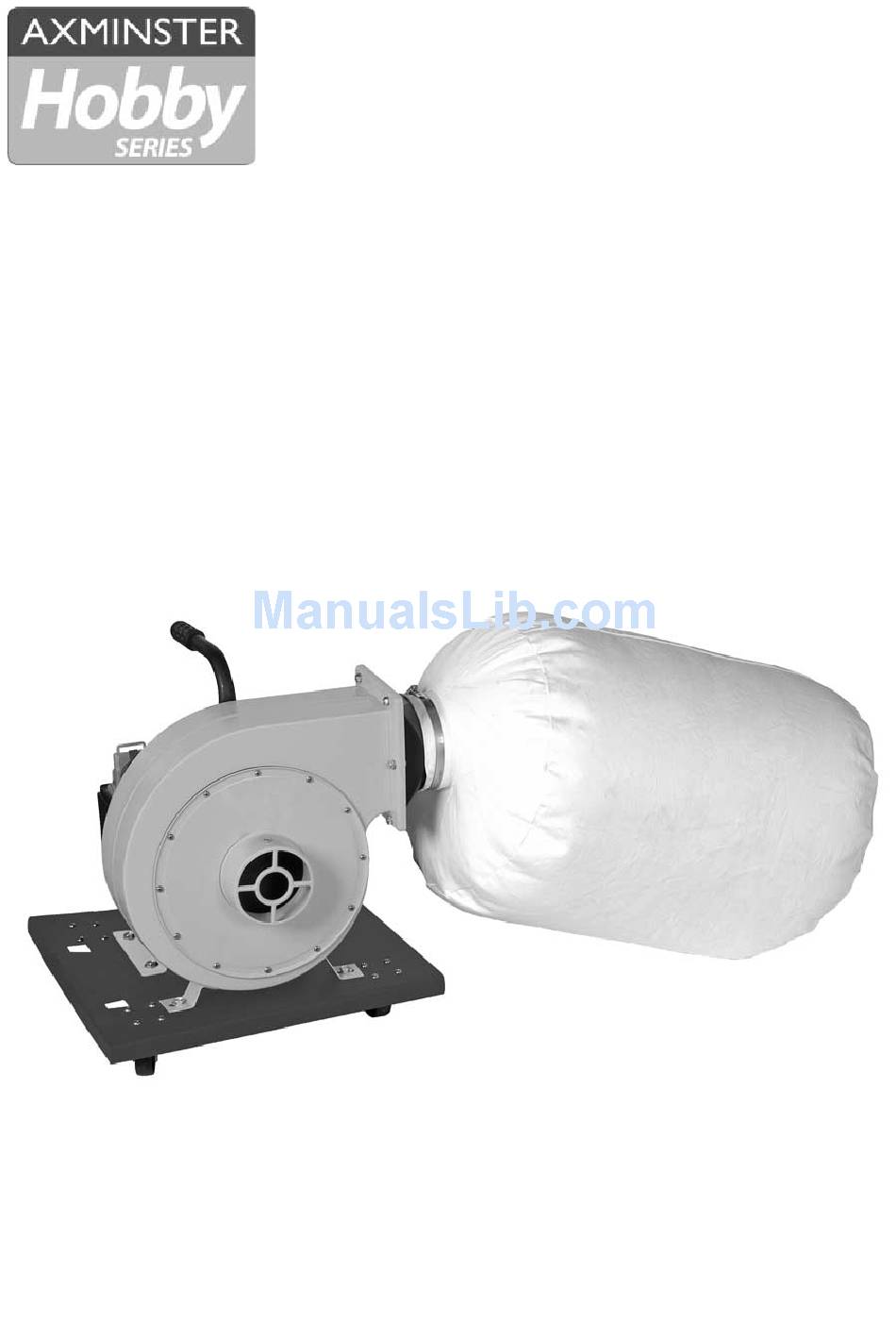

- Page 1 Code 501262 AWDE5002 Dust Extractor Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH axminster.co.uk...
-
Page 2: Table Of Contents
Index of Contents Page No Index of Contents Declaration of Conformity What’s in the Box General Instructions for 230V Machines Specific Safety for Dust Extractors Specification Assembly Identification and Parts Description Illustration and Parts Description 09-10-11 Routine Maintenance Parts Breakdown Parts List Notes Declaration of Conformity... -
Page 3: What's In The Box
What’s in the Box Model Number: FM230 1 No. Dust Extractor, ready mounted on the base plate 1 No. Dust Bag 1 No. Handle 1 No. Outlet Duct and Gasket 1 No. Inlet Grill 2 No. Wall Mounting Brackets 1 No. Jubilee Clip 4 No. -
Page 4: General Instructions For 230V Machines
General Instructions for 230V Machines Good Working Practices/Safety The following suggestions will enable you to observe good working practices, keep yourself and fellow workers safe and maintain your tools and equipment in good working order. KEEP TOOLS AND EQUIPMENT OUT WARNING!! OF THE REACH OF YOUNG CHILDREN Mains Powered Tools and Machines... -
Page 5: Specific Safety For Dust Extractors
Specific Safety for Dust Extractors DO NOT use this machine as a vacuum cleaner, and a very firm feel means that the bag is try to keep the waste medium to wood by clogged and the air is having difficulty passing products. -
Page 6: Specification
Specification Model AWDE5002 Product Code 501262 Rating Hobby Power 0.75kW (230V, 1ph) Air Flow 840m³/hr @ 100mm Hose Diameter 100mm Bag Capacity 37 litres Overall L x W x H 380 x 1,100 x 410mm Weight 22kg... -
Page 7: Assembly
Having unpacked your AWDE5002 machine and all its components, please check against the ‘What’s in the box’ on page 4. If any parts are missing please contact our sales personnel straight away using the numbers listed in the catalogue. -
Page 8: Identification And Parts Description
Identification and Parts Description Base plate Pressed steel plate that carries the fan unit and the motor bolted to it. It (See fig 2) has numerous holes bored or cut into it, these are to mount the castor wheels (if you elect to make the machine movable) or the cutout slots for the wall mounting brackets if you elect to have it wall mounted. - Page 9 Illustration and Parts Description Fig 1a Fig 1b Emergency stop NVR Switch Switch shroud Outlet duct Handle Dust bag Fig 1 Fan housing Inlet duct Access plate Base plate...
- Page 10 Illustration and Parts Description Jubilee clip Handle Fig 2 Dust bag Emergency stop Switch shroud Power cable Motor Typ. 4 screws Base plate Fig 2a Fig 2b Typ. 4 Castor wheels Cutout slots for the wall mounting brackets...
- Page 11 Illustration and Parts Description Fig 3 172mm Wall mounting bracket 100mm hosing...
-
Page 12: Routine Maintenance
Routine Maintenance DISCONNECT THE MACHINE FROM THE MAINS SUPPLY Weekly •Check the inlet and outlet ducts, remove any accumulated debris. •Check the inlet hoses for splits and cracks, repair as necessary. •Check the bag for wear and tear, especially around the neck at the jubilee clip. If wear or fraying is occurring, move the position of the jubilee clip slightly. -
Page 13: Parts Breakdown
Parts Breakdown... -
Page 14: Parts List
Parts List... -
Page 15: Notes
Notes... - Page 16 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
