Summary of Contents for Axminster WORKSHOP AW153E

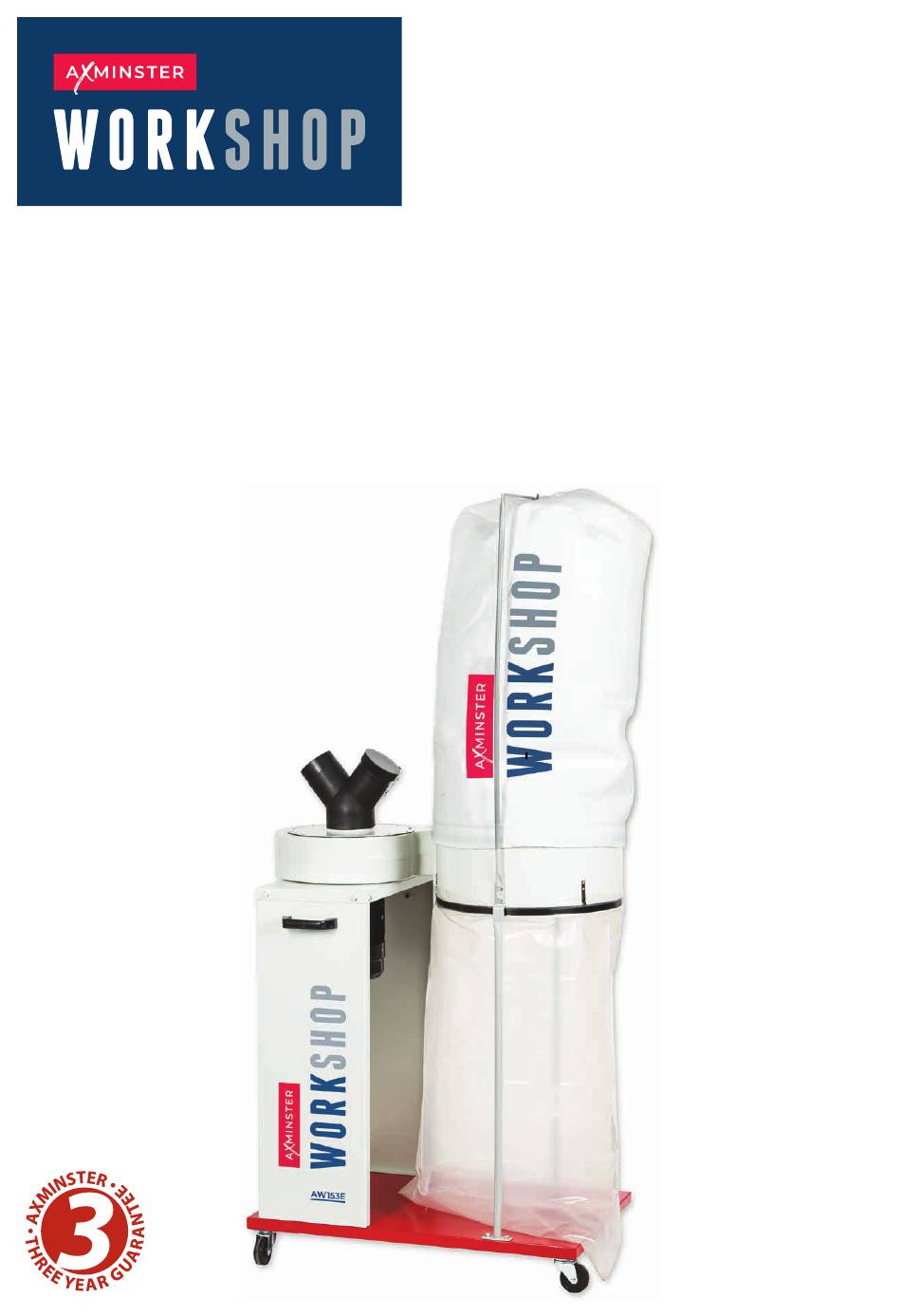

- Page 1 Code 107697 Original Instructions AW153E 2.0HP Dust Extractor AT&M: 10/02/2022 BOOK VERSION: 2...
-
Page 2: Eu Declaration Of Conformity
Maintenance Exploded Diagrams/Lists 17-18 Wiring Diagram EU Declaration of Conformity Cert No: FM300, FM300-L1 EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC EN 60335-1:2012+A11 06/42/EC - Annex I/05.2006... -
Page 3: What's Included
What’s Included Quantity Item Part Model Number AW153E Extractor Assembly Extractor Support Panels Extractor Housing Upright Supports Filter Bag Hanger Bar Extractor Housing Cavity Base Castor Wheels Dome Head Screws Inlet Manifold Dust Bag 30 Micron Filter Bag Filter and Bag Retaining Belts Bolts, Flat Washers &... -
Page 4: Optional Accessories
What’s Included NOTE: Please read the Instruction Manual prior to using There is also a detailed description of the parts of your your new machine. As well as the operating procedures Extractor, which will enable you to become familiar with for your new machine, there are numerous hints and tips terminology we will use in this manual. -
Page 5: General Instructions For 230V Machines

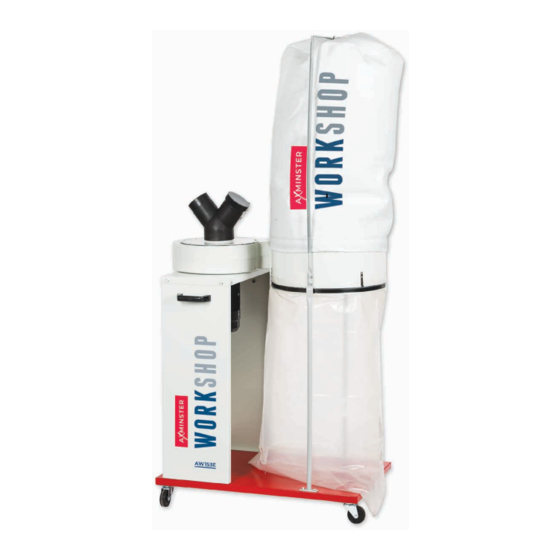

Introduction The AW153E is the largest extractor in our Craft range, full bag easy. The extractor’s filtration performance can be which with its 1.5kW motor, large capacity collection bag upgraded with the addition of the cartridge filter (700345). and twin 100mm hose inlets, will handle most single work- This has a large surface area of filter material, so does not shop machines. -
Page 6: Specific Safety For Dust Extractors
Specific Safety for Dust Extractors DO NOT use this machine as a vacuum cleaner, try to keep The safety guard grill of the inlet duct can be particularly the waste medium to wood by-products. irksome in this way, as long strand shavings etc., can wrap around the grill fret. - Page 7 Assembly Continues Over...
- Page 8 Assembly Secure the extractor (A) to the support panels (B) Locate the extractor housing cavity (E), position the outlet housing over the extractor’s outlet. Place a bolt (M) through...
- Page 9 Assembly the centre mounting hole and secure with a flat washer/nut. This will support the extractor housing (E) while you secure the remaining bolt/washers/nuts, see step 14-15-16-17-18. Extractor housing (E) being held by one bolt Mount the remaining bolts and tighten Continues Over...
- Page 10 Assembly Hook the micro filter bag (K) over the hanger bar Secure the inlet manifold Tuck the filter bag around the extractor housing cavity Filter bag belt pocket Secure the micro filter bag...
- Page 11 Assembly Optional Filter Cartridge Code 700345 • Remove the retaining belt ( L) and remove the 30 micron filter bag (K), place to one side. Slip the dust bag (J) under the Clips Wrap the retaining belt around the extractor housing (E) and secure Remove the the dust bag (J) in place...
- Page 12 Assembly Wrap the retaining belt around the filter cartridge (N) and secure • Locate the filter cartridge (N) and lower the assembly down over the extractor’s housing cavity and secure using the retaining belt (L).
-
Page 13: Illustration And Parts Description
Illustration and Parts Description 30 Micron filter bag NVR ON/OFF control switch x2 100mm Inlet manifold Filter bag hanger bar Extractor assembly Handle Dust collecting bag Extractor support panel Extractor housing upright support Base Castor wheel Extractor Set Up 1... - Page 14 Illustration and Parts Description Motor Filter and bag retaining belts Shaker paddle Filter cartridge Extractor Set Up 2 Extractor assembly with optional filter cartridge...
- Page 15 Operating Instructions Testing the Extractor Reduced Suction Performance Connect the extraction hose/s to the extractor’s inlet. After a period of time dust, sawdust and shavings can build up causing blockages and reduced suction performance. Carry out the following checks to keep WARNING! MAKE SURE CHILDREN your extractor working at peak performance.
-
Page 16: Maintenance
Maintenance DISCONNECT THE POWER SUPPLY FROM THE MAINS! ALWAYS WEAR A DUST MASK AND EYE PROTECTION. Daily • Empty the collection bag before it overflows, wear a dust mask whilst removing and emptying the bag. Weekly • Check the inlet and outlet duct and remove any accumulated sawdust. - Page 17 Exploded Diagrams/Lists...
- Page 18 Exploded Diagrams/Lists PART MOTOR DESCRIPTION HANDLE INLET-CONNECTOR COVER HEXAGON SOCKET INLET-CONNECTOR SCREW (LEFT THREAD) M8 SLOTTED PAN HEAD SUPPORT PLATE SCREW M5 SWITCH SLOTTED PAN HEAD SLOTTED PAN HEAD SCREW M6 SELF-SETTING SCREW ST4.2 INLET SLOTTED PAN HEAD SEAL RING SCREW M4 HEXAGON SOCKET SWITCH BOX...
-
Page 19: Wiring Diagram
Wiring Diagram... - Page 20 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
