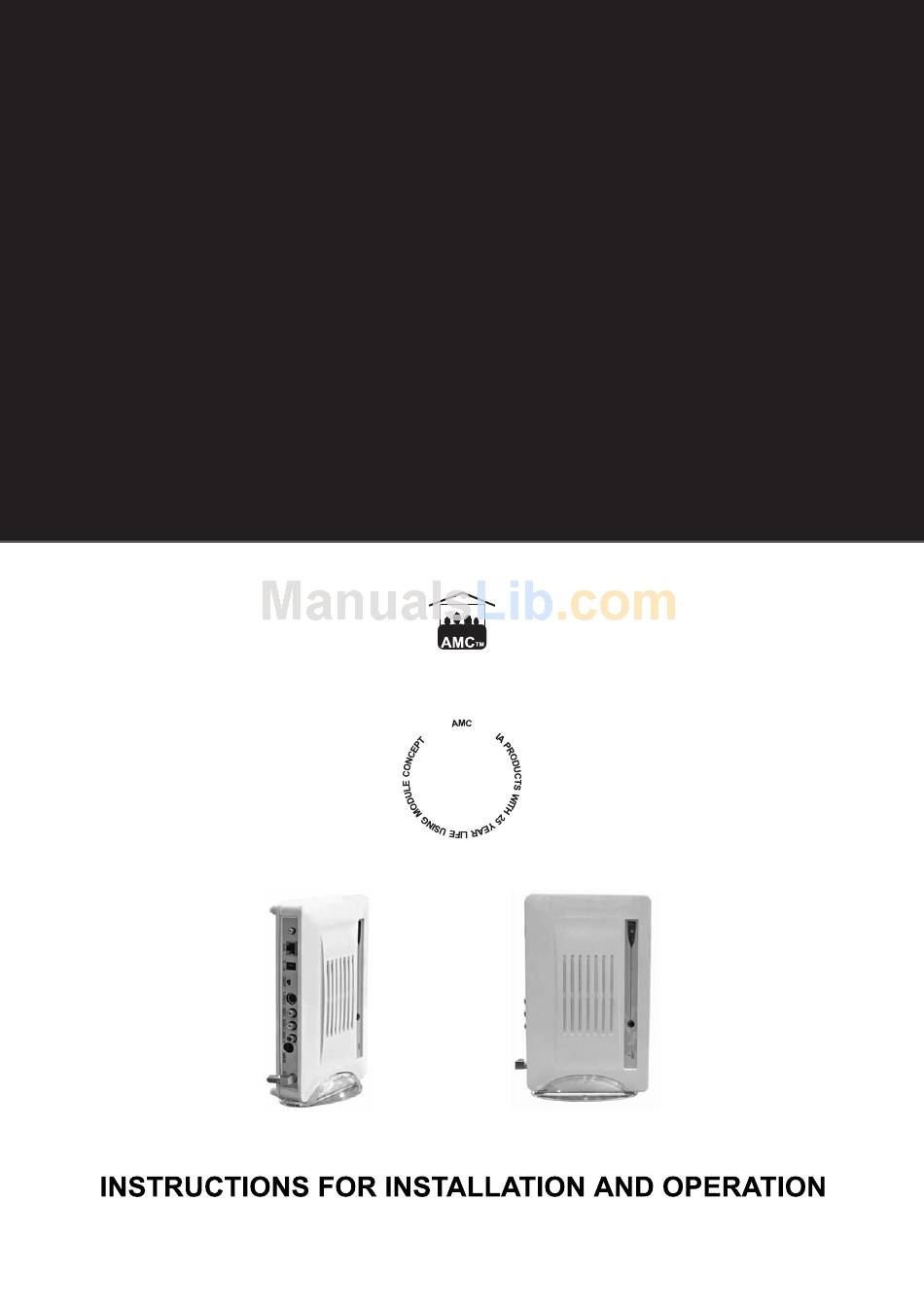

- Page 1 AMC TR1a WiFi Wireless Transmitter with Video On Demand and Broadcasting...
- Page 4 CAUTIONS AND FEATURE LIST FEATURES OF THE AMC MODEL TR1a * with Video on Demand and Broadcasting features. * Wireless IEEE 802.11a 5 GHz WiFi configuration. * Internal NTSC / PAL or SECAM / PAL dual band TV Tuner. * Multiple audio and video inputs supported.
- Page 5 REAR & FRONT SIDE PANELS / FRONT PANEL REAR & FRONT SIDE PANELS 1. "RJ-45" 2. "DC 12V" power input connector RCA connector (Red) 3. "OFF/ON" Power Switch 4. "S VIDEO" input connector 3.5mm mini connector(Video, L, R) 5. "AV1" Composite Video inpu 6.
-
Page 6: Front Panel
FRONT PANEL 1. LED 1 (Orange) Wireless LED 2. LED 2 (Green) Power LED 3. LED 3 (Red) Tuner Status 4. RESET... - Page 7 FREAR SIDE PANEL 1. RJ-45 The RJ45 is for updating firmware of T R 1 a o r h o o k i n g T R 1 a t o E t h e r n e t Network for linking TR1a to all other equipment with IP addresses linked to the Ethernet Network.
-
Page 8: Front Side Panel
FRONT SIDE PANEL 1. Connector for IR Blaster The 3.5mm mini connector is for IR B l a s t e r O u t p u t . I R B l a s t e r s c a n b e hooked up to the connector. -
Page 9: Remote Control
REMOTE CONTROL (for using with receiving units like AMC i-M15a to control TR1a through IR receiver on receiving units and WiFi) - Page 10 Function of each button on Remote Control Handset: 1. Power On/Off 2. Rescan for receiver to re-scan and locate all available TR1a select one preferable TR1a. 3. Video Select AV1, AV2 or S VIDEO input of the TR1a selected 4. TV Select Cable/Broadcast TV input of the TR1a selected 5.
- Page 11 19. TV Scan Auto-detect channels with TV programs 20. Wireless Wireless channel selection 21. Bitrate Low, Mid, High 22. Enter Function confirm...
-
Page 12: Setup And Installation
SETUP AND INSTALLATION Installing the TR1a For the best reception of the wireless signal to all areas of your house, it is best to install the TR1a near the center of your house. TR1a setup overview Connecting source devices to TR1a... - Page 13 4. You now can switch the OFF/ON slide switch to ON position and start to enjoy the programs from the TR1a you just setup through receivers like AMC i-M15a, computers or other corresponding receivers. 5. The power LED (LED2) should be lighted once the OFF/ON slide switch switched to...
- Page 14 INSTALLING THE CORRESPONDING RECEIVERS LIKE i-M15a (here we use i-M15a for the installing procedures ) 1. Turn on TR1a power LED will be lighted 2. Turn i-M15a (or other corresponding receivers) battery power ON by pressing the POWER (Battery Power) button on top of i-M15a for 5 seconds. Once i-M15a battery power turning ON i-M15a will be under Standby mode.
- Page 15 b. Press TV SCAN button on the remote and choose your local TV system by pressing "TV SCAN" button in sequence. c. After choosing your TV system, press ENTER on the remote, the TV Tuner in TR1a will automatically scan and save all available channels. d.
- Page 16 Video On Demand and Broadcasting...
-
Page 17: Specifications
SPECIFICATIONS Wireless ..........IEEE 802.11a 5 GHz Video Encoder . -
Page 18: Safety Instruction
National Fire Protection Association (Batterymarch Park, Quincy. MA 02269). Antenna Lead In Wire Antenna Ground Discharge Clamp Unit (NEC Section 810.20) Grounding Conductors (NEC Section 810.21) Ground Clamps Power Service Grounding Electrode System (NEC Art 250 Part H) AMC 21-3004... - Page 20 WELTRONICS CORP. LONDON/L.A. AMC Web: http://www.amchome.com PN: 21R-4210...
